Form P-MAPS III&IV, PN 262958R5, Page 38

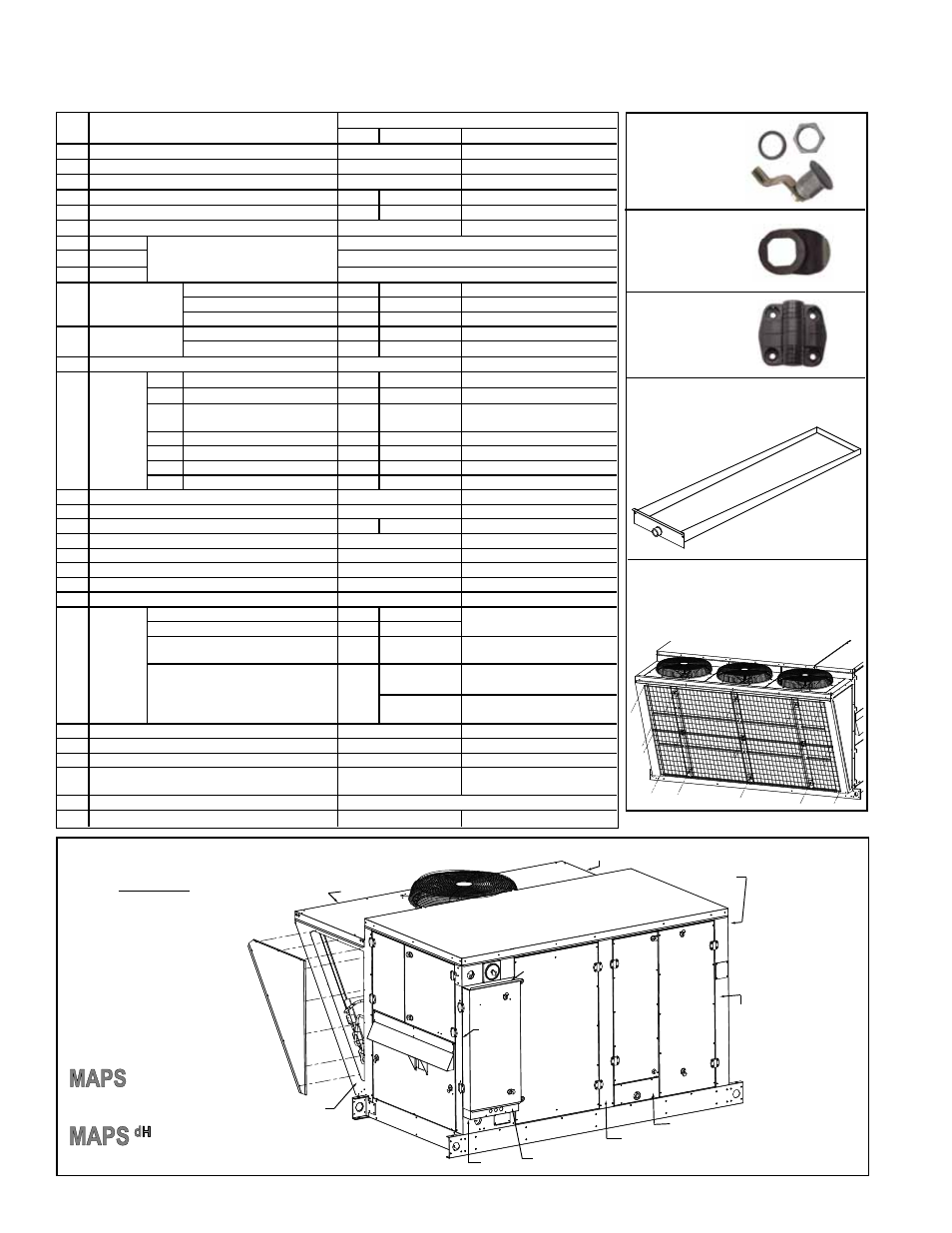

External Cabinet Parts
Cabinet A, Cabinet B, and Cabinet C
Code Description
Cabinet Size
A B C
340 Filter Access Door Assy 256683 254222
341 Coil Access Door Assy 256686 254220
342 Blower Door Assembly 204503 208113
343 High Voltage Control Door Assy 204505 204506 (2) 208118
344 Compressor Door Assembly 204507 204508 208117
345 Low Voltage Control Door Assy 257232 257230
346 Latch Assy On all doors listed above. 346 & 347
are part of Code 349A on A&B; 346,
347, & 348 are part of 349A on C.
204469
347 Latch Pull 204470
348 Hinge 158800
349A “Heat” Section
Access Panel
Gas Heat Panel w/Intake 204509 257212 --
Gas Heat Access (hinged) -- -- Left - 208116; Right - 258376
Electric Heat or No Heat 205123 205124 258379
349B Combustion Air
Intake Panel
Gas Heat -- -- 222589
Electric Heat or No Heat -- -- 208397
350 Condenser Access Panel 256163 257767
351 Top
Panels
351 One-piece Top Panel 258443
351A Blower Section -- 256719 --
351B Compressor & High Voltage
Compartments
-- 256721 --
351C Coil & Filter Sections -- 256723 --
351D Side -- -- 254224
351E Front -- -- 255129
351F Left -- -- 254225
352 Center Post Cover 256678 254219
353 Drain Cover 256680 255131
354 Drain Pan Assembly 256793 256792 255073
355 Rear Corner Cover 256291 254218
356 Front Corner Cover 256287 266006
357 Field Connection Panel 257789 208023
358 Control Door Frame Top & Bottom (2) 257791 (2) 208022
359 Control Door Frame Sides (2) 257793 (2) 208021
360
Inlet End
Panel
Assembly
outside air/no exhaust, Opts AR1, AR8 256708 256709
255397
outside & return air mod dmprs, AR25 256710 256711
outside air with or without return air
w/exhaust, Opts AR2D, AR2G, AR2H 256712
256713 255396
with energy recovery Opt ERM
ERMA
with
1 HP
261609
ERMB w/1.5
HP 261301
ERMC with 3HP motor &
3500-5000 CFM - 260992
ERMB w/3 HP
261355
ERMC with 3HP or 5 HP mtr &
5001-8000 CFM - 260993
361 Condenser End Plate (access panel end) 256106 255123
362 Condenser Top Horizontal Support Assy 258431 256118
363 Condenser End Plate (solid end) 256107 255124
364 Vertical Coil Support (See illustration, page 18.)
(3) 261126 (replaced
256104 effective 2/2011)
(3) 255120
365 Condenser Top See Code 125, pages 18 - 23.
366 Condenser Guard (Option AZ11) 258801 257189
A limited number of cabinet parts are listed. If additional replacement parts are
needed, contact your Reznor ® Distributor.
Code 346 -
Latch
Assembly,
P/N 204469
Code 347 -
Latch Pull for
Code 346,
P/N 204470
Code 348 -
Hinge,
P/N 158800
Code 354 - Drain Pan Assembly
(removable for cleaning)
340
341
342
345
343
344
349A
351
350
352
356 357
353/354
355
358
359
360
361
362
363
External Cabinet
Parts - Cabinet A
(Gas Heat
illustrated)
Code 366 - Hail Guard, Option
AZ11 - Available on all Sizes
(C Cabinet illustrated)
MAPS ® Logo
Labels
®
P/N 234657
® ™
P/N 234659
