Form I-LDAP, P/N 207733R6, Page 8
4.0 Clearances and Dimensions (cont’d)
4.3 Dimensions - Models LDAP 800 and LDAP 1200
F
RONT
V
IEW
B
OTTOM
V
IEW
R
IGHT
S
IDE
V
IEW
T
OP
V
IEW
Size 800 - 46” (1168mm)
Size 1200 - 80” (2032mm)
Size 800 - 69” (1753mm);
Size 1200 - 103-3/4” (2635mm)
Hanger Locations
1/2-13 Female Thread
11-7/8”
(302mm)
34-3/4” (883mm) 34-3/4” (883mm) 17-1/8”
(435mm)
8” Flue Outlet
7/8” (22mm)
14-7/8”
(378mm)
28-1/8”
(714mm)
Air
Destratification
FanControl
43-1/2”
(1105mm)
46”
(1166mm)
1-5/8” (41mm) 12”
(305mm)
9-7/8”
(251mm)
5” (127mm)
2-5/8”
67mm)
13-1/8”
(333mm)
38”
(965mm)
53”
(1346mm)
13-3/4” (349mm)
1-1/4” (32mm)
Line Voltage
Connection
Disconnect
Switch
1-1/4” Gas
Connection
Flue Collection Box Assembly
Thermostat
Connection
Thermostat
Connection
Thermostat
Connection
5-5/8”
(143mm)
3-1/4” (83mm)
11-3/4”
(298mm)
11-3/4”
(298mm)
23”
(584mm)
23”
(584mm)
23”
(584mm)
23”
(584mm)
Discharge
Opening
Discharge
Opening
Discharge
Opening

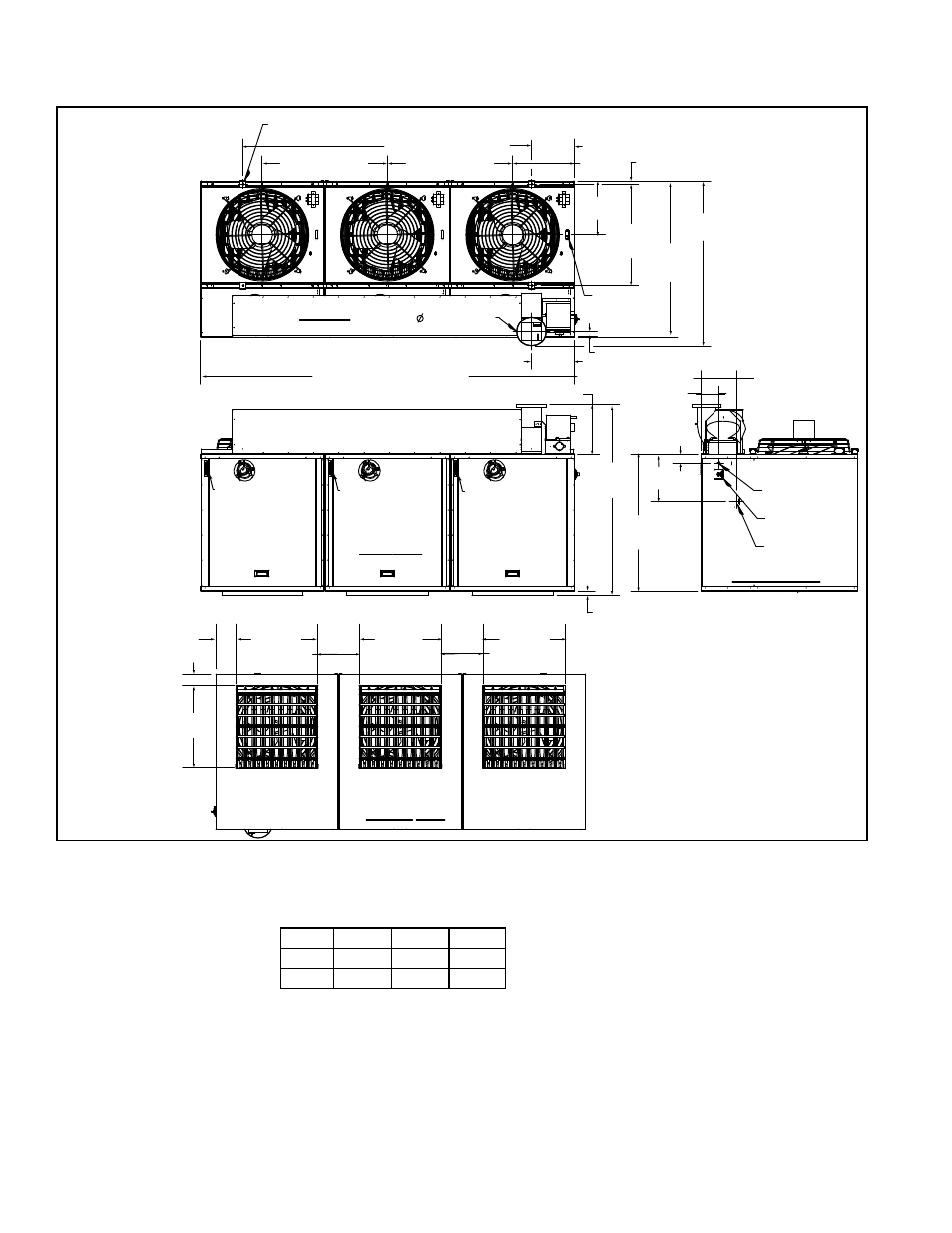

FIGURE 3B -
Model LDAP
1200 with
three heat
sections.
Model LDAP
800 has the
same layout
minus the
middle heat
section.
NOTE: If optional nozzles
are added to the discharge
openings, see dimensions
on page 16.
5.0 Hanging or
Mounting the
Heater
Before installing the heater, check the supporting structure to be used to verify
that it has sufficient load-carrying capacity to support the weight.
5.1 Weight (lbs/kg)
5.2 Suspending the
Heater
Locate the hardware kit shipped with the heater. The kit contains spring nuts,
hex nuts, “U”-shape fittings, and lock washers for suspending the heater. It also
includes louvers and the compression springs needed to install them.
When the heater is lifted for suspension, support the bottom of the heater with
the crate bottom. If the bottom is not supported, damage could occur. Before
hanging or mounting, verify that any screws used for holding shipping brackets
were re-installed in the cabinet.
Size 400 800 1200
lbs 375 805 1195
kg 170 365 542
