Form I-LDAP, P/N 207733R6, Page 33

Gas Control

Knob

(shown in the

ON position)

Gas

Flow

Gas

Flow

Top View

Side View

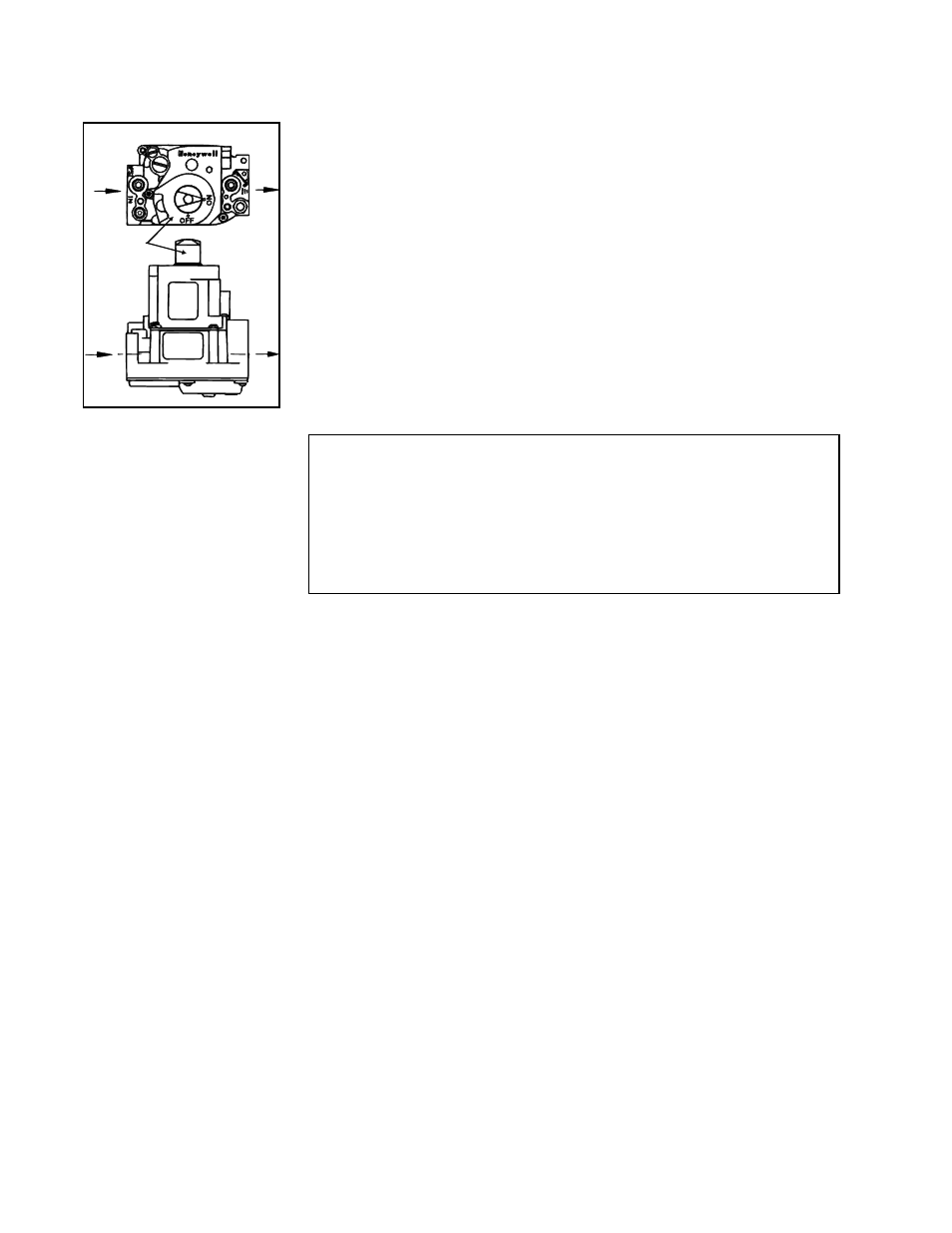

FIGURE 21 - Gas

Valve ON/OFF

Control Knob

9.3 Check

installation after

Startup

Vent System Testing Procedure

1. Seal any unused openings in the venting system.
2. Inspect the venting system for proper size and horizontal pitch, as

required in the National Fuel Gas Code, ANSI Z223.1 or CSA B149.1

and B149.2, Installation Code for Gas Burning Appliances and

Equipment, and this manual. Determine that there is no blockage or

restriction, leakage, corrosion or other deficiencies that could cause an

unsafe condition.

3. In so far as practical, close all building doors and windows and all doors

between the space where the heater is and other spaces of the building.

Turn on exhaust fans so they shall operate at maximum speed. Do not

operate a summer exhaust fan.

4. Light the heater following the lighting instructions. Adjust the thermostat

for continued operation. Verify that combustion products are venting

properly. After determining that the heater vents properly, return doors,

windows, and exhaust fans to their previous conditions. If improper

venting is observed, the venting system must be corrected.

With the heater in operation, measure valve outlet gas pressure. If

operated at high altitude, adjust outlet gas pressure for altitude. See

information and instructions in Paragraph 6.1

Using the thermostat, turn the heater off and on, pausing two minutes

between each cycle. Observe for smooth ignition.

Place the "Owner's Envelope" containing the Limited Warranty, this

booklet, and any control or optional information in an accessible location

near the heater. Follow the instructions on the envelope.

WARNINGS printed above or on the Operating Label on the heater. If you

do not smell gas, proceed to the next step.

6. Turn the gas control knob(s) counterclockwise to “ON”.

7. Close the access door(s).

8. Turn on the electric power to the heater.

9. Set the thermostat to the desired setting.

NOTE: If the appliance does not operate, follow the instructions “To Turn Off

Gas to Appliance” printed below (and on the Operating Label on the heater)

and call your service technician.

10. Thermostat calls for heat, energizing the venter motor(s).

11. The main combustion air pressure switch (Sizes 800 and 1200) and each

heat section pressure switch close, firing the heater.

12. Burner flame is sensed and in 30 seconds after the gas valve is

energized, the fan motor(s) is energized.

13. If the flame is extinguished during the main burner operation, the

integrated control system closes the main valve and must be reset by

interrupting power to the control circuit. (See lighting instructions on the

heater.).

TO TURN OFF GAS TO THE APPLIANCE

1) Set thermostat to lowest setting

2) If service is to be performed, turn off all electric power to the

appliance.

3) Open the access door(s).

4) Turn the gas control knob(s) clockwise to “OFF”. Do not force.

5) Close the access door(s).
