Form I-LDAP, P/N 207733R6, Page 5

Hazards of Chlorine

2.3 Heater Throw

NOTES:

X = Distance from “0” to beginning of floor

coverage.

Y = Distance from “0” to end of floor coverage.

Length of floor coverage = Y - X.

Z = Distance from “0” to the point where the

air velocity drops below 50 feet (15.2M) per

minute.

Throws listed are with standard louvers facing

one direction and fully open. Throw pattern

changes with louver angle, 2-way louver

direction, and/or optional 4-way louvers.

X

Y

Z
X

Y

Z

X

Y

Z

0

Standard

Louvers

30° Nozzle

60° Nozzle

Mounting

Height

Standard Louvers

30° Nozzle

60° Nozzle

= “Rear” of Heater Discharge

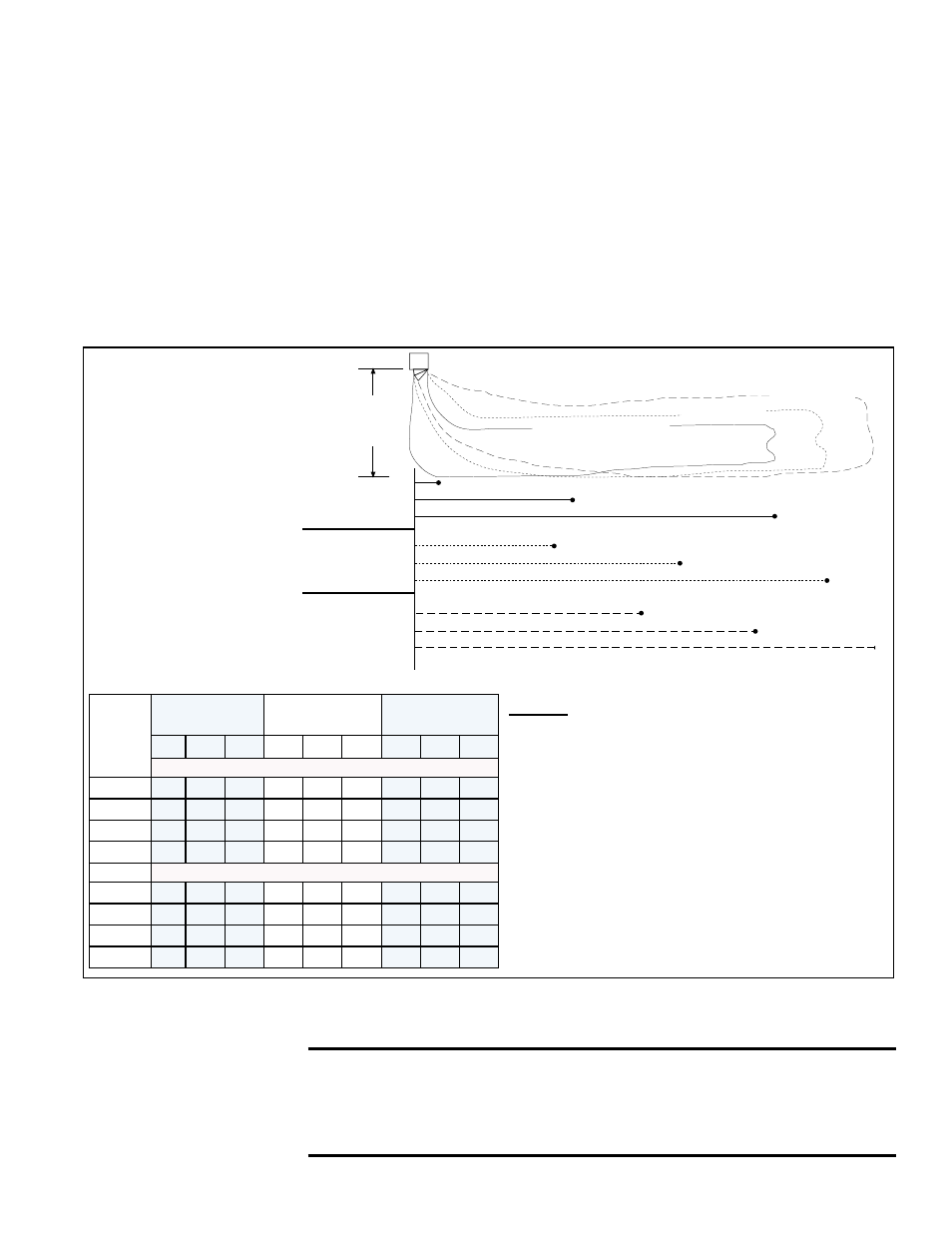

FIGURE 2 - Model

LDAP Air Throw

(Heat Mode @

High Speed)

The illustration in

FIGURE 2 applies to all sizes of Model LDAP heaters.

Mounting Height

Standard

Louvers

30° Degree

Nozzle

60° Degree

Nozzle

X

Y

Z

X

Y

Z

X

Y

Z

Throw (feet)

20 ft

5

55 134 40

90 146 70 125 158

30 ft

8

53 121 44

86 133 76 119 145

40 ft

12 49 109 47

81 120 N/A N/A N/A

50 ft

17 45

96 N/A N/A N/A N/A N/A N/A

Throw (meters)

6.1 M 1.5 16.8 40.8 12.2 27.4 44.5 21.3 38.1 48.2
9.1 M 2.4 16.2 36.9 13.4 26.2 40.5 23.2 36.3 44.2

12.2 M 3.7 14.9 33.2 14.3 24.7 36.6 N/A N/A N/A

15.2M 5.2 13.7 29.3 N/A N/A N/A N/A N/A N/A

NOTE: For further details on supplying combustion air to a confined space,

see the National Fuel Gas Code ANSI Z223.1a (latest edition).
The presence of chlorine vapors in the combustion air of gas-fired heating

equipment presents a potential corrosion hazard. Chlorine found usually in the

form of freon or degreaser vapors, when exposed to flame will precipitate from

the compound, and go into solution with any condensation that is present in the

heat exchanger or associated parts. The result is hydrochloric acid which read-

ily attacks all metals including 300 grade stainless steel. Care should be taken

to separate those vapors from the combustion process. This may be done by

wise location of the heater with regard to exhausters or prevailing wind direc-

tions. Chlorine is heavier than air. Keep these facts in mind when determining

installation location of the heater in relation to building exhaust systems.

2.4 Mounting Height

Locate the heater so that it is a minimum of 15 feet (4.6M) above the floor and

in compliance with the clearances in Paragraph 4.1.

WARNING: If touched, the vent pipe and internal heater

surfaces that are accessible from outside the heater will

cause burns. Suspend the heater a minimum of 15 feet (4.6M)

above the floor.
