Form I-LDAP, P/N 207733R6, Page 26

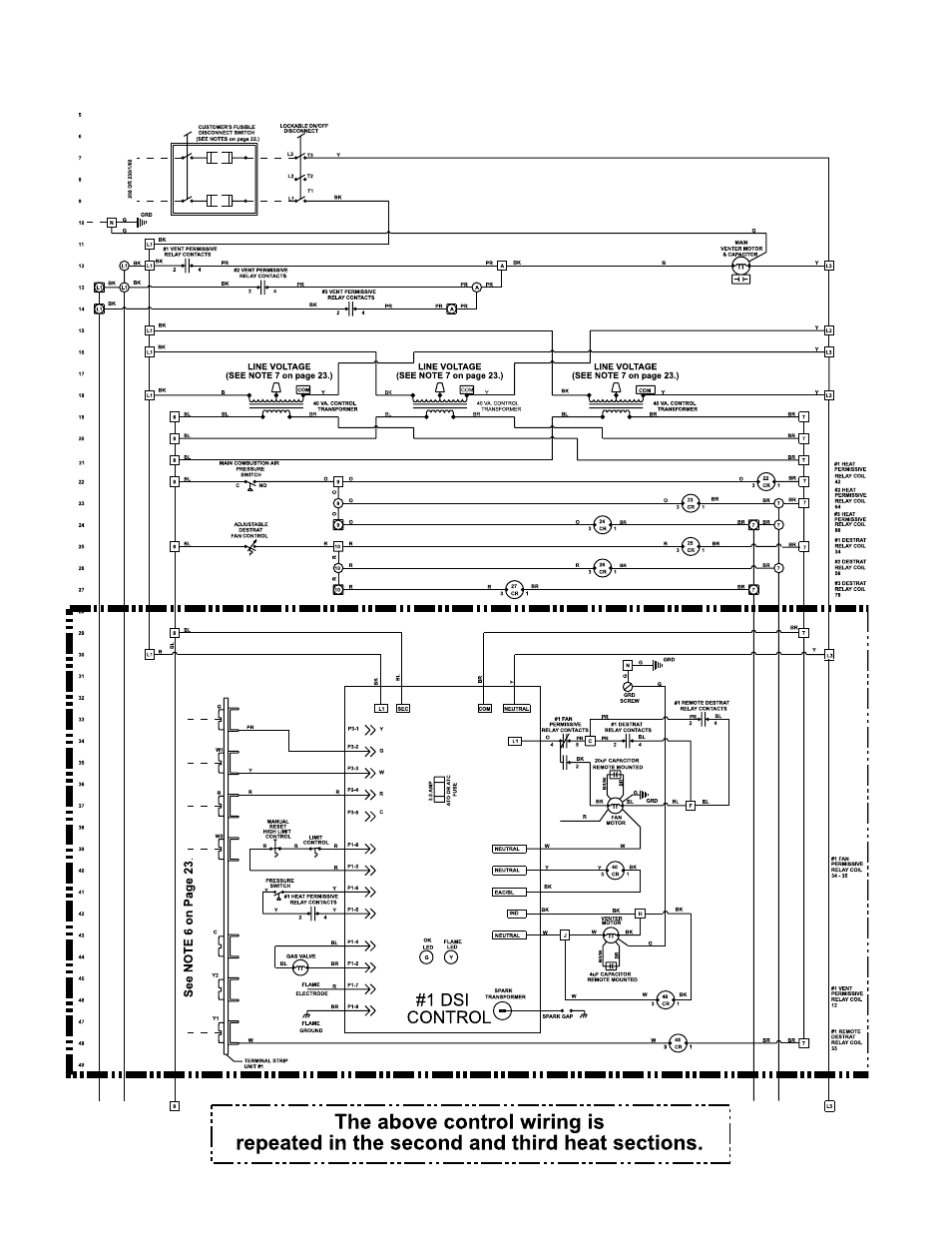

FIGURE 19 – Typical Wiring Diagram for Model LDAP 1200 (Reference W. D. 189376, Rev 3)

(Low Speed

Destratification -

field wired)

7.0 Electrical and Wiring (cont’d)
