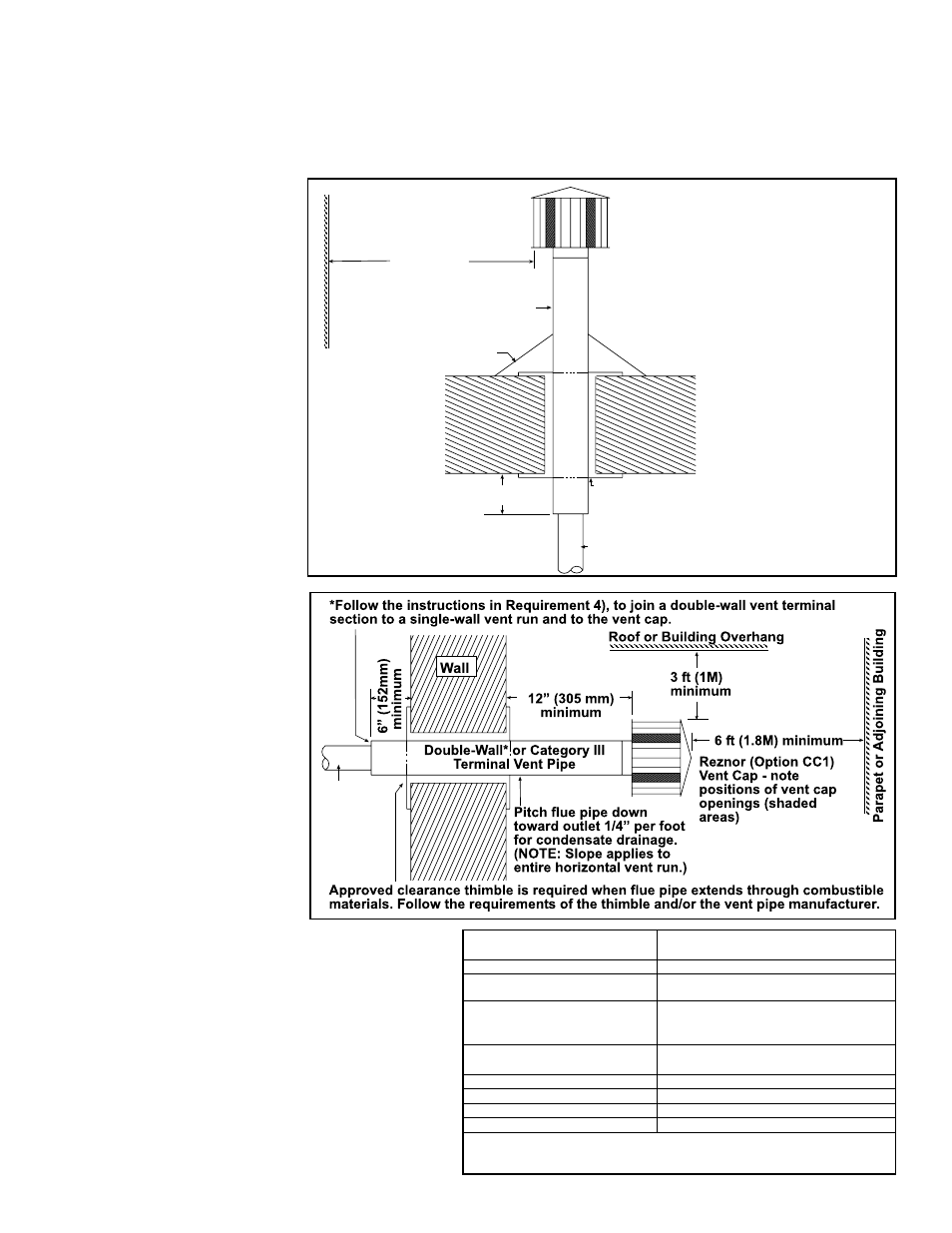

Form I-LDAP, P/N 207733R6, Page 19

7) Vent Terminal (Pipe

and Vent Cap)

The vent terminal pipe must be either Category III vent pipe or double-wall

(Type B). Terminate the vent pipe with a Reznor Option CC1 vent cap. A differ-

ent style vent cap could cause nuisance problems or unsafe conditions. The

vent cap must be the same diameter as the vent pipe.

See

FIGURE 11 for requirements of a vertical vent terminal. See FIGURE 12

and the clearance table for requirements of a horizontal vent terminal.

FIGURE 12 -

Horizontal Vent

Terminal

(NOTE: Read all

measurements; drawing

is not proportional.)

Vent Pipe

(Comply with

Requirements

1) and 2) on

pages 16-17.)

Horizontal Vent Terminal Clearances

A vent cap is required. Maintain a minimum

clearance of 12 inches (305mm) from the wall

to the vent terminal cap for stability under wind

conditions.

Products of combustion can cause discoloration

of some building finishes and deterioration of

masonry materials. Applying a clear silicone

sealant that is normally used to protect concrete

driveways can protect masonry materials. If

discoloration is an esthetic problem, relocate the

vent or install a vertical vent.

Structure

Minimum Clearances for Vent Termination

Location (all directions unless specified)

Forced air inlet within 10 ft (3.1M)

3 ft (0.9M) above

Combustion air inlet of another

appliance

6 ft (1.8M)

Door, window, or gravity air inlet (any

building opening)

4 ft (1.2M) horizontally

4 ft (1.2M) below

1 ft (305mm) above

Electric meter, gas meter*, gas

regulator*, and relief equipment

U.S. - 4 ft (1.2M) horizontally

Canada - 6 ft (1.8M) horizontally)

Gas regulator *

U.S. - 3 ft (0.9M); Canada - 6 ft (1.8M)

Adjoining building or parapet

6 ft (1.8M)

Adjacent public walkways

7 ft (2.1M) above

Grade (ground level)

1 ft (305mm) above**

*Do not terminate the vent directly above a gas meter or service regulator.

** Consider local snow depth conditions. The vent must be at least 6” (152mm)

higher than anticipated snow depth.

FIGURE 11 - Vertical

Vent Terminal
(

NOTE: Read all

measurements; drawing

is not proportional.)

Roof -

pitched

from

0 to 45°

Approved clearance thimble is required

when flue pipe extends through combustible

materials. Follow the requirementsof the

thimble and/or the vent pipe manufacturer.

Vertical flue extension must

be 6” (152mm) higher than

anticipated snow depth but

no less than 2 ft (610mm) above

the roof.

Roof Flashing

6” (152mm) minimum

Parapet or

Adjoining Building

6 ft (1.8M)

minimum

Double-Wall* or Category III

Terminal Vent Pipe*

Reznor (Option CC1)

Vent Cap

Vent Pipe (Comply with Requirements

1) and 2) on pages 16-17.)

*Follow the instructions in Require-

ment 4), to join a double-wall vent

terminal section to a single-wall

vent run and to the vent cap.
