Control Module Fuses
7. Re-install the control module cover, electrical connectors and the front jacket panel when
completed.
8. Reconnect the external power supply to the boiler and perform the verification of operation
steps as outline in the Esteem 399 Low NOx Installation Manual.
WARNING
A
FTER COMPLETING ANY SERVICING OF THE BOILER VERIFY PROPER OPERATION OF THE BOILER
.
S
TEPS TO VERIFY PROPER OPERATION ARE OUTLINED IN THE
S
TART
-U
P
P
ROCEDURES IN THE
E
S
-
TEEM
399 L
OW
NO
X
B
OILER
I
NSTALLATION AND
M
AINTENANCE
M
ANUAL
. F
AILURE TO COMPLY
COULD RESULT IN SEVERE PERSONAL INJURY
,
DEATH OR SUBSTANTIAL PROPERTY DAMAGE
.
F1 Fuse Rating
5 - AMP/250V
Fast Acting
for 120V-High Voltage
120V-High Voltage
Electrical Quick
Connect
F3 Fuse Rating
4 - AMP/250V
Slow Acting
for 24V-Low Voltage
Control
Module

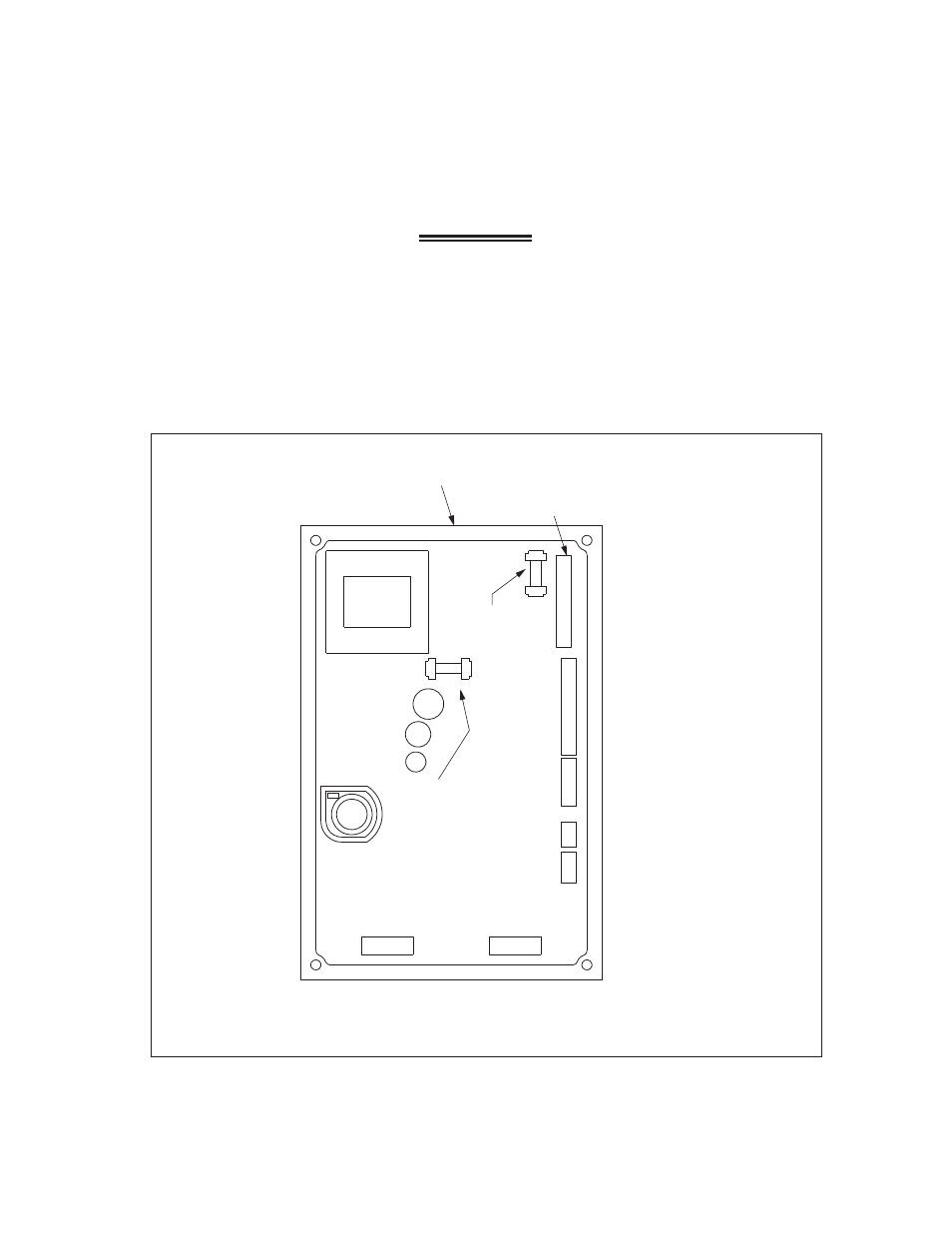

Figure 27: Fig. 1 Control Module Fuse Locations (Housing Cover Removed)
