1. Boiler circulator
2. Isolation valve
3. Flow/check valve
4. System circulator
5. Drain/purge valve
6. Automatic air vent
7. Air separator
8. Diaphragm expansion
tank
9. Automatic fill valve

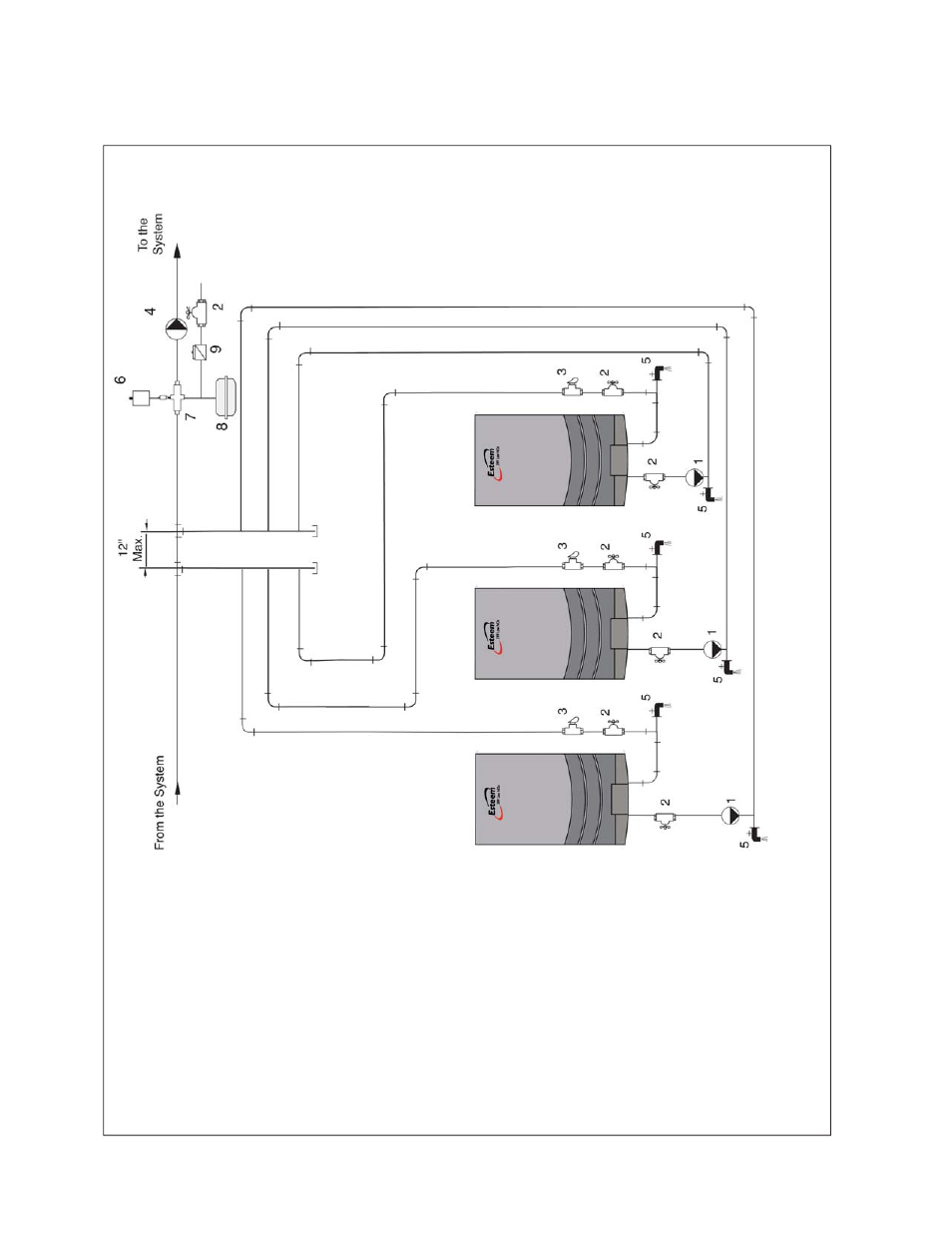

Figure 15:
Multiple Esteem 399 Low NOx Boiler Piping - Primary / Secondary / Piping using Balanced Manifold System
GF-125
