3-9
3
3 Window Functions and Operation
OUT settings
This section explains the items and functions on the "OUT Settings" tab.
These settings define how the measurement data should be handled to suit the operating
environment.

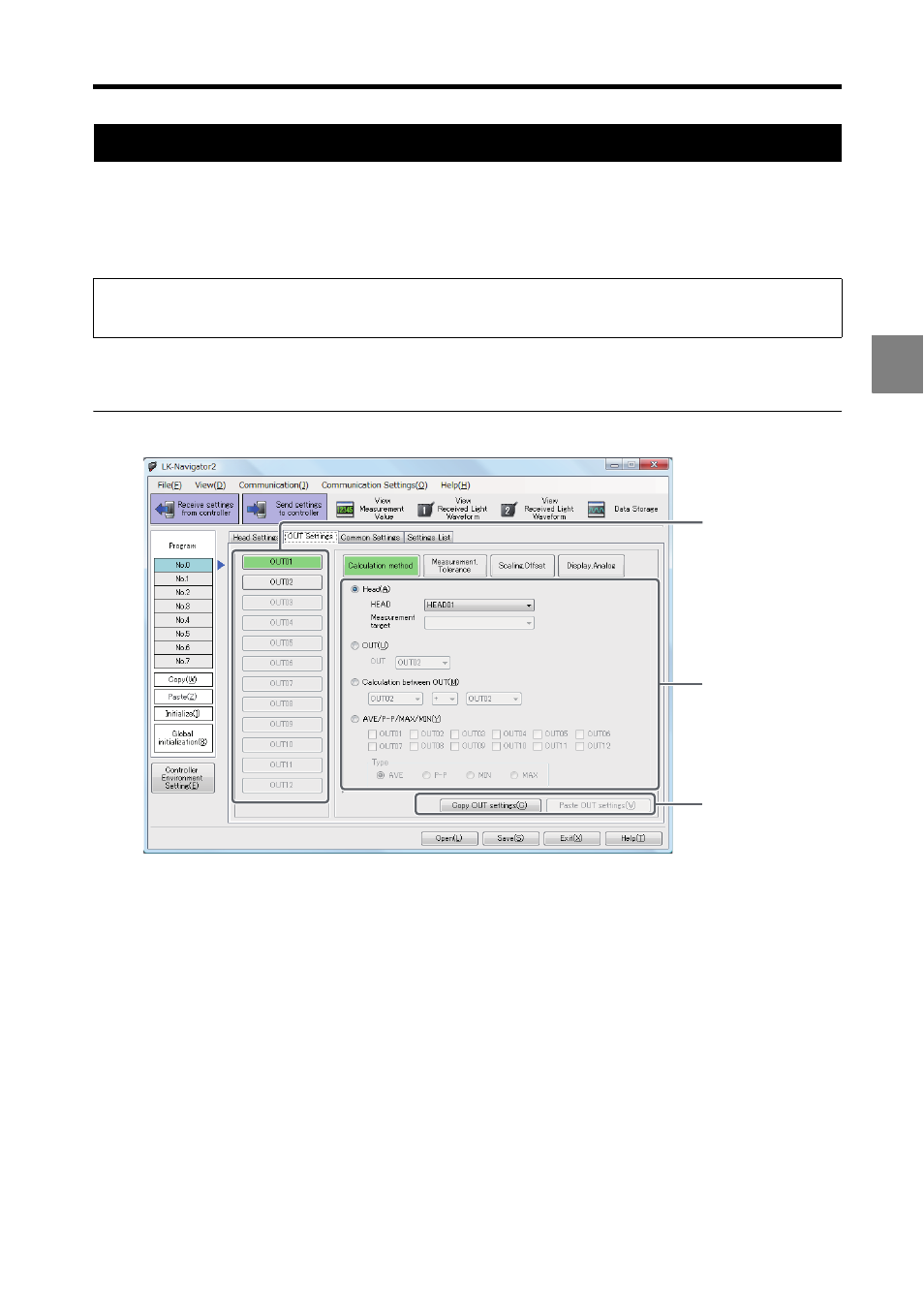

Click the "OUT Settings" tab in the settings pane.
Calculation method
(1) Target OUT selection
Specifies the OUT to configure.
(2) Calculation method
Sets the calculation method according to the measurement mode and target.
Head
Sets the head number and detection target to associate with the OUT to configure.
The detection target can be set if the head measurement mode is set to transparent object
or transparent object 2.
OUT
Sets the OUT number to associate with the OUT to configure.
Calculation between OUT
Sets the calculation to apply to the OUT-to-OUT range to associate with the OUT to configure.
To use three or more OUTs by using the head expansion unit , change the setting on
the "Controller Environment Setting" dialog (page 3-24).
(1)
(2)
(3)
