2-5
2
2 Preparations before Operating
RS-232C connection

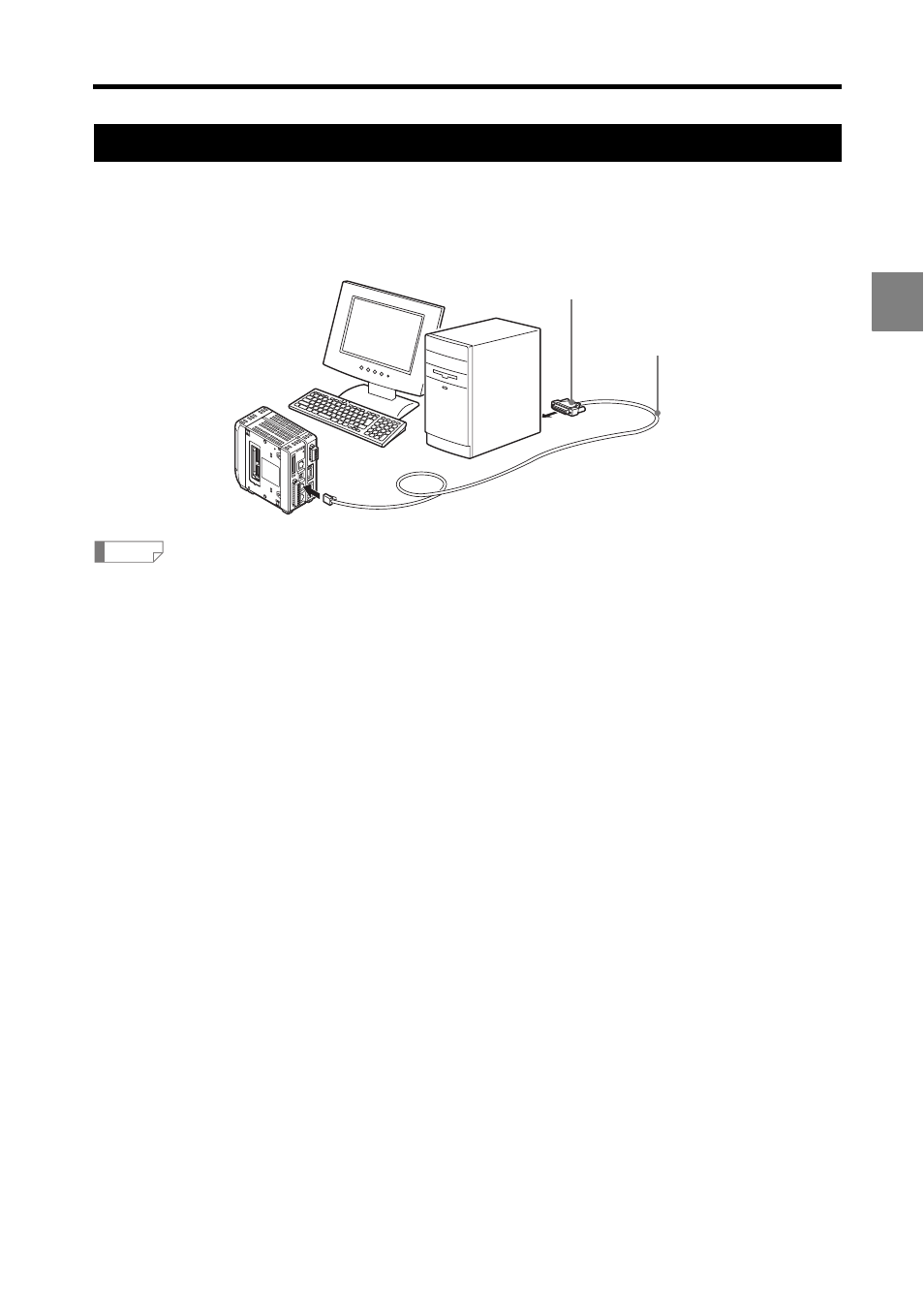

This section explains how to connect the controller and PC with an RS-232C cable.
To use the RS-232C connection, use the dedicated cable OP-96368 (straight 2.5-m cable)
with either OP-96369 (D-sub 25 pin) or OP-26401 (D-sub 9 pin).
The orientation and location of the RS-232C port on the PC differs for each PC. Refer to the
instruction manual supplied with your PC when connecting the RS-232C cable.
1
Connect the dedicated cable OP-96368 to the RS-232C connector on the controller.
2
Connect OP-96368 and OP-96369 and connect this to the RS-232C connector on
the PC.
The connection in this explanation uses OP-96369 (D-sub 25 pin).
1
(V) (A) 0V (V) (A) 0V
LK- G5000
OP-96369 or OP-26401
OP-96368
Reference
