Page 81
69
C4
dio
d
igiTal
i/o C
ard
f
eaTures
ALL
FRAME
™
Multi-Modular I/O System
Choosing a Slot to Output
To assign an active network Slot to a C4dio output, click on the arrow found in the
s
lOt
, C
hANNel
N
AMe
, D
eviCe
column of the
O
utPuts
f
rOM
N
etwOrk
view of the Device Window. From the scrolling Select Source menu that
appears, select the desired active network Slot by channel name and device name, or choose an inactive Slot by
picking a Slot whose info reads
N
O
A
Ctive
i
NPut
. To assign no routing to an output, click the
N
ONe
button at the
top of the Source list. The output assignment in the Device Window will be displayed as double dashes “- -”.

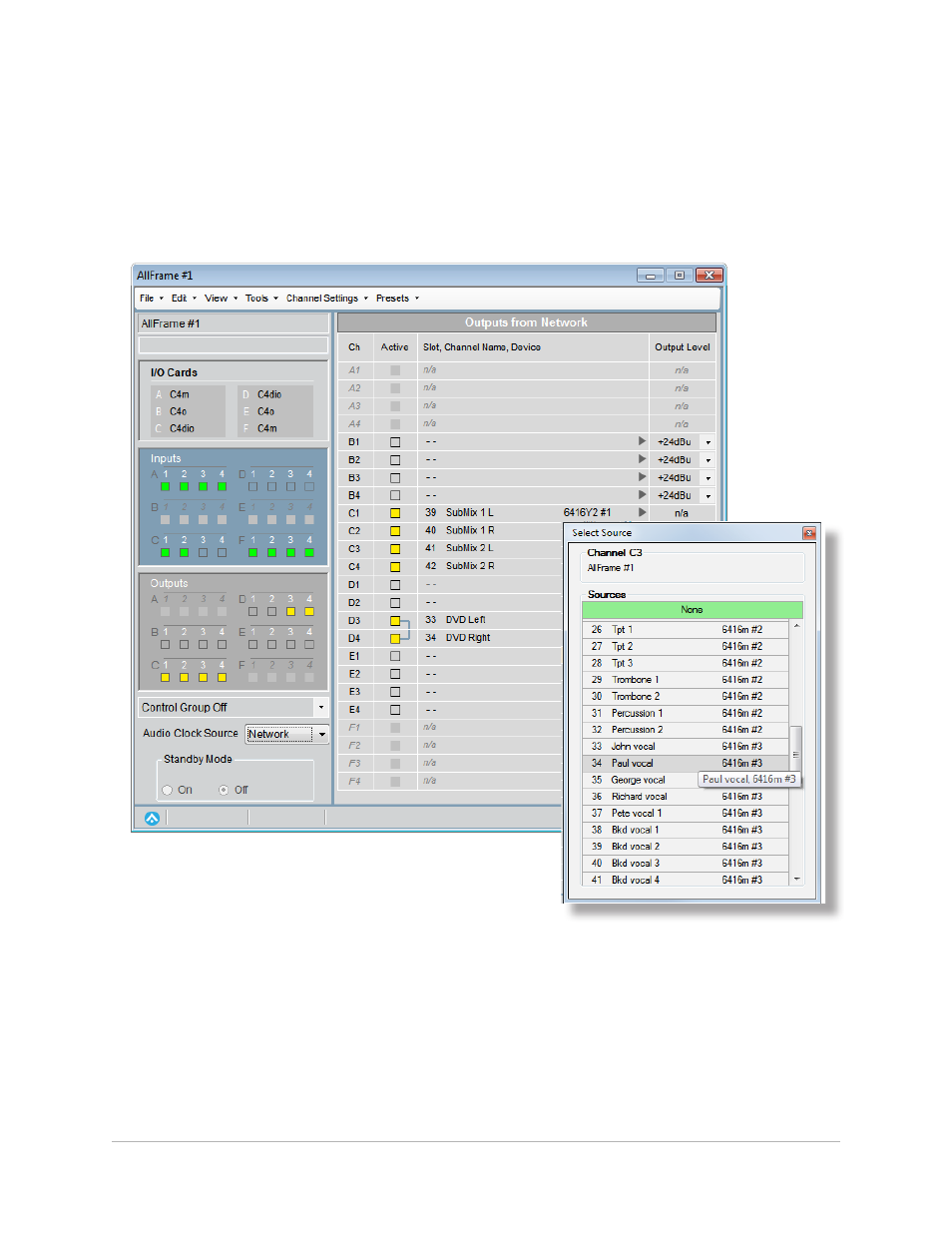

Choose any network Slot from the scrolling list to assign it to an output.
