owering
The
a
ll
f
rame
ALL
FRAME
™
Multi-Modular I/O System
P
N
ote
:
Do not connect a Power Over A-Net cable from the POA80 to the
A-N
et
A port on the F6 or to the
A-Net ports on any other Pro64 device.
DC Power 65w max
DC POWER
65W MAX
Connect Power Over A-Net cables only to the A-Net B port on the F6.

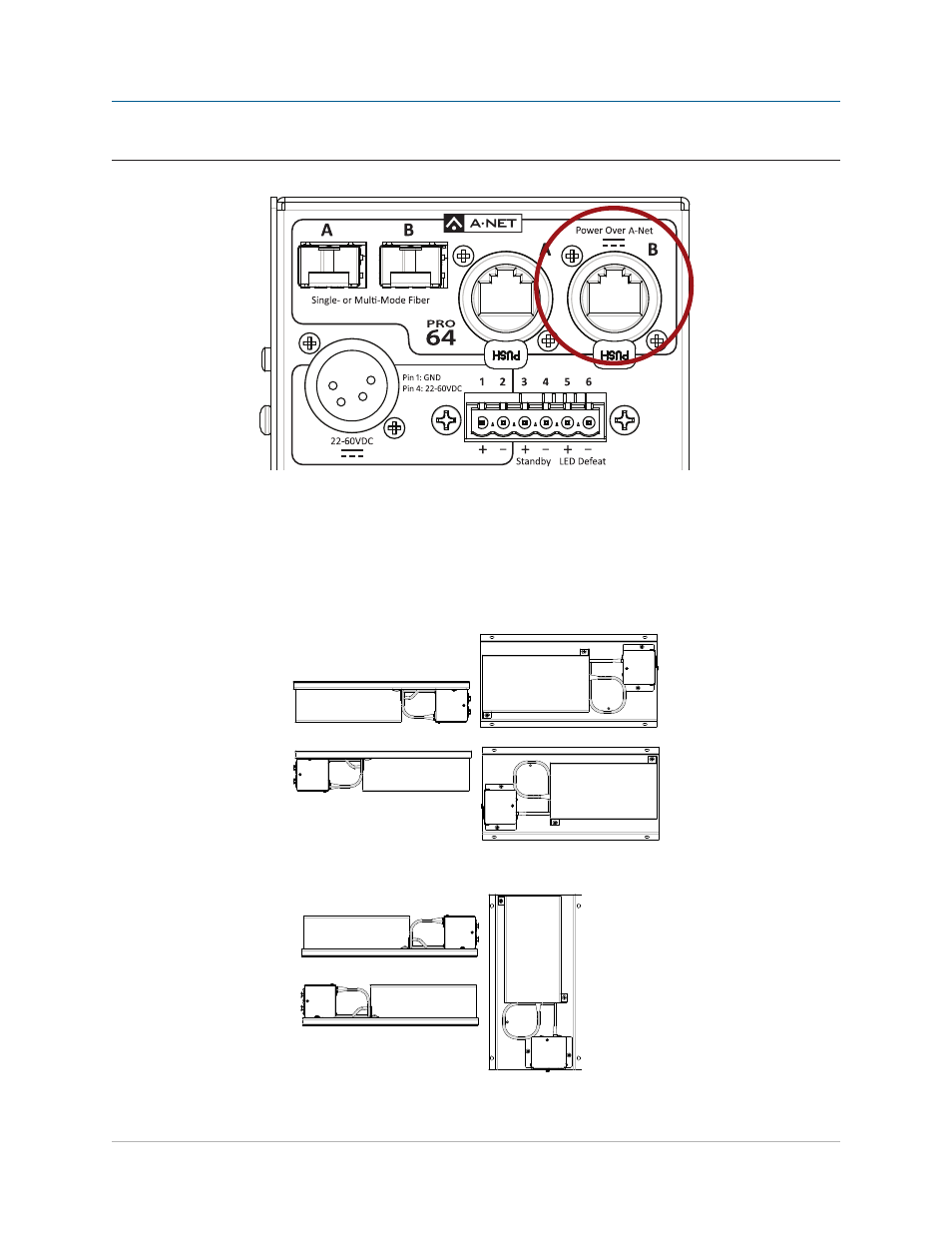

Mounting the POA80
The POA80 can be mounted on both horizontal and vertical surfaces. However, do not mount the POA80
horizontally on a vertical surface such as a wall or interior of a rack, and do not mount the POA80 upside down.
13.25 in.,
336.55 mm
7.000 in.,
177.80 mm
3.038 in.,
77.21 mm
13.25 in.,
336.55 mm
7.000 in.,
177.80 mm
3.038 in.,
77.21 mm
Do not mount a POA80 upside down or horizontally on a wall.
13.25 in.,
336.55 mm
7.000 in.,
177.80 mm
3.038 in.,
77.21 mm
13.25 in.,
336.55 mm
7.000 in.,
177.80 mm
3.038 in.,
77.21 mm
13.25 in.,
336.55 mm
7.000 in.,
177.80 mm
3.038 in.,
77.21 mm
These orientations allow for proper ventilation of the POA80.
