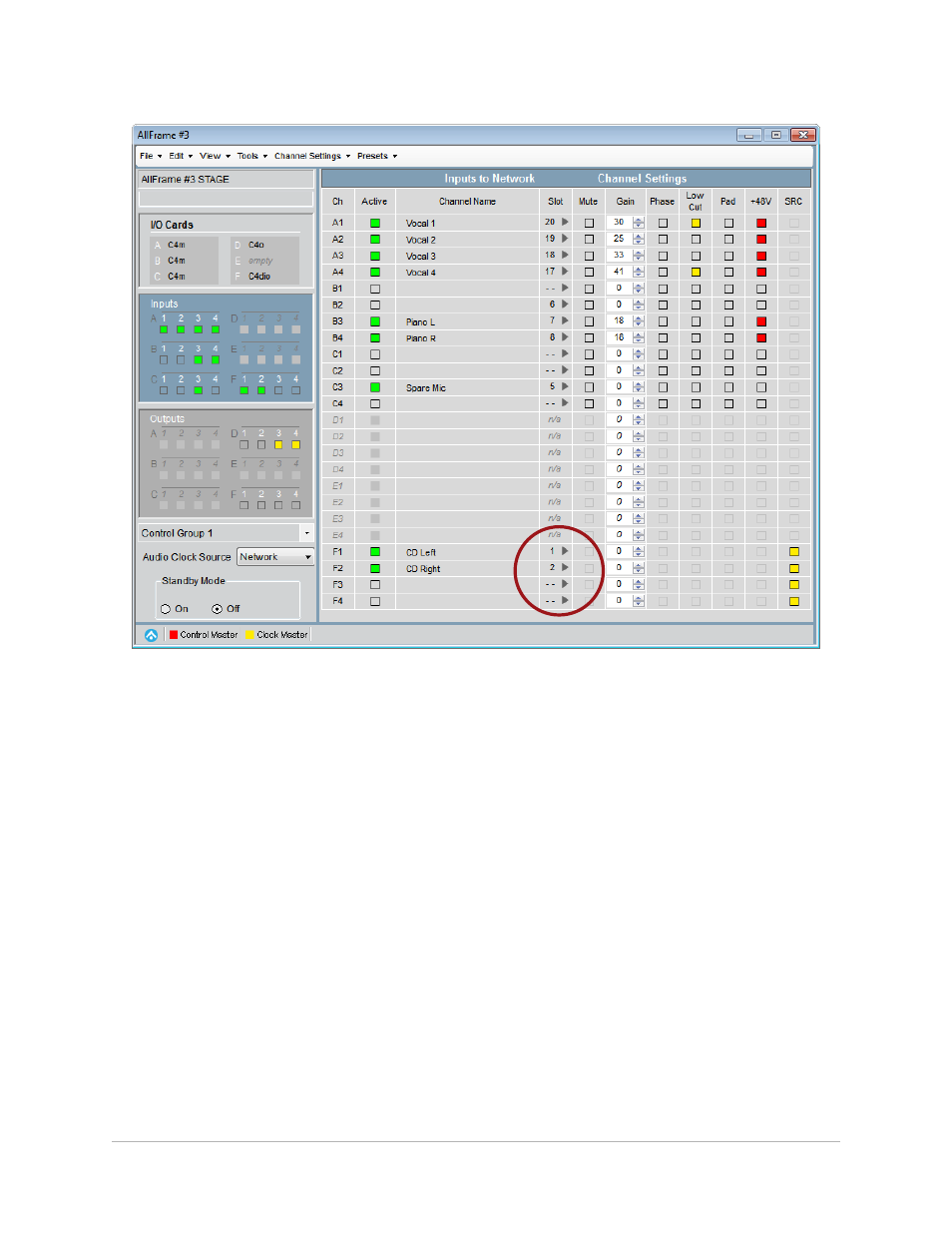

Channels F1 and F2 of the AllFrame are assigned to network Slots 1-2; sample rate converters are on.

Sample Rate Converters

Each AES3 input has an optional sample rate converter (SRC) available in the Inputs to Network view of the

AllFrame’s Device Window. Sample rate converters are switched on/off in pairs, 1-2 and 3-4. The default setting

for the sample rate converter is ‘on’. Use the sample rate converter whenever a digital device that has no external

clock sync input capabilities needs to be connected to the network to avoid clock sync issues. The SRC can convert

input sample rates between 28.0kHz and 216.0kHz to any supported network sample rate.

Sample rate converters are indicated with yellow LED icons in the SRC column of the Inputs to Network view of

the AllFrame Device Window. The on/off state of the SRC is saved with a device preset.
