Install the Connector Cover:
The SK6 Stage Kit ships with an optional connector cover plate that can be added to provide extra protection to
cables connected to the I/O section of the F6 when it is installed in a stage kit. The cover plate can be installed
on either side of the I/O section. The angled flange on the plate should be oriented as shown for maximum cable
protection.

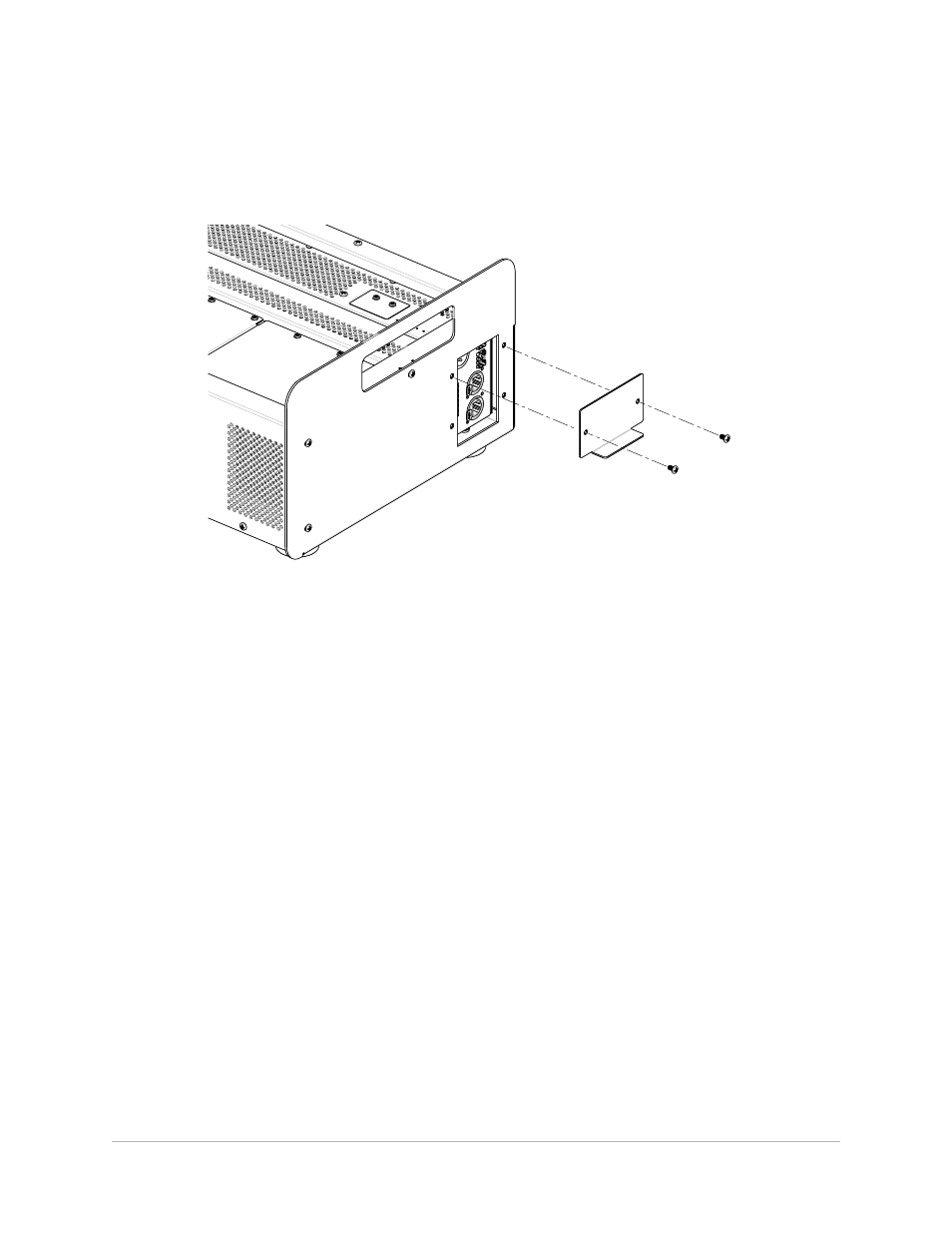

The optional cover plate can be installed on either side of the I/O section.
