ALL FRAME
™
Multi-Modular I/O System
Control Group
Each Pro64 mic input device in a Pro64 network (such as the F6 Modular I/O Frame or a 6416m) can be set to one
of four Control Groups. This allows multiple zones of mics and their associated preamps to be remote controlled
by different users if desired by adding the optional RCI Remote Control Interface and MCS Mic Control Surface.
A mic preamp device must be set to one of the four Control Groups in order to be remote controlled using an
RCI and MCS, m-control from a Yamaha device, or the Pro64 Network Manager software. All mic preamp cards
installed in an AllFrame F6 Modular I/O Frame belong to the same Control Group. Click on the Control Group
drop-down menu in the Device Window to select a Control Group for the device.
P N
ote
: The Control Group settings for the F6 Modular I/O Frame and the RCI Remote Control Interface,
m-control device, and/or Pro64 Network Manager software must match to enable mic preamp control.
Refer to the Pro64 Network Manager documentation for additional information about configuring a Pro64
network and saving projects, device presets, and scenes.

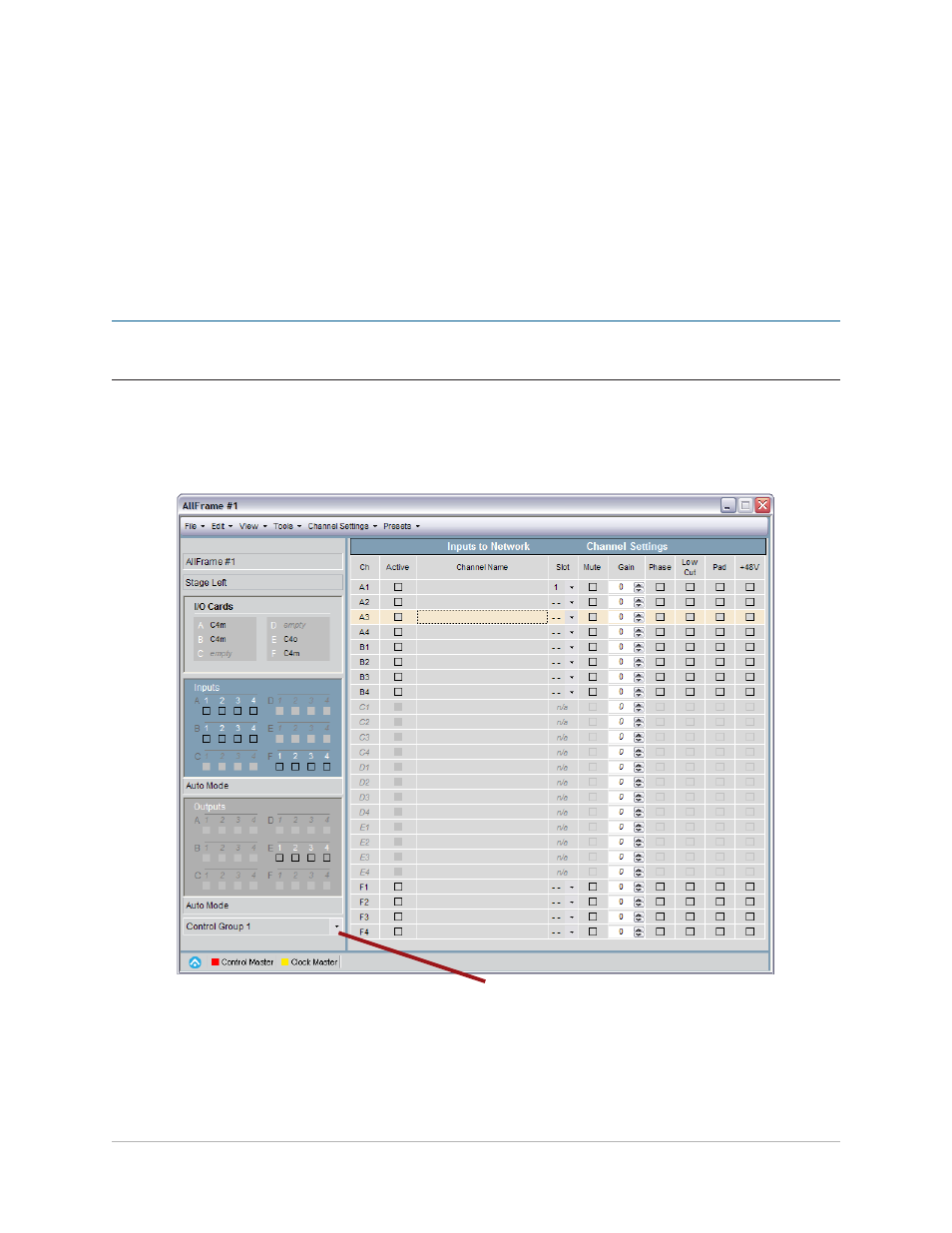

Change the Control Group by clicking on the drop-down menu.
