Page 74: All frame
62
C4
o
o
uTPuT
C
ard
f
eaTures
ALL
FRAME
™
Multi-Modular I/O System
c4
o
c
Ard
F
eAtures
The features of the C4o Output Card are accessed using the Pro64 Network Manager software. Any active Pro64
network Slot resource can be routed to any XLR output on the card.
Output Activation
The C4o Output Card is capable of outputting any active network Slot as analog audio. Each of the four output
channels on the C4o Output Card can be turned on or off individually; the on/off switches act like mute switches
on a mixing console and do not use any network resources as Pro64 input devices do.

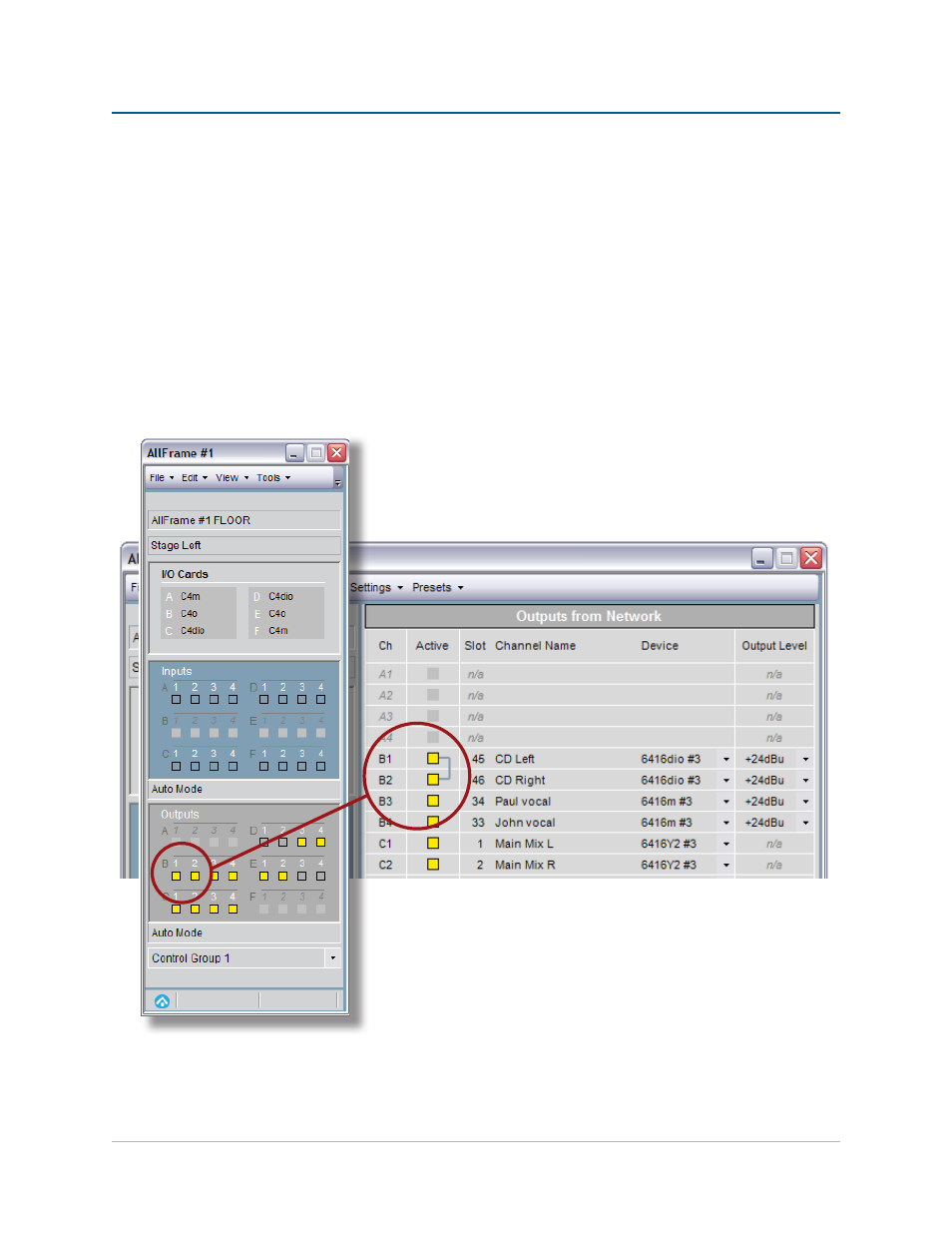

Click either Active button to turn an output channel on/off.
