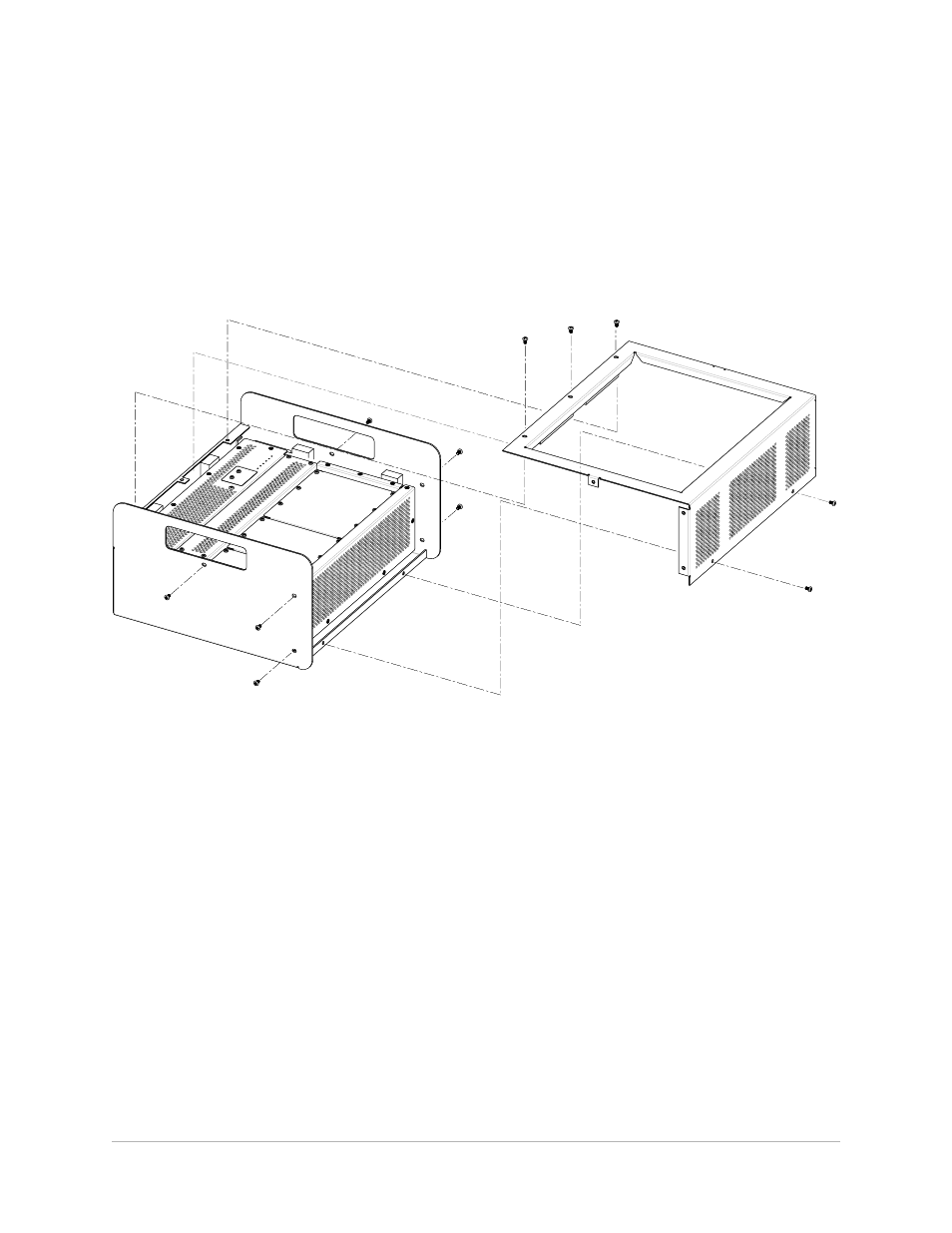

Install the Stage Kit Cover:
Carefully align the stage kit cover panel as shown
1.
. Be sure that the tabs on the sides of
the cover panel are on the inside of the case.
Install the two screws to hold the side panel in place
2.
.
Install three screws in the both the left and right sides of the stage kit
3.
.
Finally, install the three screws to secure the top panel
4.
.
Secure the top of the stage kit with the screws provided.
