Aviom AllFrame - Manual (Page 76)

64 C4
o
o
uTPuT
C
ard
f
eaTures
ALL FRAME
™
Multi-Modular I/O System
Choosing a Slot to Output
The F6 Modular I/O Frame is always ready to use the built-in Pro64 matrix. Each hardware output on a C4o card
can be configured to output any network Slot, even if the Slot is not currently active.
To assign an output, click on the arrow found in the D
eviCe column of the O
utPuts
f
rOM
N
etwOrk view of the
Device Window. From the scrolling Select Source menu that appears, select the desired active network Slot by
channel name and device name, or choose an inactive Slot by picking a Slot whose info reads N
O
A
Ctive
i
NPut
. To
assign no routing to a C4o card output, click the N
ONe
button at the top of the Source list. The assignment in the
Device Window will be displayed as double dashes “- -”.

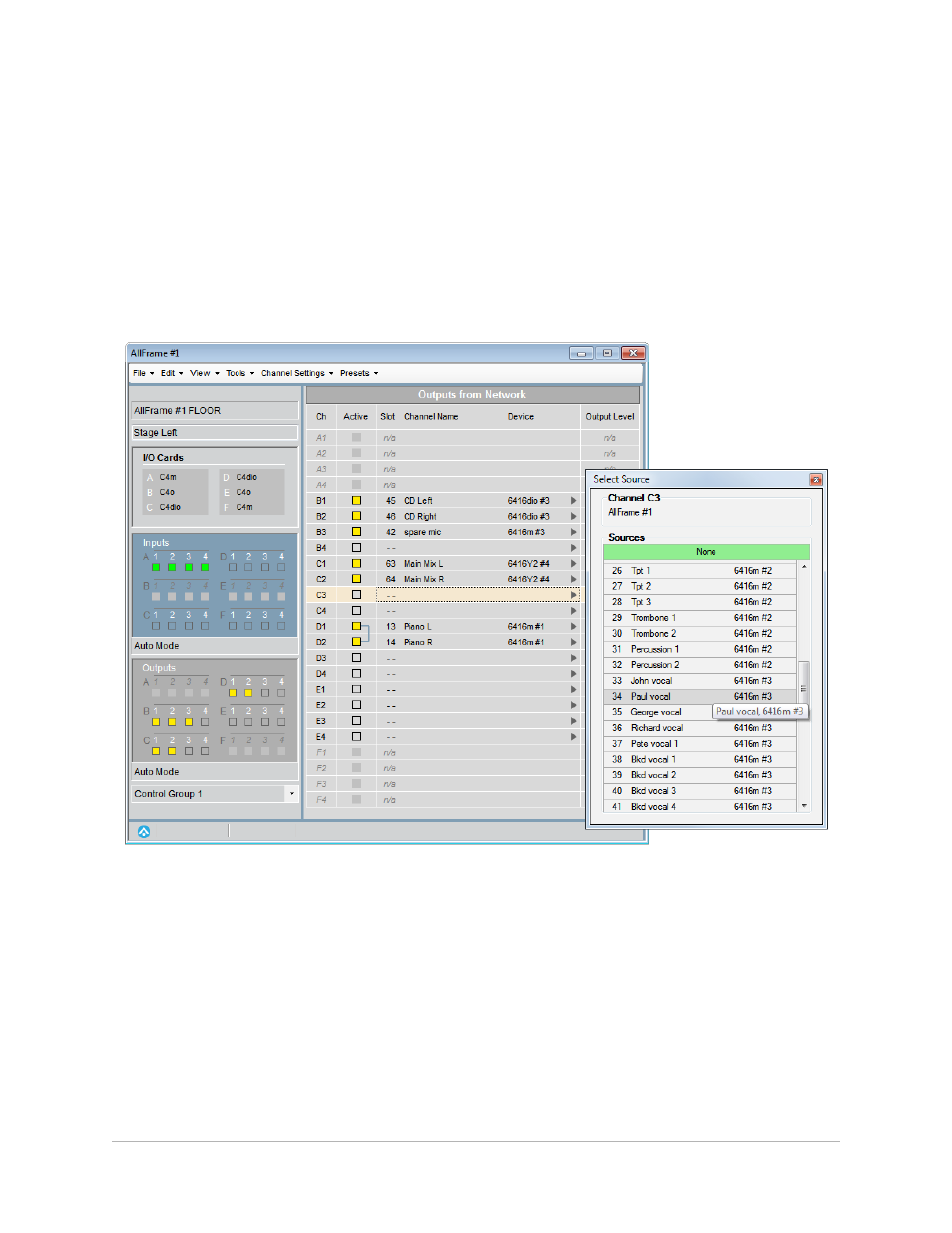

Choose any network Slot from the scrolling list to assign it to an output.
