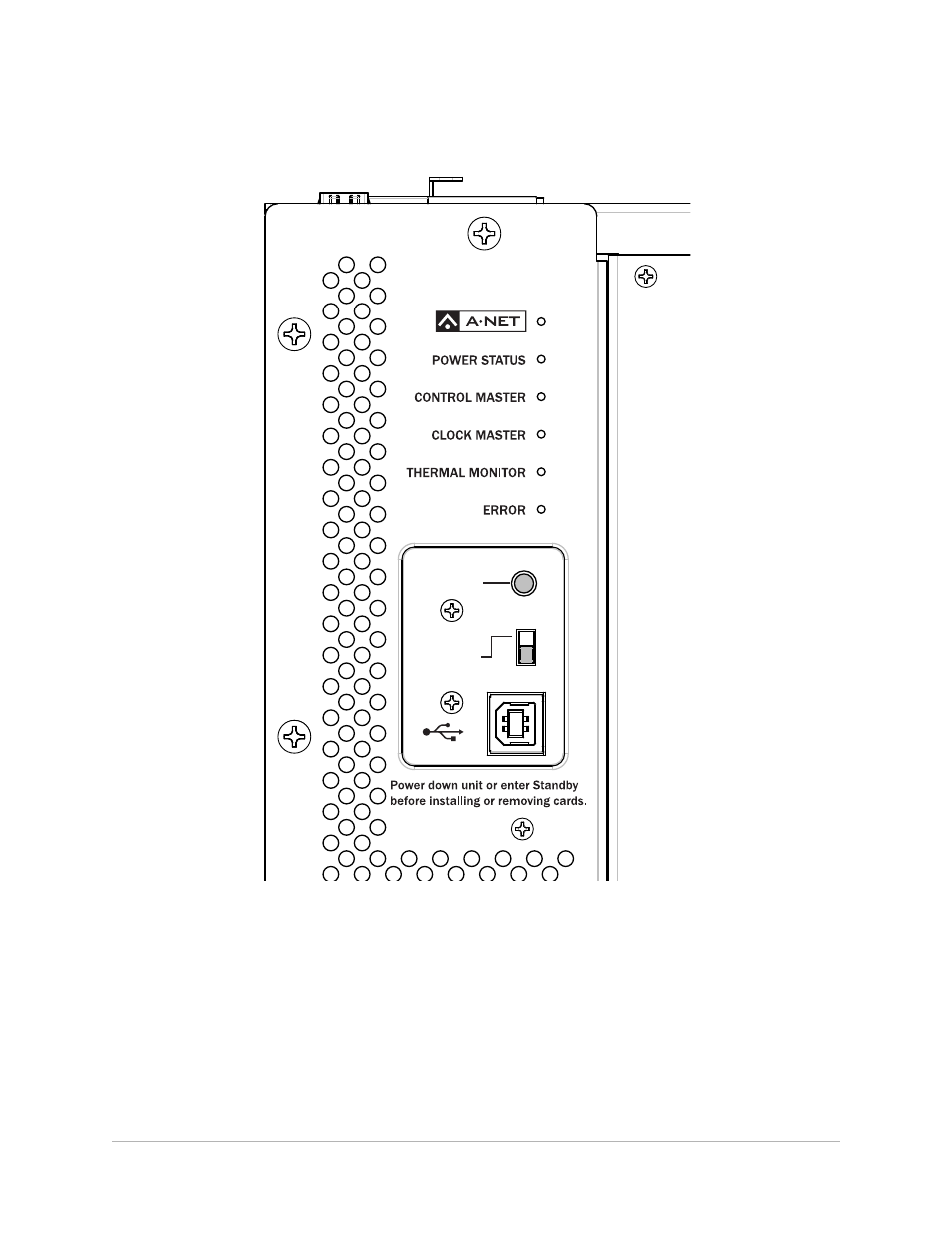

F6 Front Panel Components
1. A-Net LED
2. Power Status LED (bi-color)
3. Control Master LED
4. Clock Master LED
5. Thermal Monitor LED
6. Error LED
7. Standby Switch (under cover
plate)
8. Control Master Switch
9. USB Type B Connector
