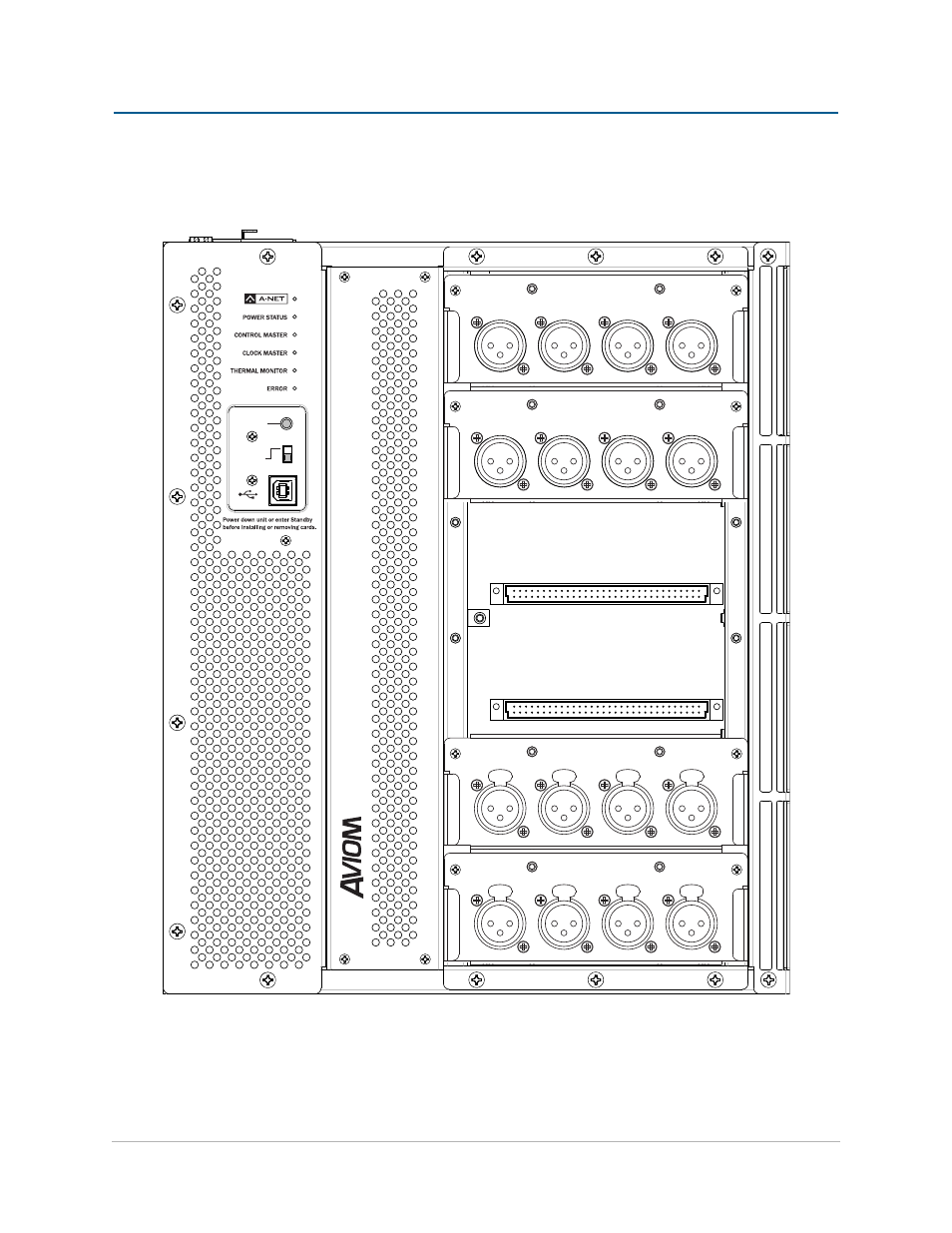

The front panel of the F6 Modular I/O Frame is divided three sections: the main board area with its status LEDs (1)
and control panel beneath a removable cover plate (2), the fan tray (3), and the configurable audio I/O section (4),
shown here with four cards installed and the two remaining protective cover plates removed.
