Channel Output Level
Each output channel on the C4o card has an individual Output Level setting controlled by a drop-down menu.
Five output levels are available: +28dBu, +24dBu, +18dBu, +4dBu, and Mic. Choose the output level setting that
best matches the input level requirements of device that the C4o output is connected to.
To change the output level, click the arrow in the output Level field and select the desired level setting.

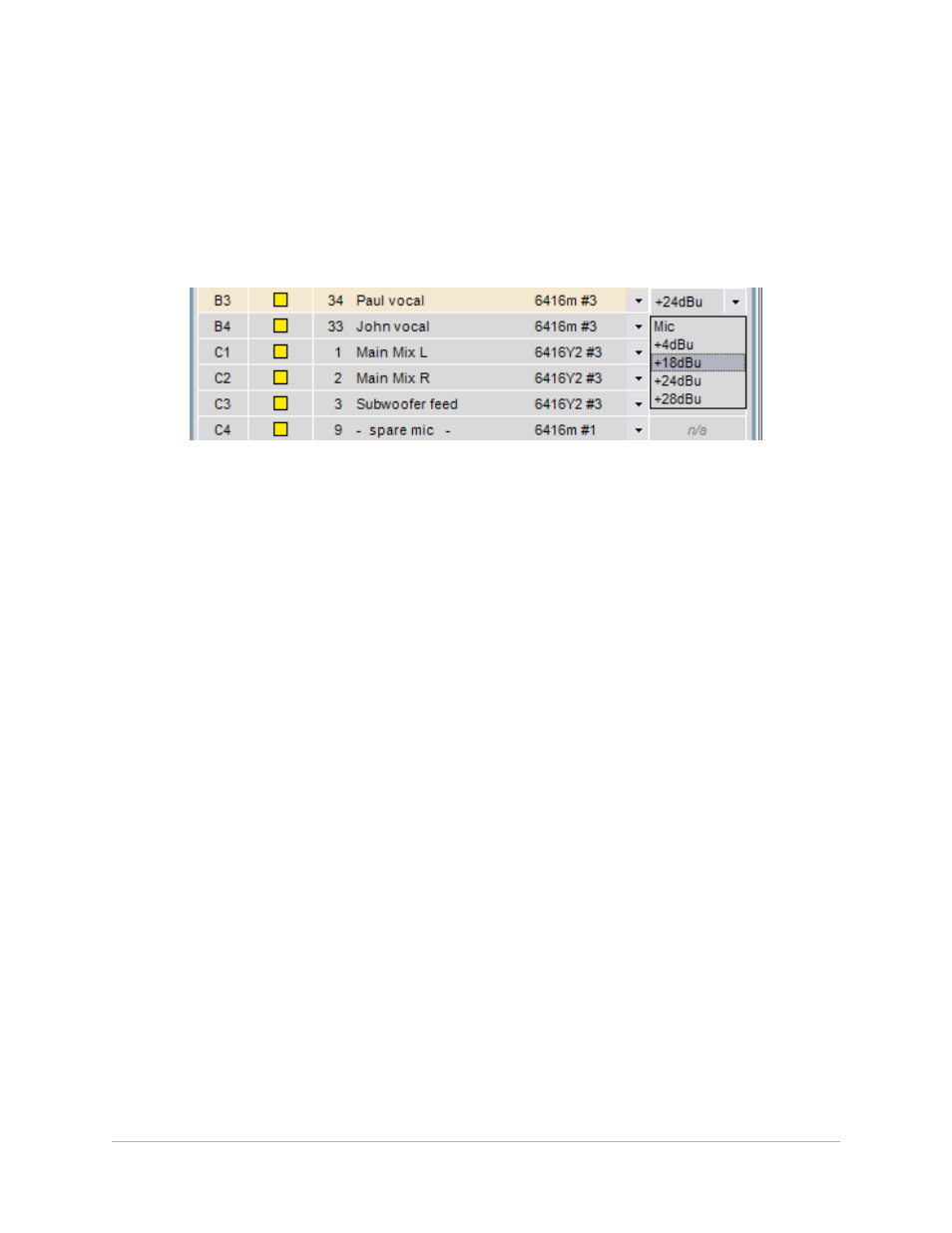

Output Level settings in the drop-down menu
Output Level settings for every output channel are saved with the project and can be saved as part of a Device
Preset if desired.
