omPonenTs
ALL
FRAME
™
Multi-Modular I/O System
F
roNt
P
ANel
led
s
A-Net LED
The A-Net LED lights solid blue to indicate that the F6 Modular I/O Frame is on a valid Pro64 network and that
A-Net data is flowing. The blue LED flashes during a firmware update and at any time the F6 is waiting to enter a
Pro64 network.
Power Status LED
The Power Status LED is a bi-color LED that is used to indicate the two power states that the F6 can operate in. It
will glow green when the F6 running in full power mode; the Power Status LED glows red when the F6 is placed
in standby mode.
1
2
3
4
C4
m
1
2
3
4
C4
o
1
2
3
4
C4
o
1
2
3
4
C4
o
ALLFRAME
A
B
C
D
E
F
Modular I/O Frame
F6
CONTROL
MASTER
STANDBY

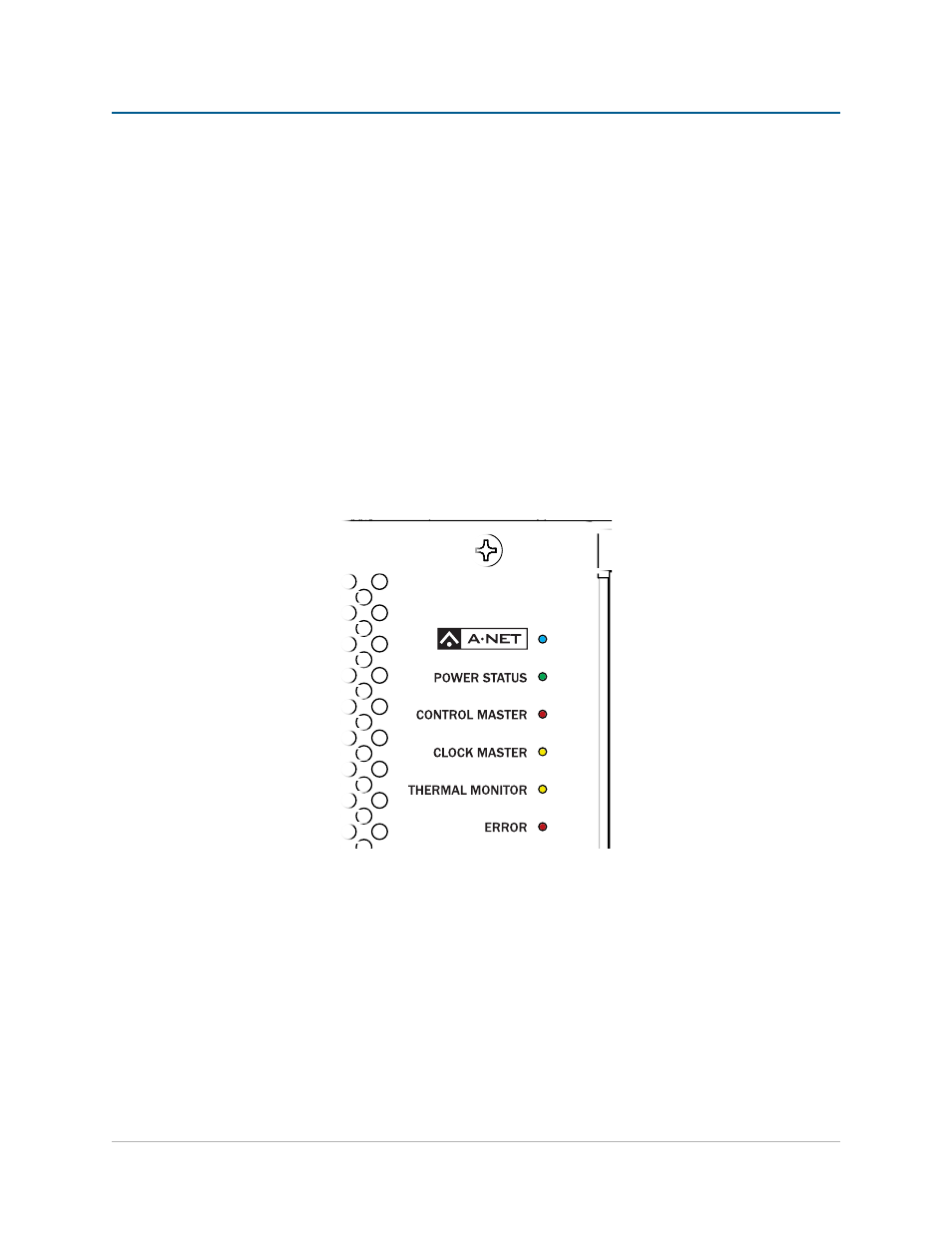

The LED section of the main board panel showing the colors associated with each feature
Control Master LED
When an F6 Modular I/O Frame is used as the network’s Control Master device, the Control Master LED will light
in red. The Control Master status (on/off) is set using the switch found beneath the cover plate in the main board
section of the F6 front panel. Remember that only one Pro64 device per network can be set to be the Control
Master.
