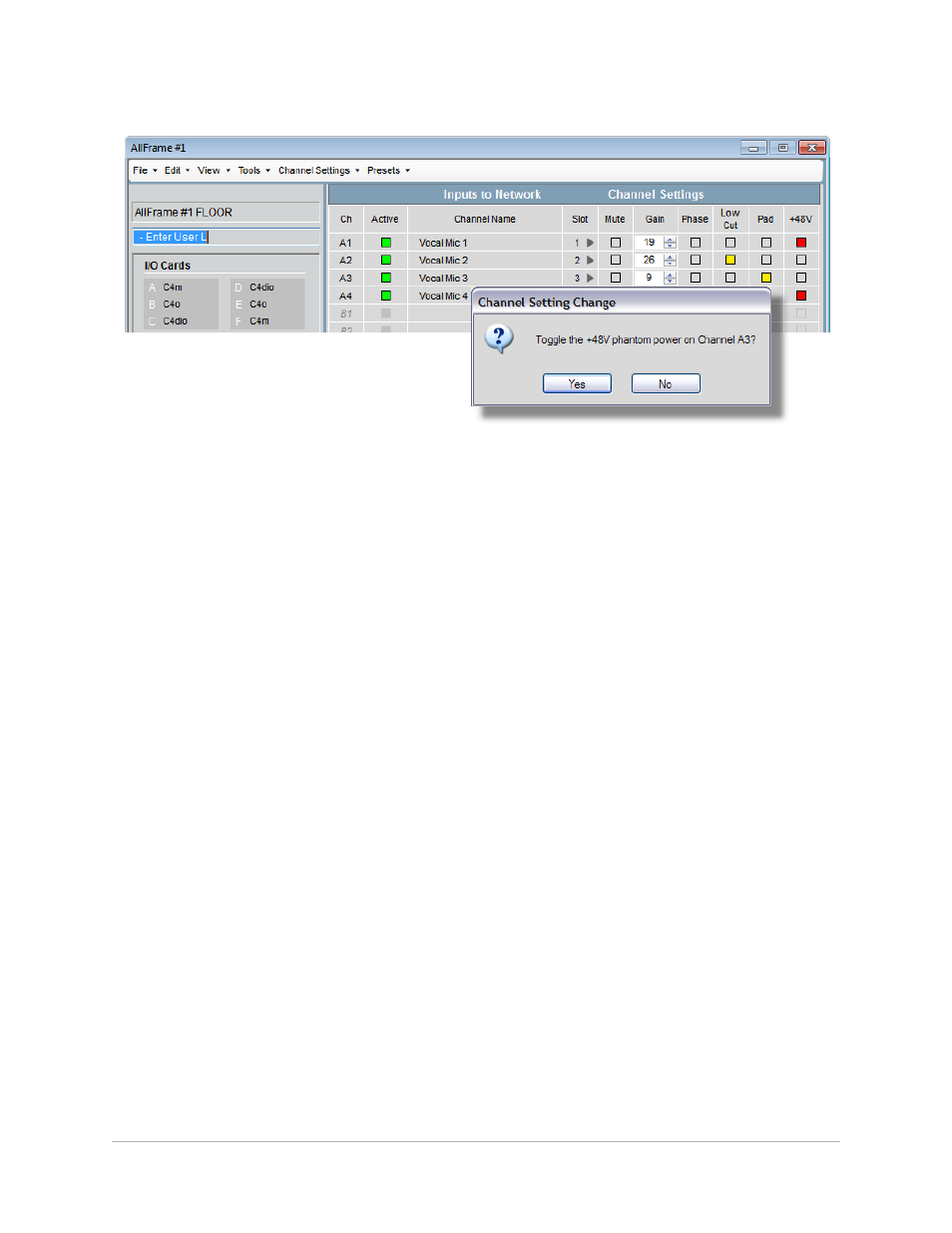

Turning on phantom power or the 24dB Pad requires confirmation.
Channel Gain
Each input channel on the C4m card has an individual gain setting controlled by a numeric readout with up/down
arrows.
Gain is set in 1dB steps and has a range of 0-55dB. For line-level sources, use the 0dB input gain setting or
engage the channel’s Pad before setting a gain level. Channel gain can be controlled from a Yamaha device using
m-control when a 6416Y2 A-Net Interface Card is installed. Each channel’s gain setting is saved as part of a Device
Preset.
In the AllFrame Device Window, click the up/down arrows to choose a gain level, or click in the numeric readout
and type in the desired value. (The
i
NPuts
tO
N
etwOrk
view must be showing to access the gain controls.)
