45 f6 f
ronT
P
anel
C
omPonenTs
ALL FRAME
™
Multi-Modular I/O System
Card Slot ID
The letters A through F are used to designate the six available I/O card slots on the F6 Modular I/O Frame. When
an optional I/O card is installed, that card and its I/O resources will be referenced by letter and channel number in
the Pro64 Network Manager software used to program the AllFrame.
For example, when a C4m Mic/Line Input Card is installed into I/O card slot A in the F6, the four mic preamps on
the card will be referred to as A1, A2, A3, and A4 in the AllFrame Device Window of the software.

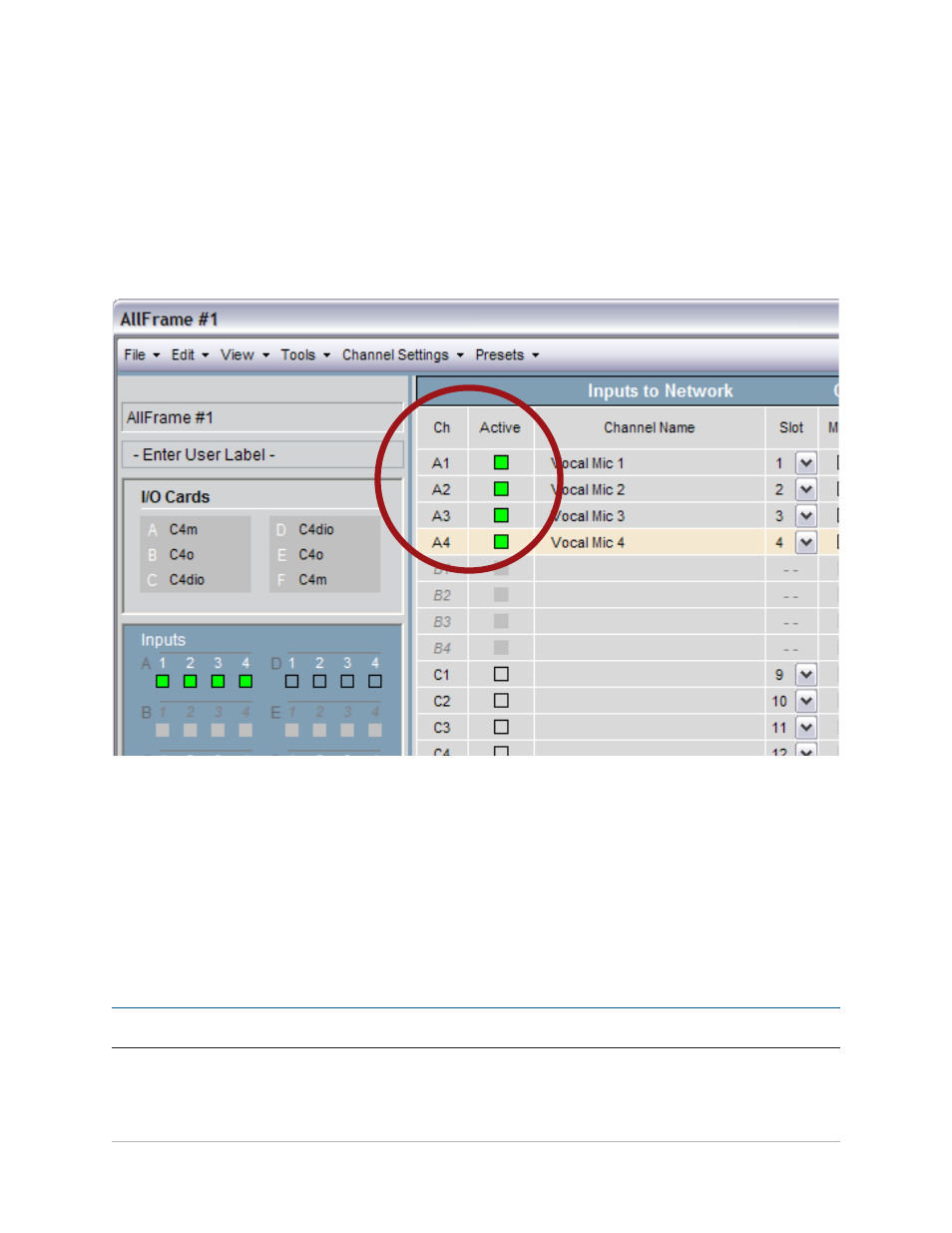

The AllFrame Device Window within Pro64 Network Manager showing a C4m card installed into I/O card Slot A
Installed I/O Cards
Each I/O card installed in the F6 frame appears as a programmable resource in the Pro64 Network Manager
software. The specific set of I/O cards installed in an F6 Modular I/O Frame as well as their installed location (A
through F) is saved as part of the Pro64 Network Manager project and its associated Scenes.
P N
ote
: Always use standby mode or power down the F6 unit before changing I/O cards.
