ALL FRAME
™
Multi-Modular I/O System
Power Over A-Net (PoA)
To use Power Over A-Net with the F6 Modular I/O Frame, the Aviom POA80 power supply is required. This power
supply has been tested and approved for use with the F6 Modular I/O Frame.
Power Over A-Net only works with A-Net Port B on the F6 I/O Frame. Do not connect any other power supply to
the A-Net inputs of the F6.
The POA80 power supply accepts one EtherCon RJ45 Cat-5e or Cat-6 A-Net input coming from a Pro64 device
and outputs the Pro64 A-Net data plus the DC voltage required to power the F6 Modular I/O Frame.
When using the F6 Modular I/O Frame with an approved Power Over A-Net (PoA) power supplies, DO NOT
patch the Cat-5 connection between the Power Over A-Net (PoA) device and the F6 Modular I/O Frame
unit with power applied. Power down the (PoA) power supply first and wait until all of its LED indicators
are off.
Connecting the POA80 Power Supply
Follow these steps to connect a POA80 Power Over A-Net (PoA) power supply to the F6 Modular I/O Frame:
Make sure that the POA80 power supply is disconnected from the AC power source. 1.
Power down the Pro64 source device that will feed the A-Net data to the POA80 power 2.
supply.
Connect a Cat-5e/Cat-6 cable between either A-Net port on the source Pro64 device to the
3.
A-N
et
O
Nly
port on the POA80 power supply.
Connect another Cat-5e from the POA80 power supply’s RJ45 4. DC P
Ower
P
lus
A-N
et
port
to the A-N
et
B port on the F6 Modular I/O Frame.
It is now safe to power up the POA80 power supply and the network’s Pro64 devices. 5.
13.25 in.,
336.55 mm
7.000 in.,
177.80 mm
3.038 in.,
77.21 mm

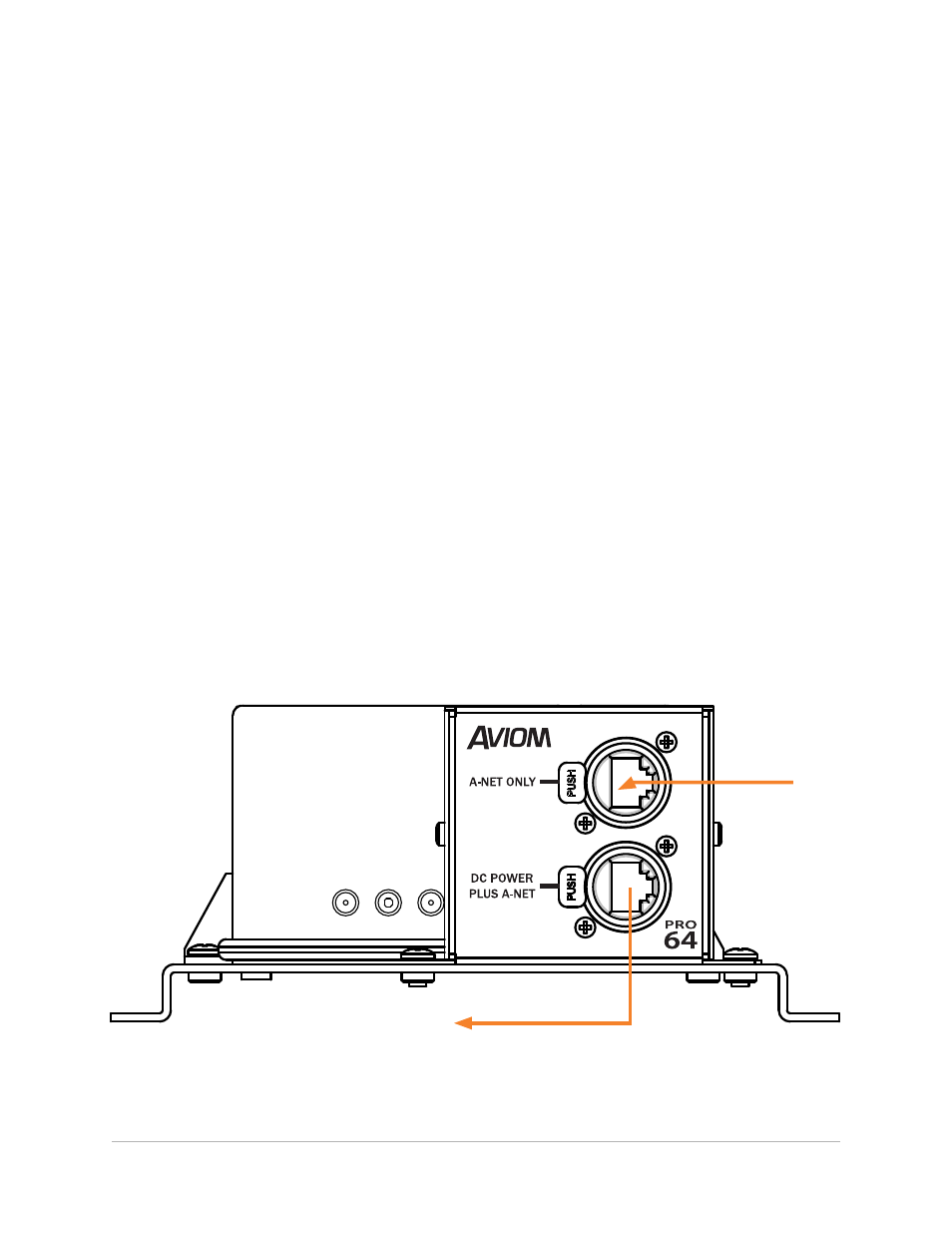

To F6 A-Net Port B
From
Pro64
device
Connect A-Net coming from the Pro64 network to the A-N
et
O
Nly
port of the POA80 power supply. Connect another cable
from the DC P
Ower
P
lus
A-N
et port of the power supply to A-N
et
B port on the F6.
