PFD Operation

SkyView Pilot’s User Guide - Revision S

4-3

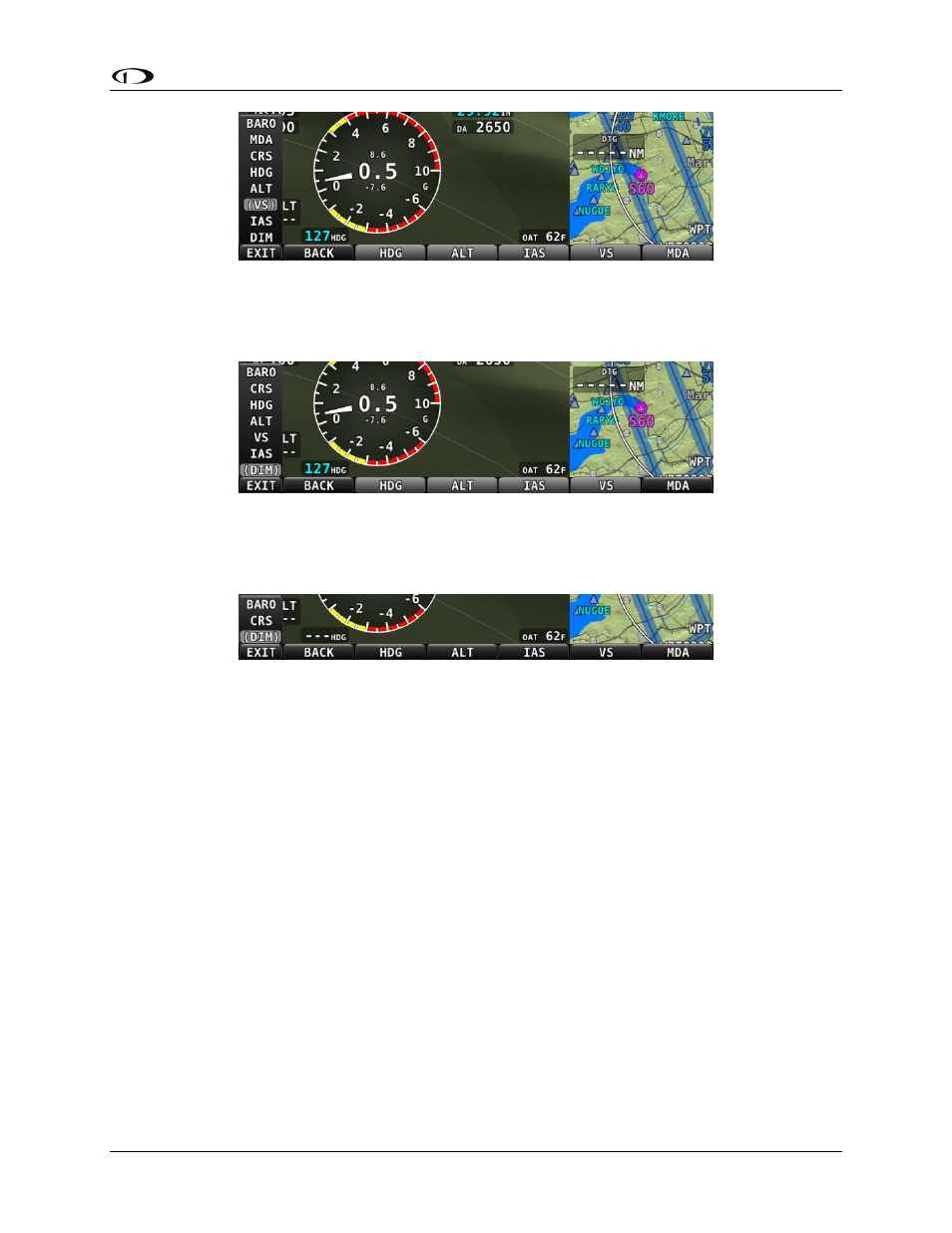

Figure 10–All Bugs On

For example, if the Minimums bug (MDA) is off, it is not an option in the Joystick Menu as
illustrated in Figure 11. The same is true for other bugs.

Figure 11–MDA Bug Off

If all bugs are off, none of them show up in the Joystick Menu as illustrated in Figure 12. Also
note how the heading bug is displayed (i.e., “- - - HDG” above the BACK label).

Figure 12–All Bugs Off
