Dynon Avionics SkyView Pilots Users Guide User Manual
Page 214

11-12
SkyView Pilot’s User Guide - Revision S

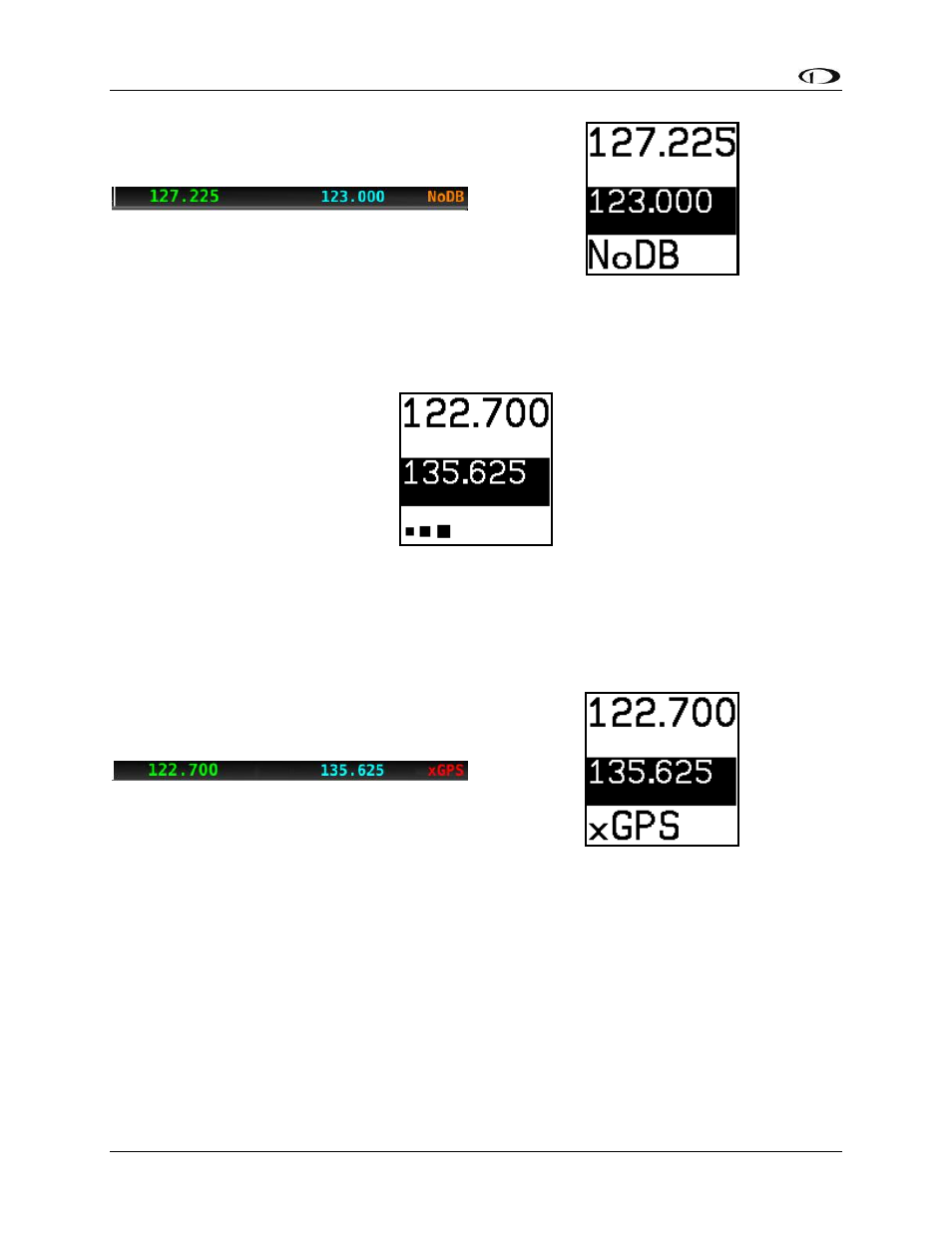

Waiting for Data
The loaded airport area of the control panel will show an animating scrolling black cursor
momentarily when it is waiting for airport data from SkyView:
Figure 215 - Scrolling Cursor
No GPS
The control panel and SkyView top bar annunciate that SkyView does not have GPS position
information in the following way:
Without GPS position, airport loading and TWR/ATIS/GND/ATC will not be available.
You may see this annunciation as SkyView starts up or when the aircraft does not have GPS
reception (for example, when inside the hangar).
Stuck Mic
If a transmission lasts more than 30 seconds, the mic is assumed to be stuck. Transmitting is
discontinued, and both the top bar and control panel annunciate “STUC” in the TX/RX
indication area.
