SkyView Touch (SV-D1000T) Operation
SkyView Pilot’s User Guide - Revision S
9-3

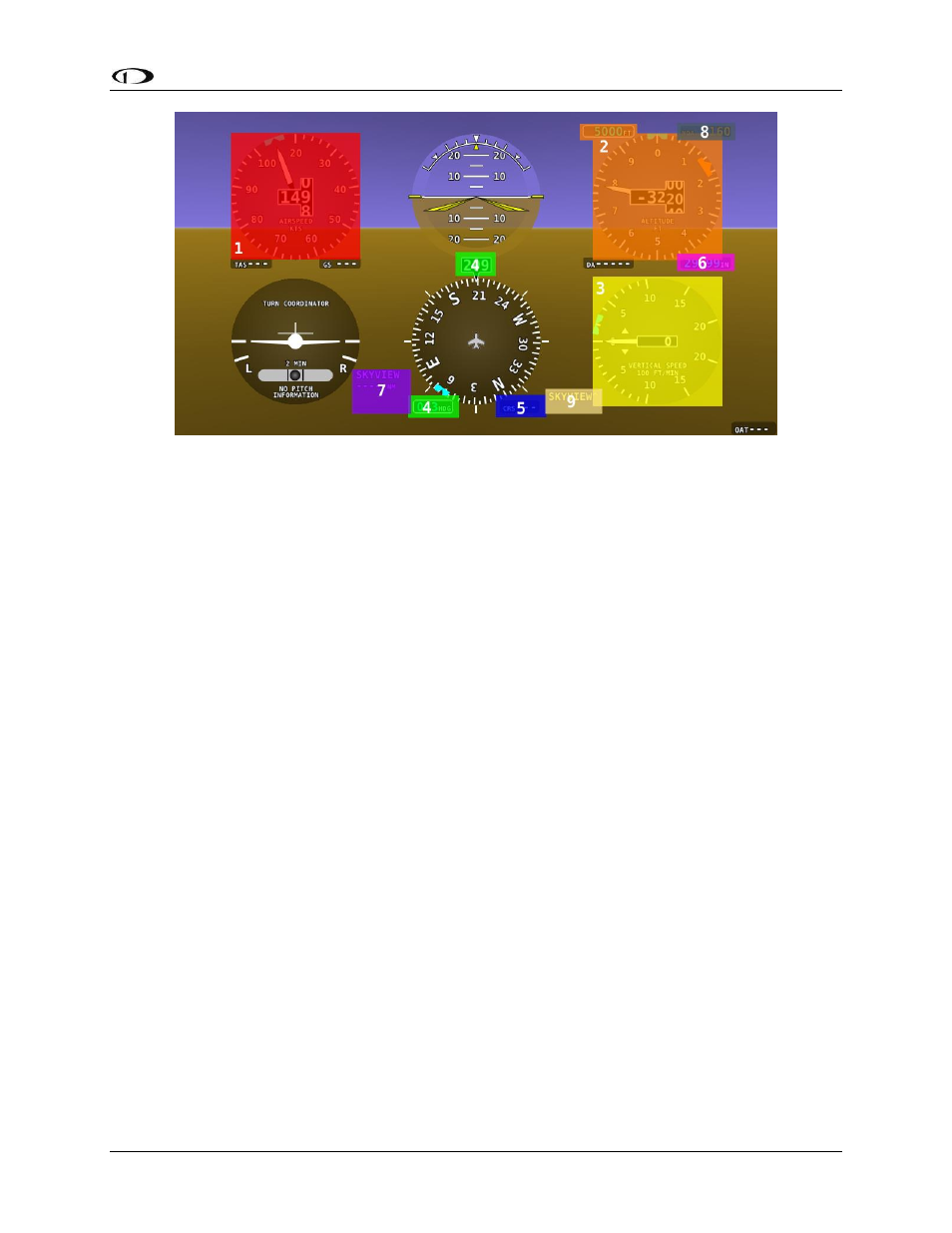

Figure 205 - Six Pack Touch Regions
Touch Region functions:
1. Assigns knob to IAS bug
2. Assigns knob to ALT bug
3. Assigns knob to VS bug
4. Assigns knob to HDG or TRK bug
5. Assigns knob to CRS bug
6. Assigns knob to BARO
7. Equivalent to pressing HSI SOURCE button; cycles the HSI through the different
navigation data sources that are connected to the SkyView system.
8. Assigns knob to MDA bug (if MDA bug is turned ON in the PFD menu)
9. Equivalent to pressing MAIN MENU > PFD so that the pilot can adjust the bearing needle
sources.
Engine Operations
Touching anywhere on the EMS page will open the Engine menu (MAIN MENU > EMS).
Map Operations
The map responds to touch in much the same way you’ve come to expect from modern tablets
and phone maps. You can pan, zoom, point, pinch, select and navigate with simple touch-based
gestures. Figure 206 shows the available touch “buttons” on the map.
