Dynon Avionics SkyView Pilots Users Guide User Manual
Page 132

SV-MAP-270 Navigation Mapping Software
7-42
SkyView Pilot’s User Guide - Revision S

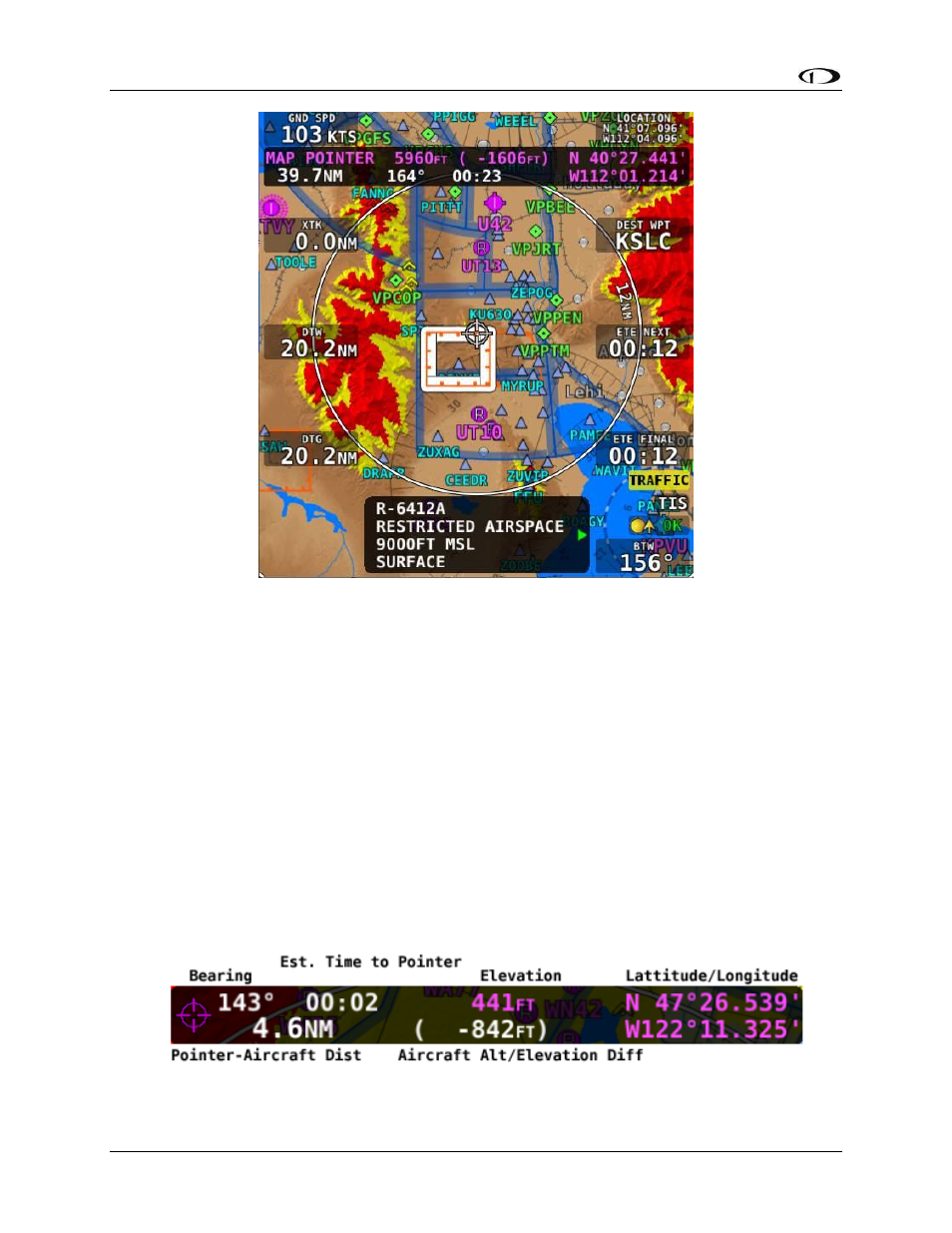

Figure 117 - Map Panning Mode
To exit Map Panning Mode, press or “click” the center of the joystick. The map will revert to
following the aircraft. Pressing the joystick again will return to the Map Panning Mode at the
last known Map Pointer position.
In addition to the Map Pointer, a Map Pointer Information Bar displays the following
information about the Map Pointer:
Latitude / Longitude
Distance between the Map Pointer and the aircraft
Magnetic bearing from the aircraft position to the Map Pointer.
The estimated time, in minutes, that it would take to reach the Map Pointer if you were
to fly directly to it at the current GPS ground speed.
Elevation of the terrain underneath the Map Pointer, along with the difference between
the aircraft’s current GPS altitude and the terrain elevation (in parentheses.)
Figure 118 - Map Pointer Information Bar
