Skyview top bar com radio status overview -2, Using your com radio -2 – Dynon Avionics SkyView Pilots Users Guide User Manual
Page 204

11-2
SkyView Pilot’s User Guide - Revision S

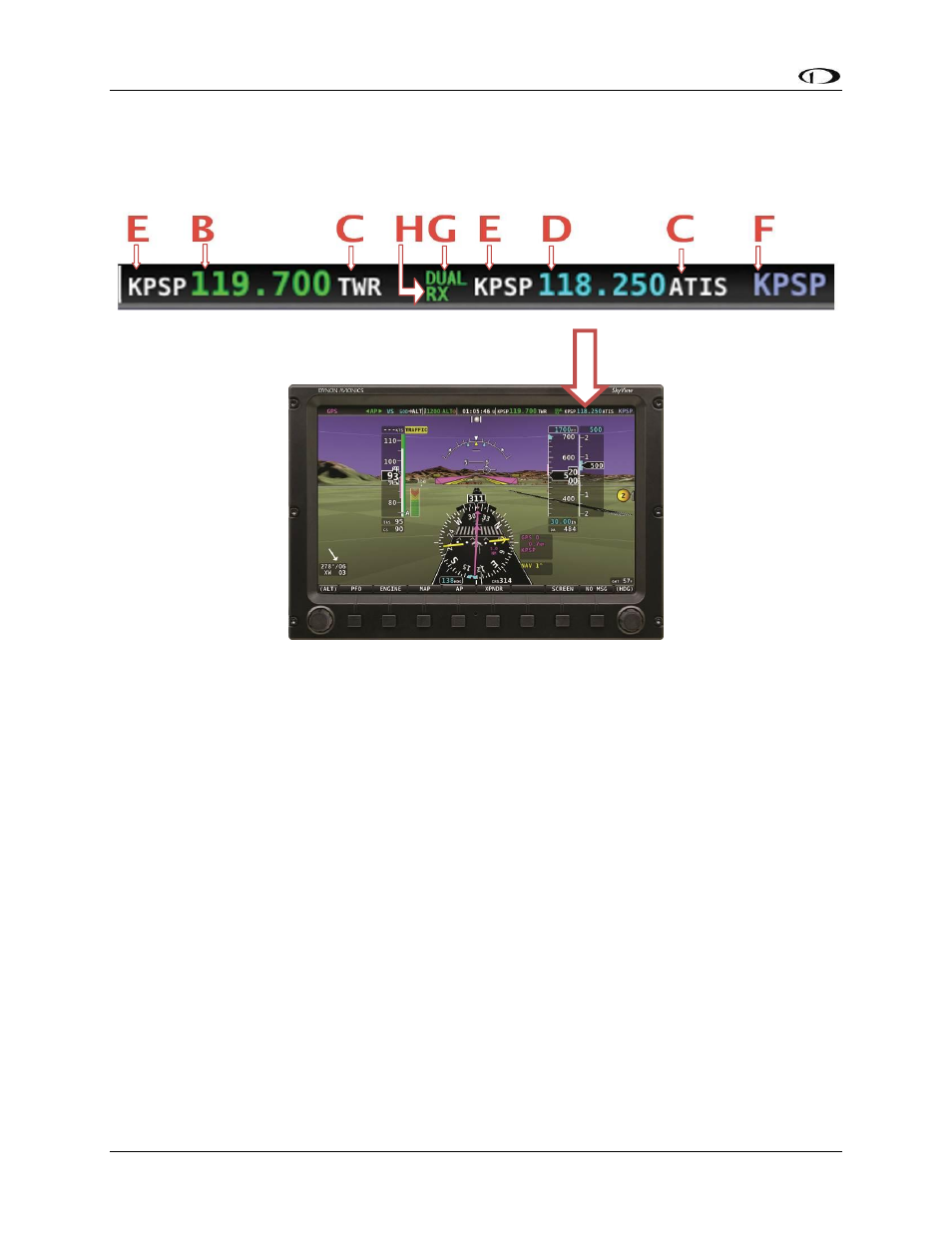

SkyView Top Bar COM Radio Status Overview
COM Radio Status is also reflected in the top bar of your SkyView displays. The identification
lettering (B-I) depicted below matches the figure above:
Using your COM Radio
Power
The SkyView COM Radio normally powers on and off with your SkyView system. Press and hold
the Volume Knob / Power Button to manually turn the SkyView COM Radio off and on.
Volume
Use the volume knob to adjust the radio volume. You may want to use Squelch Override –
covered below, to aid in finding a comfortable volume level.
Transmitting and Receiving
The SV-COM-C25 and SV-COM-X83 transmit on the active frequency only, and normally
receives only on that frequency. When transmitting, the following indications are shown:
