SV-MAP-270 Navigation Mapping Software
7-16
SkyView Pilot’s User Guide - Revision S

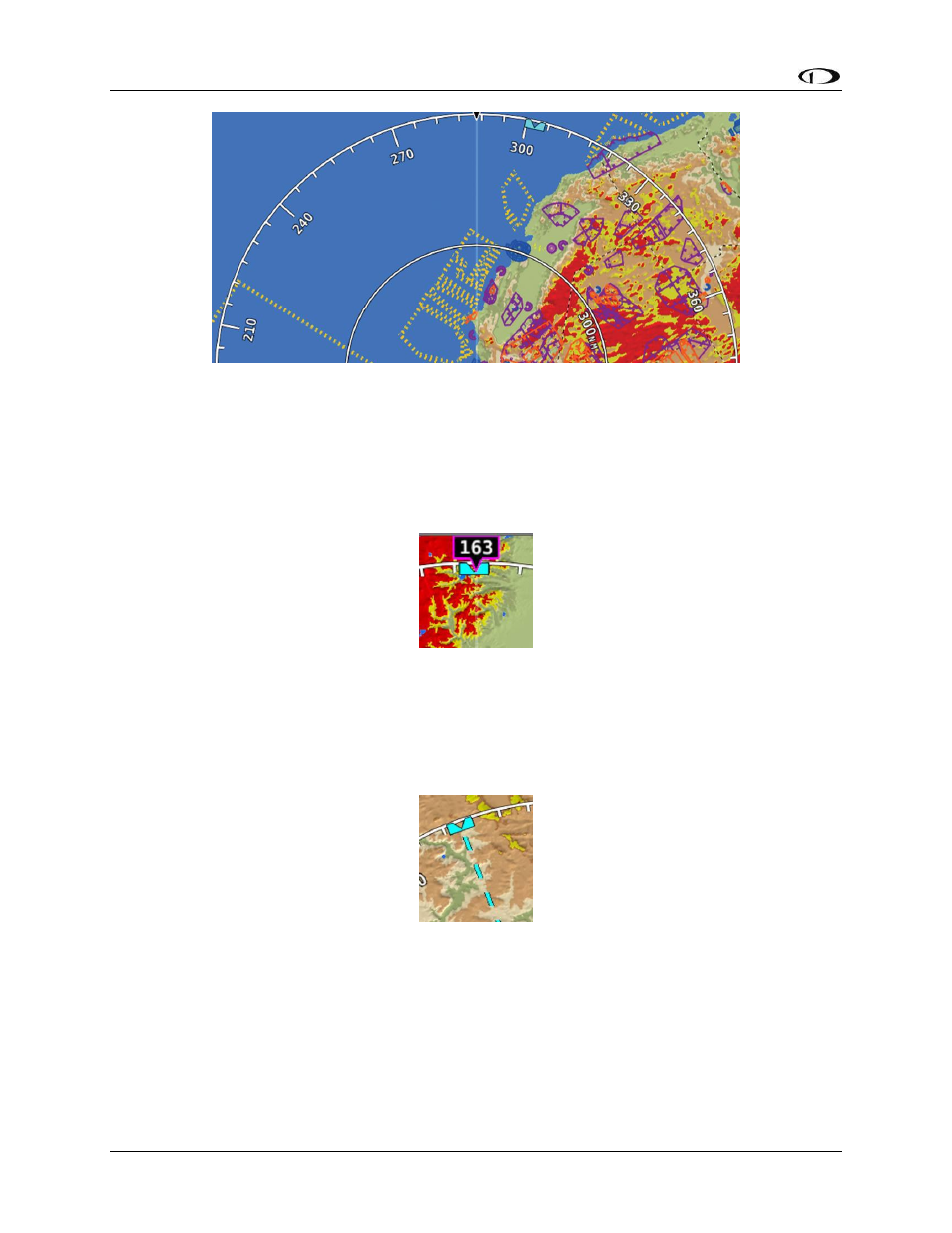

Figure 83–Ground Track Arc
The current ground track as shown in Figure 84 is displayed in two ways: the digital readout and
the white ground track line. The border around the digital readout is normally magenta when
based on the GPS ground track. When the aircraft is not moving fast enough for SkyView to
reliably determine the ground track direction, magnetic heading is used instead. In this case,
the border around the digital readout will be white.
Figure 84–Current Ground Track
The heading bug as shown in Figure 85 is represented with a cyan marker. When moving the
heading bug, a cyan colored lubber line that extends from the aircraft to the bug is displayed as
well. Reference the Heading/Track Bug Section for instructions on how to adjust the heading
bug.
Figure 85–Heading Bug
The north marker as shown in Figure 86 is represented with a yellow arrow marked with an “N”
and points to True North.
