Installing a Replacement Hard Drive
It may become necessary to replace the internal Hard Disk Drive (HDD) on-site. Follow
these steps to install a replacement HDD.
Central Station Computer HDD replacement
Open the CPU Chassis
1. Shut down the Connex CS Central Station application, and power down the CPU.
2. Carefully remove all cables from the back of the CPU and remove it from the central
station.
3. Place the CPU on a flat working surface, with the vented cover panel facing up.
4. Facing the rear of the CPU with the video connections in view, use a #2 Phillips
screwdriver to remove the three screws securing the top vented cover to the chassis.
Refer to
“Figure C-1: Remove the Top Cover Screws” .

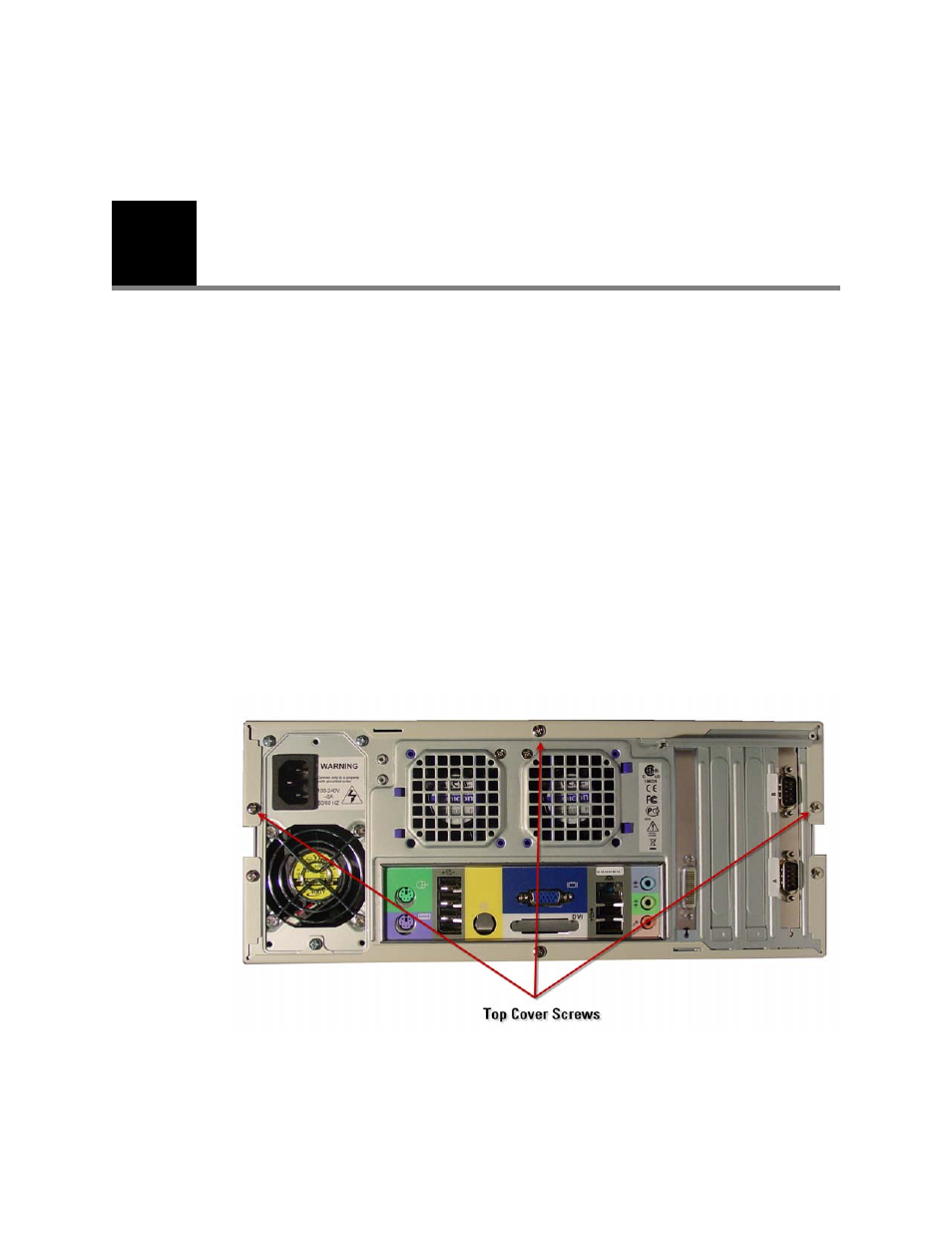

Figure C-1: Remove the Top Cover Screws
5. Place a hand on each corner of the top cover. While putting pressure on your fingers,
use your thumb to push the chassis forward. This will cause the cover to separate
from the chassis base. Refer to
“Figure C-2: Slide Top Cover Towards Rear of CPU”
on page 142.
