136 Installing Video Cards Welch Allyn

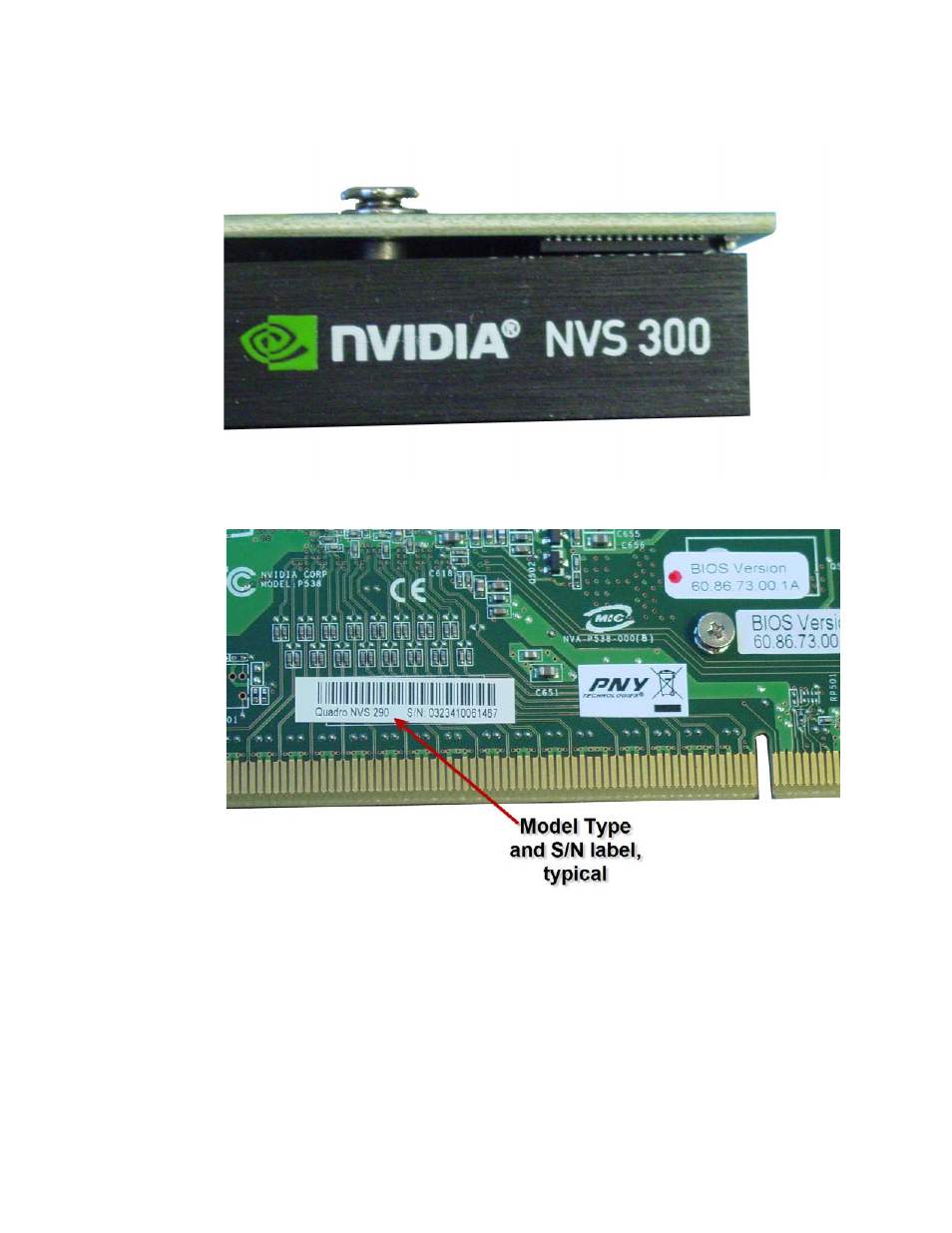

Figure C-7: Card Edge Label, NVS 300
Figure C-8: Video Card Barcode Label with Model / Type Information
4. Additionally note the different types of PCI-E video cards and their corresponding
connectors on the CPU motherboard. Refer to
“Figure C-9: PCI-E Video Card
Connector Types” on page 137 for examples of different type of PCI-E video cards.
