• To remove memory DIMMs, see “Replacing or Removing Memory DIMMs” in Section 3.3.
• To remove the heat sink(s) and processor(s), see “Removing a Processor” in Section
3.3.
11. Loosen all nine screws holding the server board to the chassis. See Figure 54 for
the location of these screws.
12. Tilt the server board up at the front edge and lift it from the chassis being
careful to clear the rear panel of the chassis.

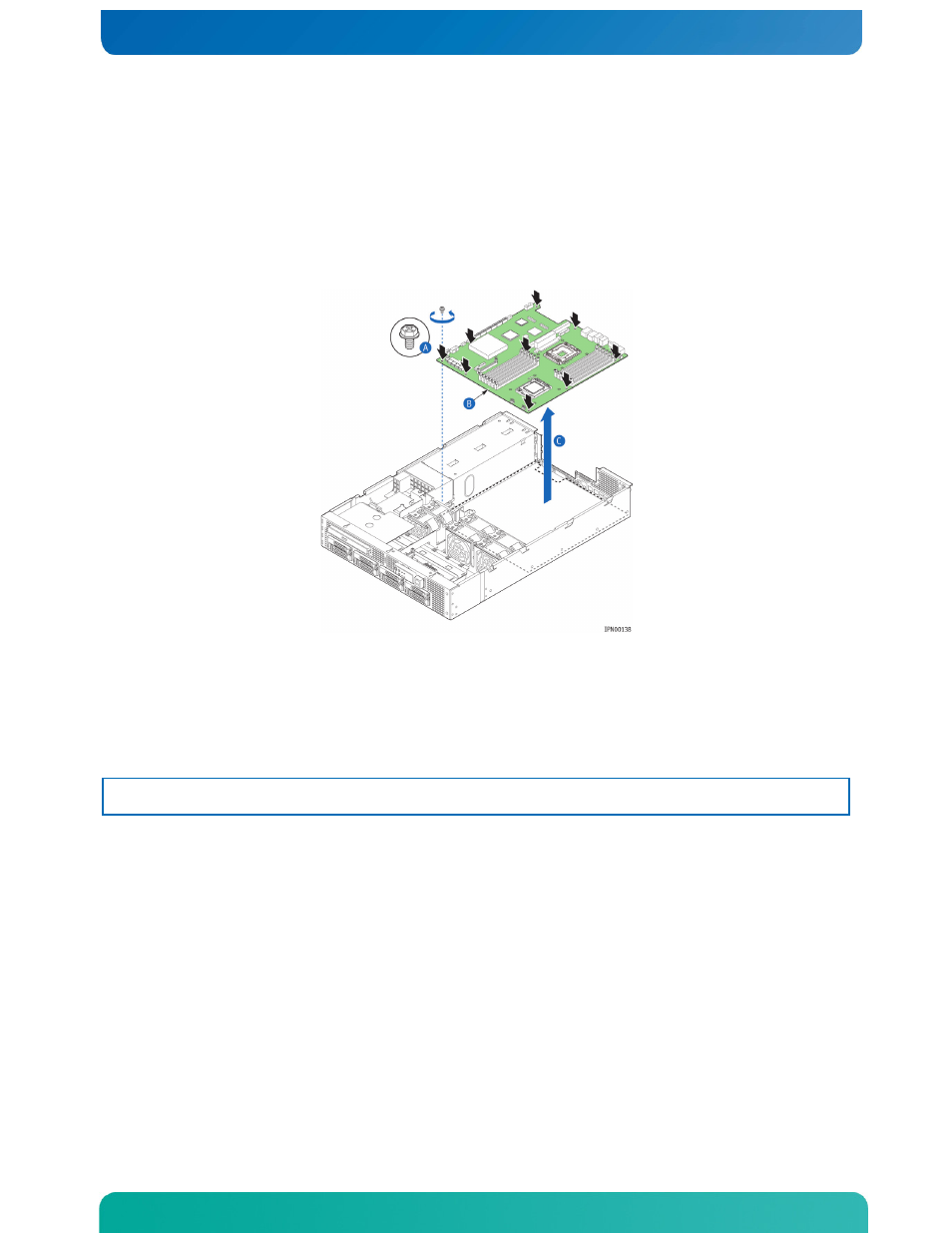

Figure 54. Removing the Server Board
Installing the New Server Board
1. Set the replacement server board into place.
Insert the rear edge of the board first and line up the I/O ports with the slots in
the rear panel of the chassis.
2. Make sure all three self-aligning standoffs go through the holes at the front of
the board. (Figure 54, “B”)
NOTE: If the standoffs are misaligned when the board is screwed down the holes will be
damaged and the standoffs may be cross-threaded.
3. Fasten the server board to the chassis base with the nine screws that were removed
and saved.
If the new server board does not have components pre-installed and you are re-using
components from the old server board, install components as follows”
•
To install memory DIMMs, see “Installing Memory DIMMs” in Section 3.3.
• To install heat sink(s) and processor(s), see “Installing a New Processor” in
Section 3.3.
4. Re-install the I/O expansion module(s) if used. For information about how these
cards are installed, see Section 4.9, “Installing an I/O Expansion Module”.
5. Re-install the GCM4 module if used. For information about how this card is
installed, see Section 4.10, “Installing a Remote Management Module”.
6. Re-install the bridge board. For instructions, see “Re-Installing the Bridge Board”
in Section 5.3.
