1. Remove the front chassis cover. For instructions, see “Removing the Front Cover” in

Section 3.2.

2. Remove the front panel bezel from the chassis to access the optical device slot.
3. Loosen the shipping screw that fastens the filler panel to the chassis and remove

the filler panel. (Figure 42, “A”)

NOTE: Keep the filler panel for use later if the optical drive is removed from the

server. The filler panel is required for EMC if there is no optical drive

installed.

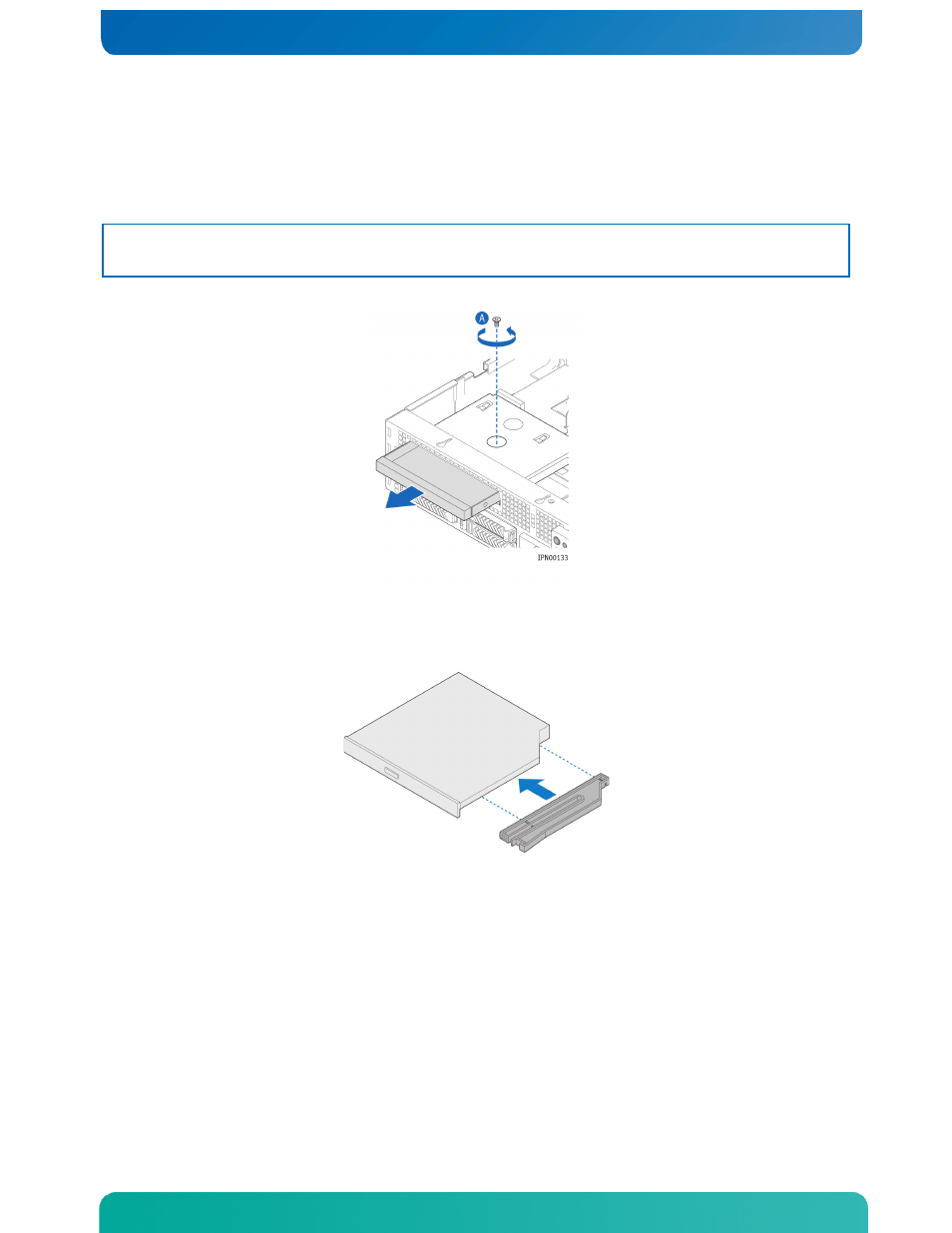

Figure 42. Removing the Optical Drive Filler Panel

4. Align the pins in the blue plastic retention mechanism that comes with the kit to

the corresponding holes in the optical drive. (Figure 43)

Figure 43. Attaching the Retention Mechanism to the Optical Drive

5. Holding the drive and the retention mechanism together, slide the optical drive

into the drive opening on the front of the chassis and push until the drive is

seated against the back wall of the drive bracket . (Figure 44, “A”)
