The server board has several 3-pin jumper blocks that can be used to configure,
protect, or recover specific features of the server board. This section shows the
jumper blocks available and what they do. For detailed information about using these
jumpers, see the Intel® Server Board S5520UR Technical Product Specification, Chapter
6, “Jumper Blocks”.
Pin 1 on each jumper block is identified by this symbol on the silkscreen: ▼

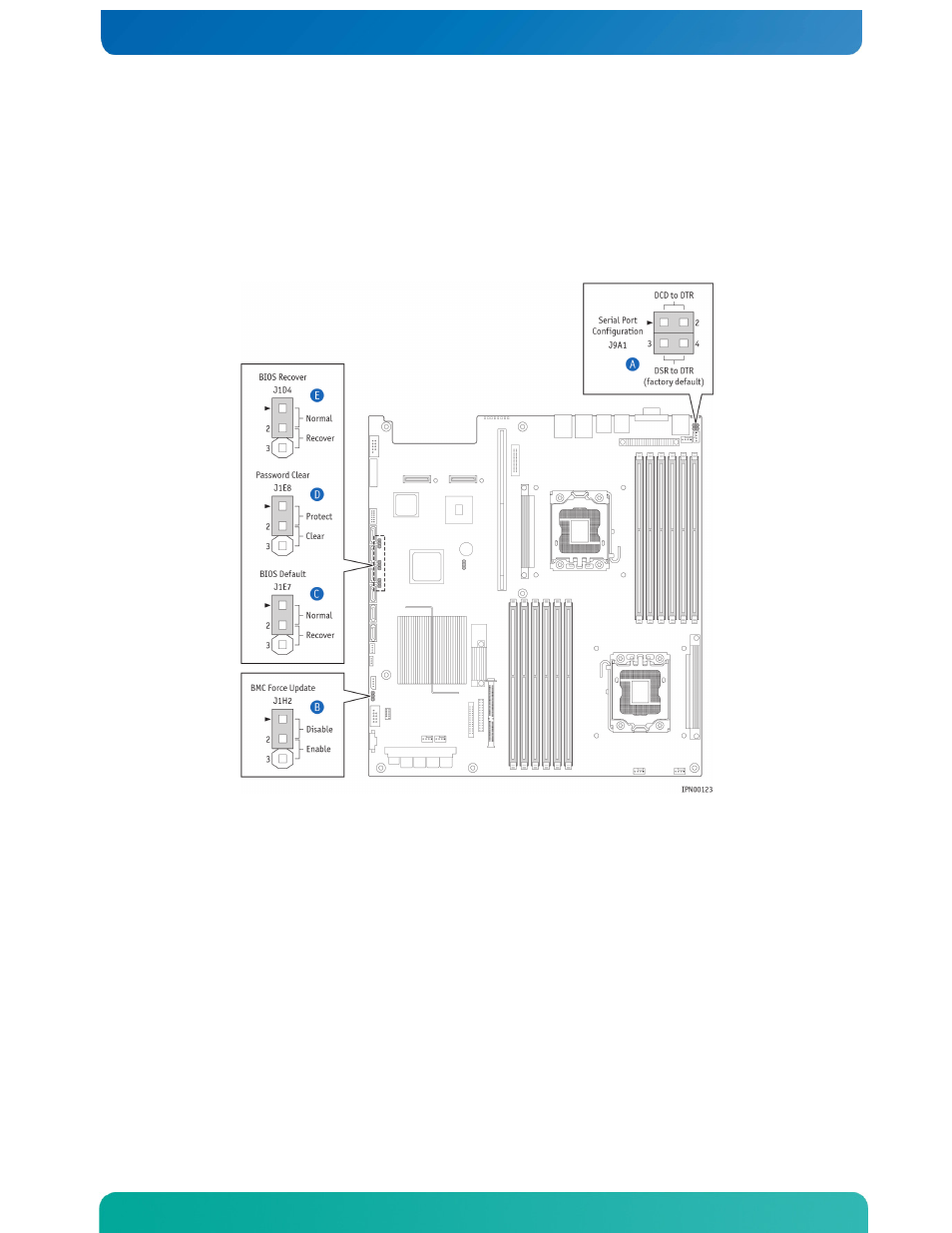

Figure 23 shows the jumper blocks
Figure 23. Jumper Blocks (J1C3, J1D1, J1D2, J1E32)
Table 3. Server Board Jumpers (J1E7, J1E8, J1D4, J1H2)
