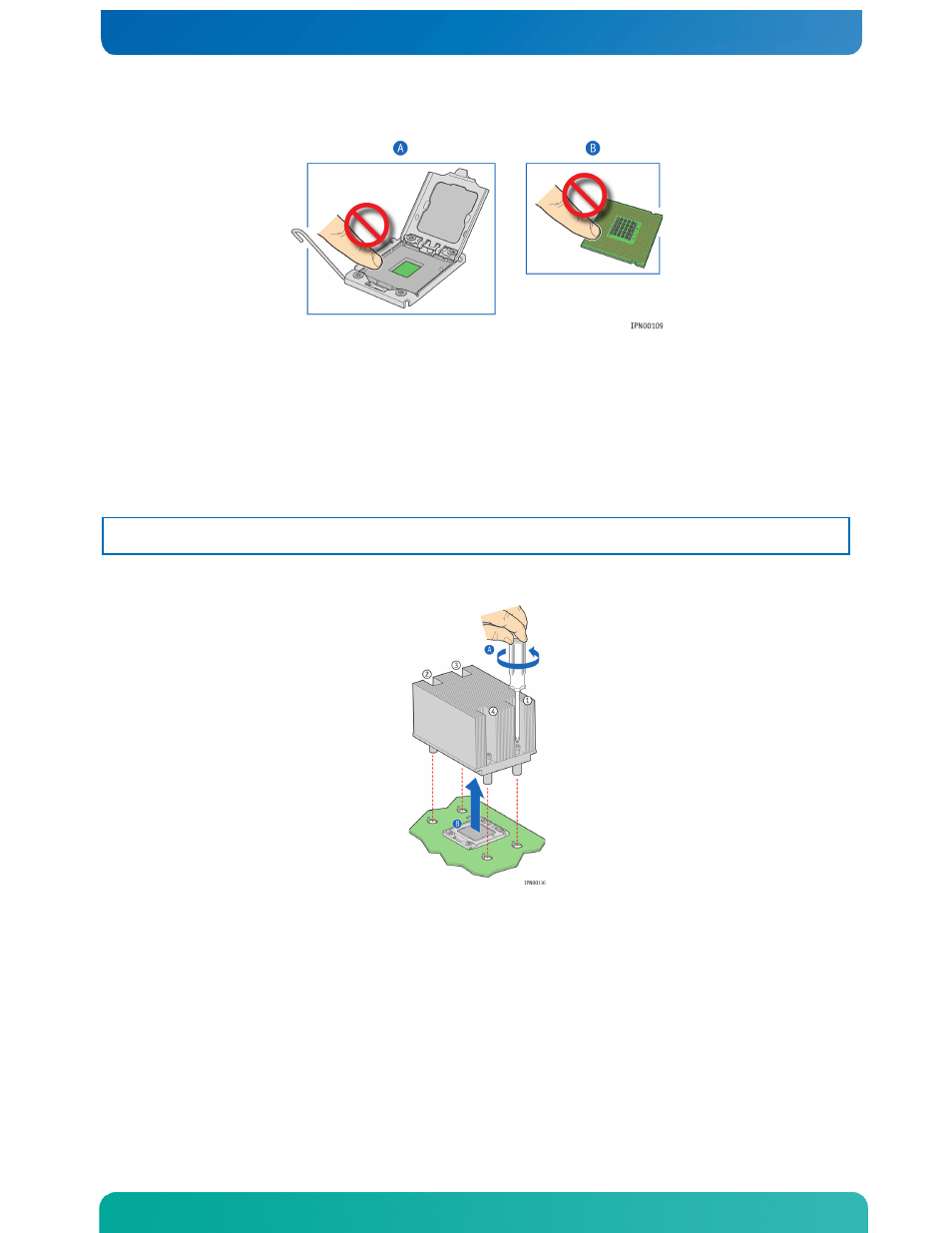

Figure 15. Cautions for Handling Processors
Removing a Processor
1. Loosen the four captive screws on the corners of the heat sink with a #2 Phillips
screwdriver. (
Figure 16, “A”)
2. Twist the heat sink slightly to break the seal between the heat sink and the
processor. (“B”)
3. Lift the heat sink from the processor. If it does not pull up easily, twist the heat
sink again.
Note: Do not force the heat sink from the processor. Doing so could damage the
processor.
Figure 16. Removing the Heat Sink
4. Open the socket by pushing the lever handle down and away from the socket
to release it. (“A” and “B” in
Figure 17)
Figure 17. Using the Socket Lever
