12
Table X. IP Network Server NSN2U Components
Item Description Item Description
A
RJ45 COM2 port and USB
port (2 connectors)
H
Intel server board
T5520UR (baseboard)
B
Control panel and status
indicators
I Two CPUs (CPU 1 shown)
C
SAS or SATA hard disk
drives (up to eight)
J
Two sets of DDR3 memory
DIMMs (CPU 2 DIMM slots
shown)
D Optical drive K System fans
E
Power supply cage for
two power supply modules L
Front panel board with
optional USB flash drive
F
Riser card assembly
(containing both full-
height and low-profile
riser cards
M LED/switch board
G
PCI riser for 3x PCIe,
5x PCIe butterfly, or 2x
PCI-X +3x PCIe butterfly
2.2 NSN2U Server Front Panel

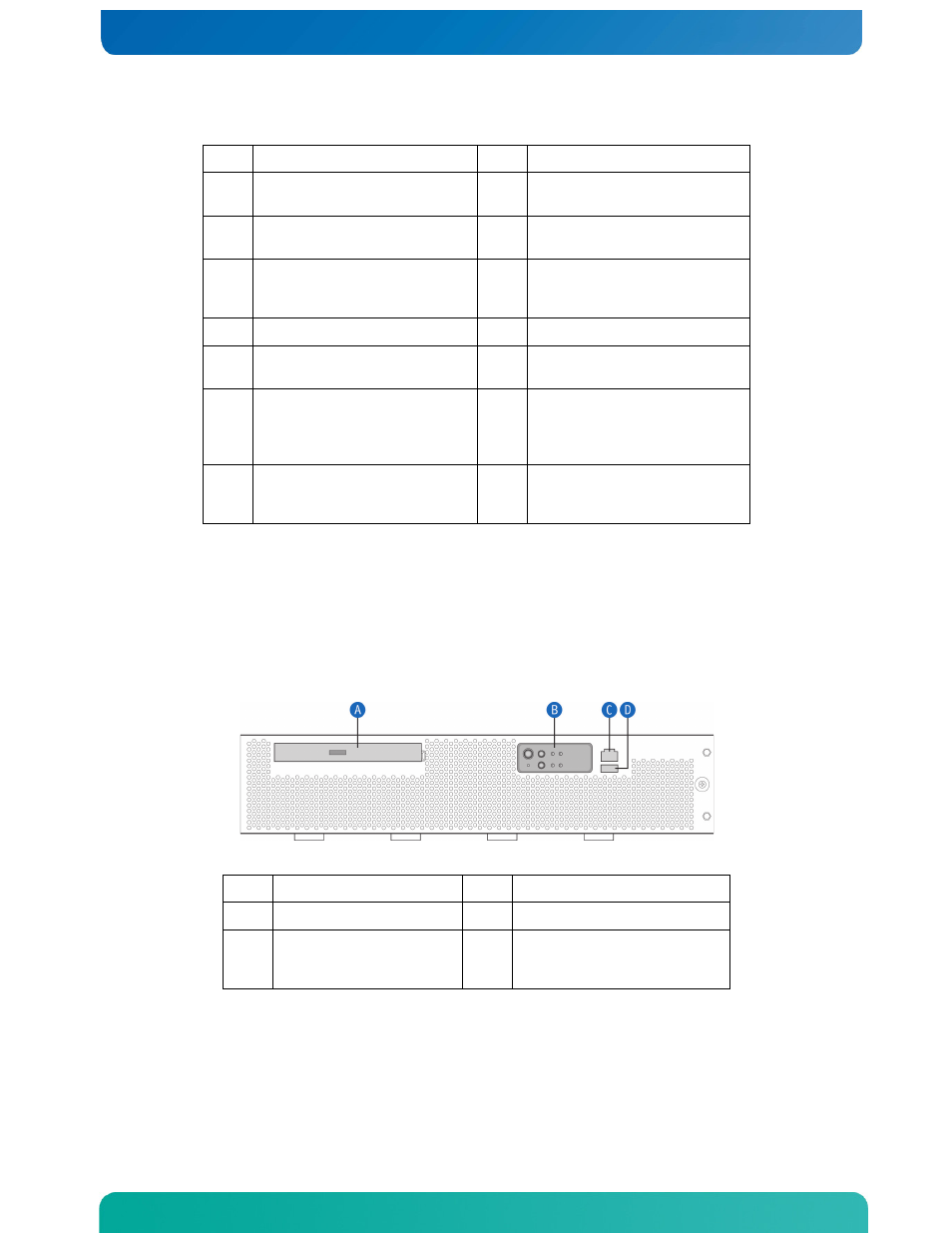

Figure 3 shows the front panel of the NSN2U server with the bezel installed.
Figure 3. NSN2U Server Front View (Bezel Installed)
Item Description Item Description
A Optical drive C RJ45 Com2 port
B Front panel control
buttons and status
indicator LEDs
D USB port
Figure 4shows the front panel of the NSN2U server with the bezel removed.
