40
If the drive bay currently has a plastic filler panel instead of a drive
carrier, release the panel by squeezing the lever on the right side.
4. Pull the drive carrier out of the chassis.

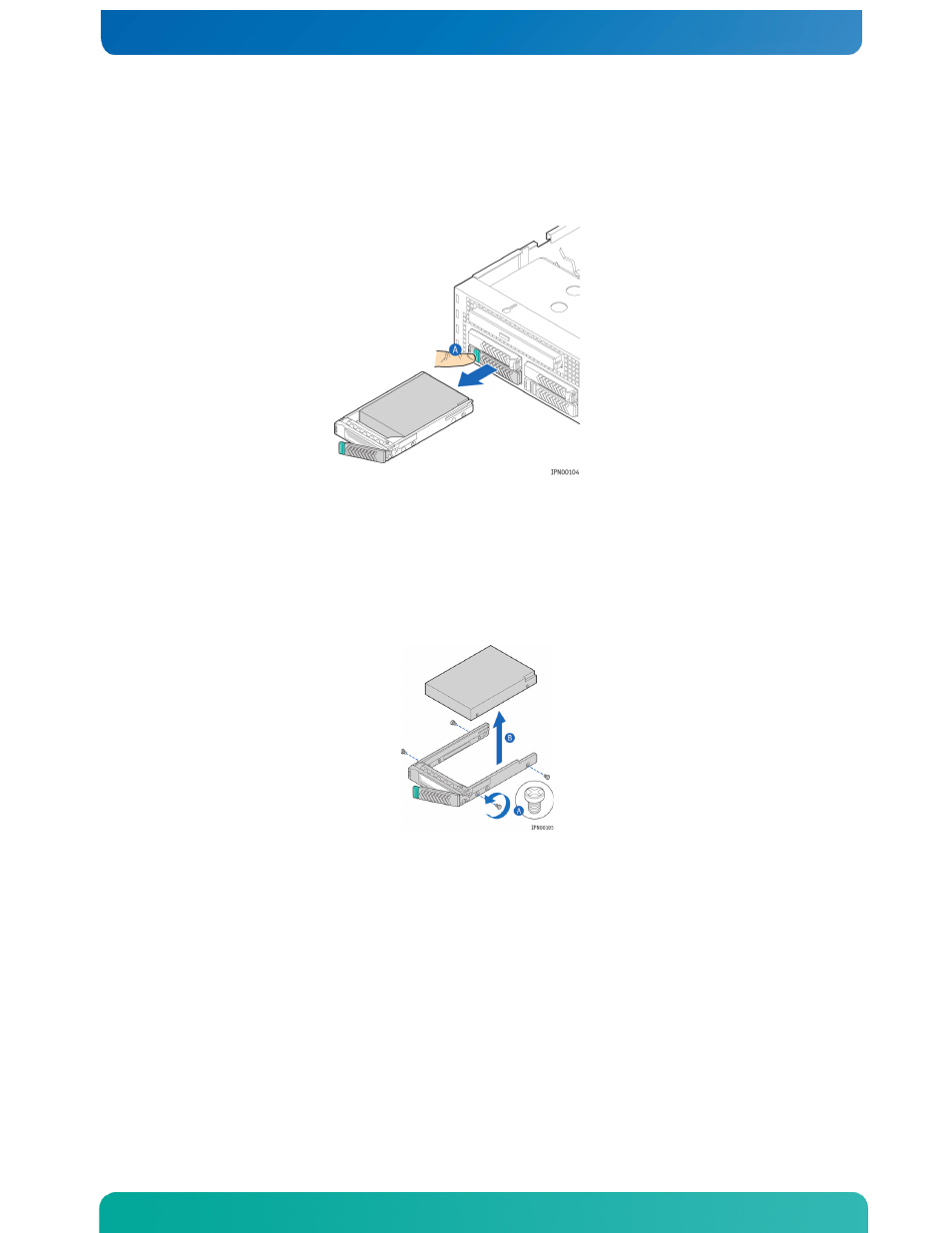

Figure 25. Removing the Drive Carrier
Installing a Hard Drive in a Carrier
1. If a drive is already installed (that is, if you are replacing the drive), remove it
by unfastening the four screws that attach the drive to the drive carrier. (Figure
26, “A”)
Set the screws aside for use with the new drive.
2. Lift the drive out of the carrier. (“B”)
Figure 26. Removing a Hard Drive
3. Install the new drive in the drive carrier (Figure 27, “A”) and secure the drive
with the four screws that come with the carrier. (“B”)
Figure 27. Installing a Hard Drive
