Installing System Components 91
Removing a Hard Drive From a Hard-Drive Bracket
Remove the screws from the slide rails on the hard-drive bracket and separate
the hard drive from the bracket. See Figure 3-8.

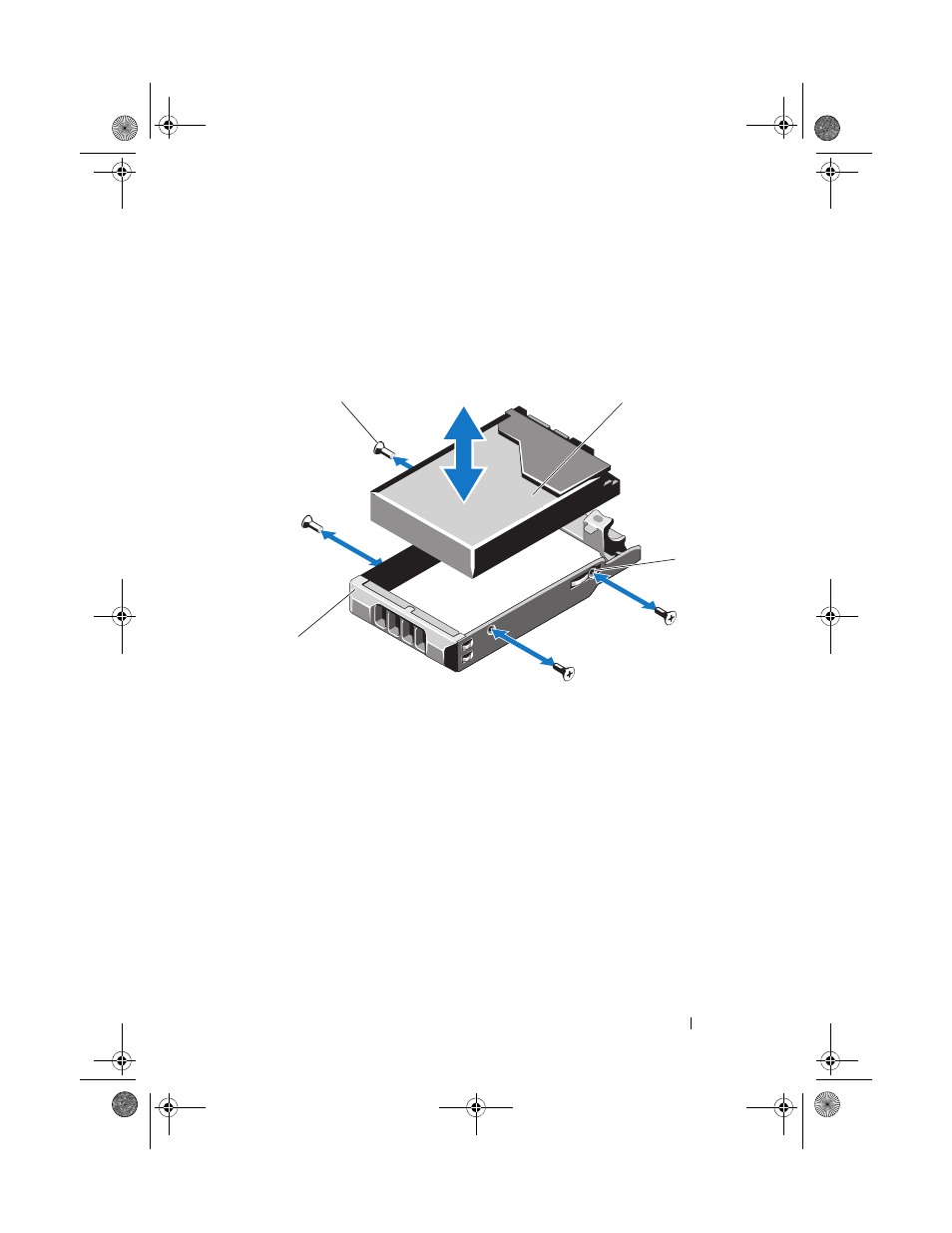

Figure 3-8. Removing and Installing a Hard Drive Into a Hard-Drive Bracket
*Screws are supplied along with the hard drives ordered from Dell.
Installing a Hard Drive Into a Hard-Drive Bracket
1 Insert the hard drive into the hard-drive bracket with the connector end of
the drive at the back. See Figure 3-8.
2 Align the holes on the hard drive with the back set of holes on the
hard-drive bracket.
When aligned correctly, the back of the hard drive will be flush with the
back of the hard-drive bracket.
3 Attach the four screws to secure the hard drive to the hard-drive bracket.
1 screw (4)* 2 hard drive
3 SAS/SATA screw hole 4 hard-drive bracket
1 2
3
4
