About Your System 17
Back-Panel Features and Indicators

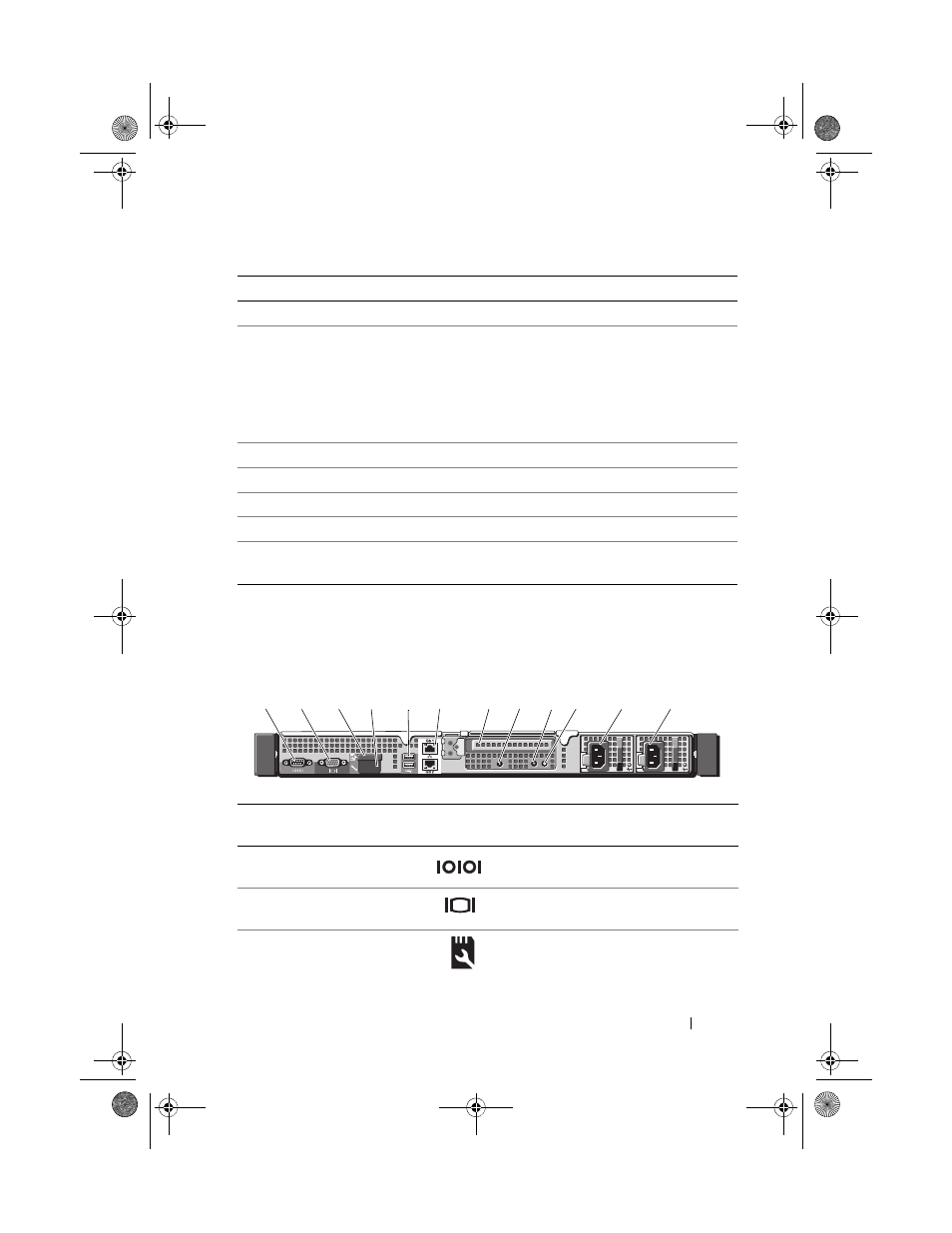

Figure 1-4. Back-Panel Features and Indicators
Drive-Status Indicator Pattern (RAID Only) Condition
Blinks green two times per second
Identify drive/preparing for removal
Off Drive ready for insertion or removal
NOTE: The drive status indicator remains
off until all hard-drives are initialized after
system power is applied. Drives are not
ready for insertion or removal during this
time.
Blinks green, amber, and off Drive predicted failure
Blinks amber four times per second Drive failed
Blinks green slowly Drive rebuilding
Steady green Drive online
Blinks green three seconds, amber three
seconds, and off six seconds.
Rebuild aborted
Item Indicator, Button, or
Connector
Icon Description
1 serial connector Connects a serial device to the system.
2 video connector Connects a VGA display to the system.
3 VFlash media slot
(optional)
Connects an external SD memory card
for the optional iDRAC6 Enterprise card.
2 1 3 4 6 9 10 11 12 8 7 5
