Installing System Components

81

Front Bezel (Optional)

Removing the Front Bezel

1 Unlock the keylock at the left end of the bezel.
2 Lift up the release latch next to the key lock.
3 Rotate the left end of the bezel away from the front panel.
4 Unhook the right end of the bezel and pull the bezel away from

the system. See Figure 3-2.

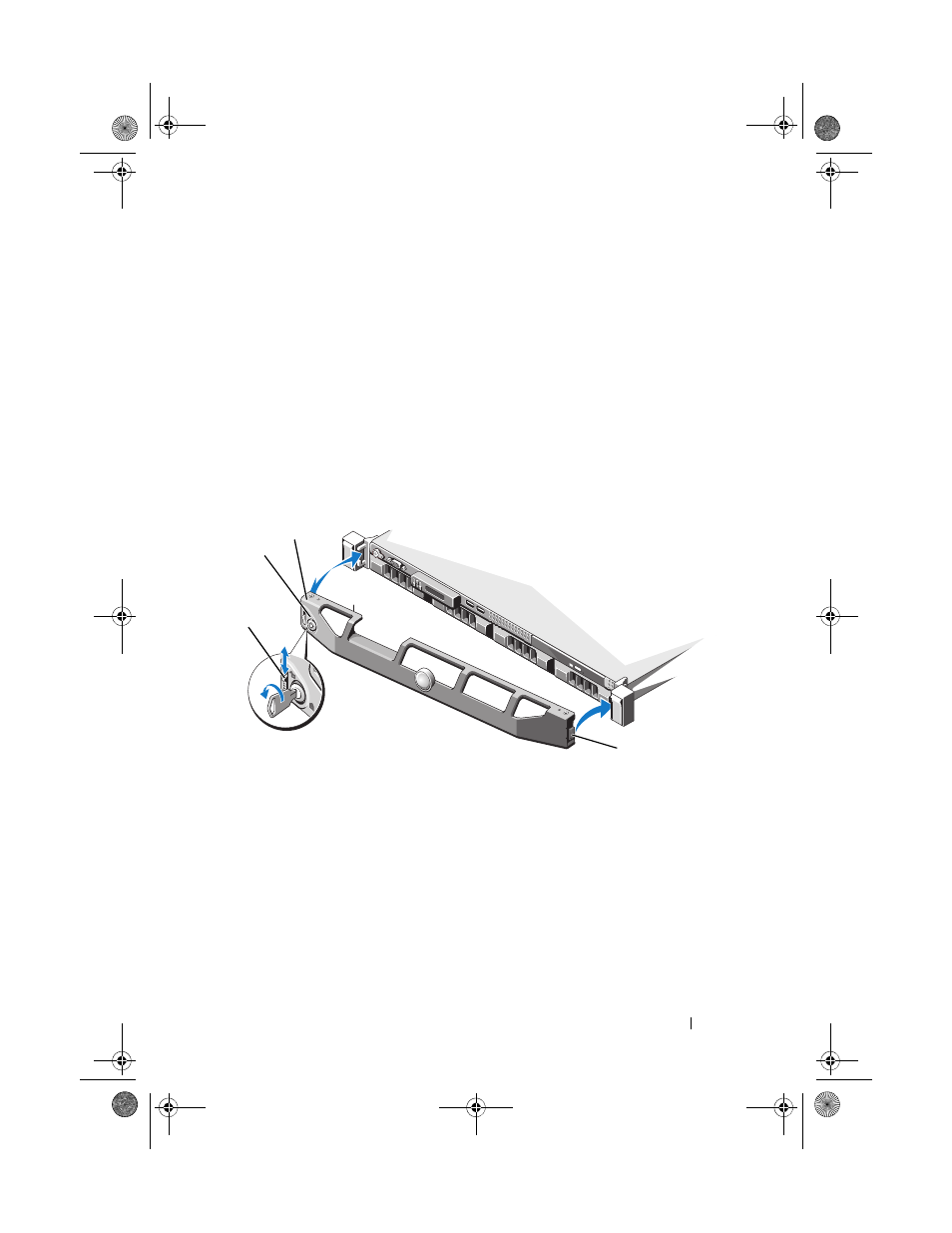

Figure 3-2. Removing and Replacing the Front Bezel

Installing the Front Bezel

1 Hook the right end of the bezel onto the chassis.
2 Fit the free end of the bezel onto the system.
3 Secure the bezel with the keylock. See Figure 3-2.

1

release latch

2

keylock

3

bezel

4

hinge tab

3

2

1

4
