Jumpers and Connectors 173
6
Jumpers and Connectors
This section provides specific information about the system jumpers. It also
provides some basic information on jumpers and switches and describes the
connectors on the various boards in the system.
System Board Jumpers
Figure 6-1 shows the location of the configuration jumpers on the system
board. Table 6-1 lists the jumper settings.

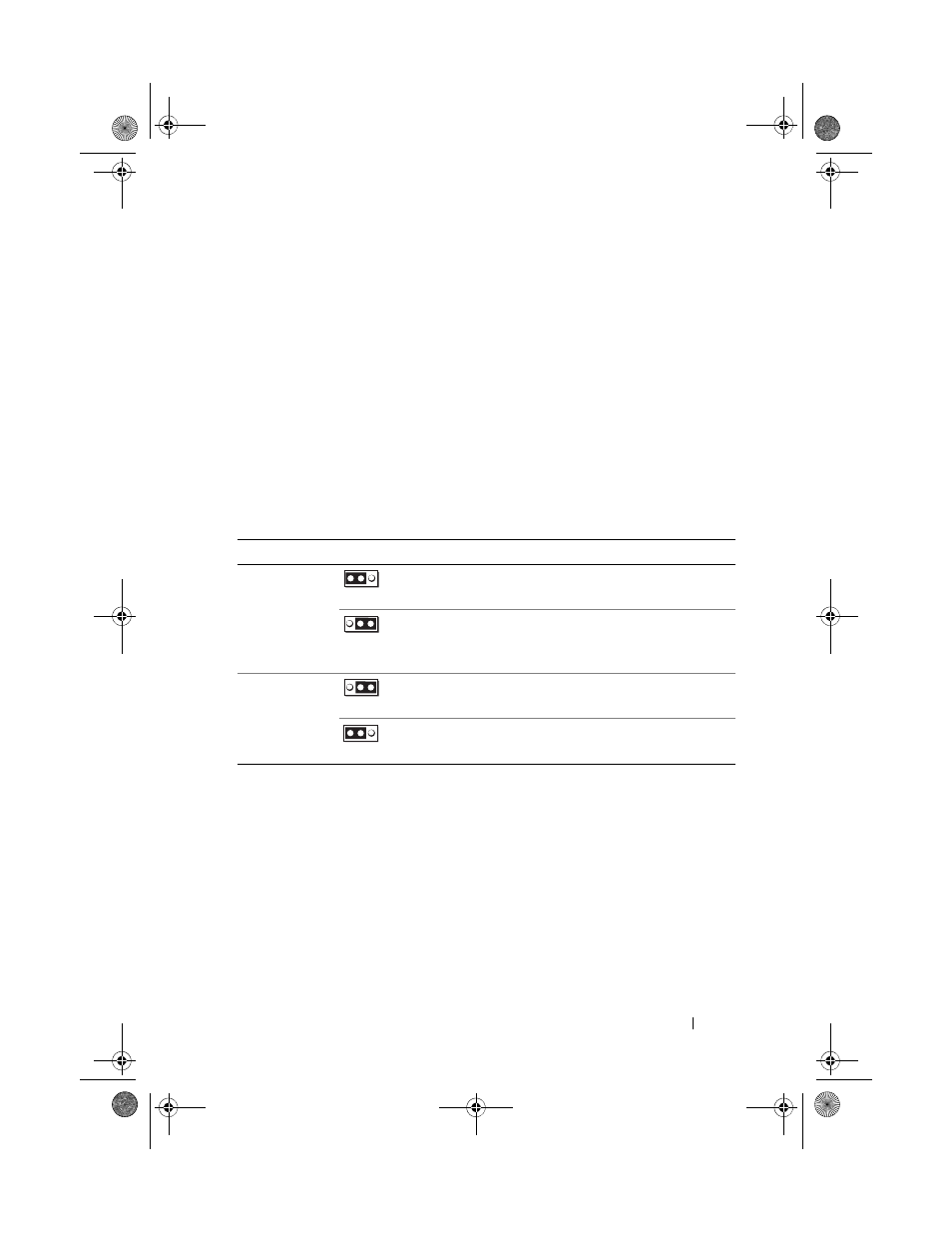

Table 6-1. System Board Jumper Settings
Jumper Setting Description
PWRD_EN (default) The password feature is enabled
(pins 2–4)
The password feature is disabled
and
iDRAC6 local access is unlocked at the next
AC power cycle
(pins 4– 6)
NVRAM_CLR (default) The configuration settings are retained at
system boot (pins 3–5)
The configuration settings are cleared at the
next system boot (pins 1–3)
