Installing System Components 111
Power Distribution Board Shroud
The power distribution board shroud covers the power distribution board and
provides air flow to the power supply units. Airflow is facilitated by the
cooling fan modules and the power distribution board shroud directs the
airflow to the power supply units.
Removing the Power Distribution Board Shroud
CAUTION: Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is
not covered by your warranty. Read and follow the safety instructions that
came with the product.
CAUTION: Never operate your system with the power distribution board shroud
removed. The system may get overheated quickly, resulting in shutdown and loss
of data.
1 Open the system. See "Opening the System" on page 82.
2 Grasping the shroud by its edges near the blue tabs, gently remove the
shroud straight up and away from the system. See Figure 3-17.

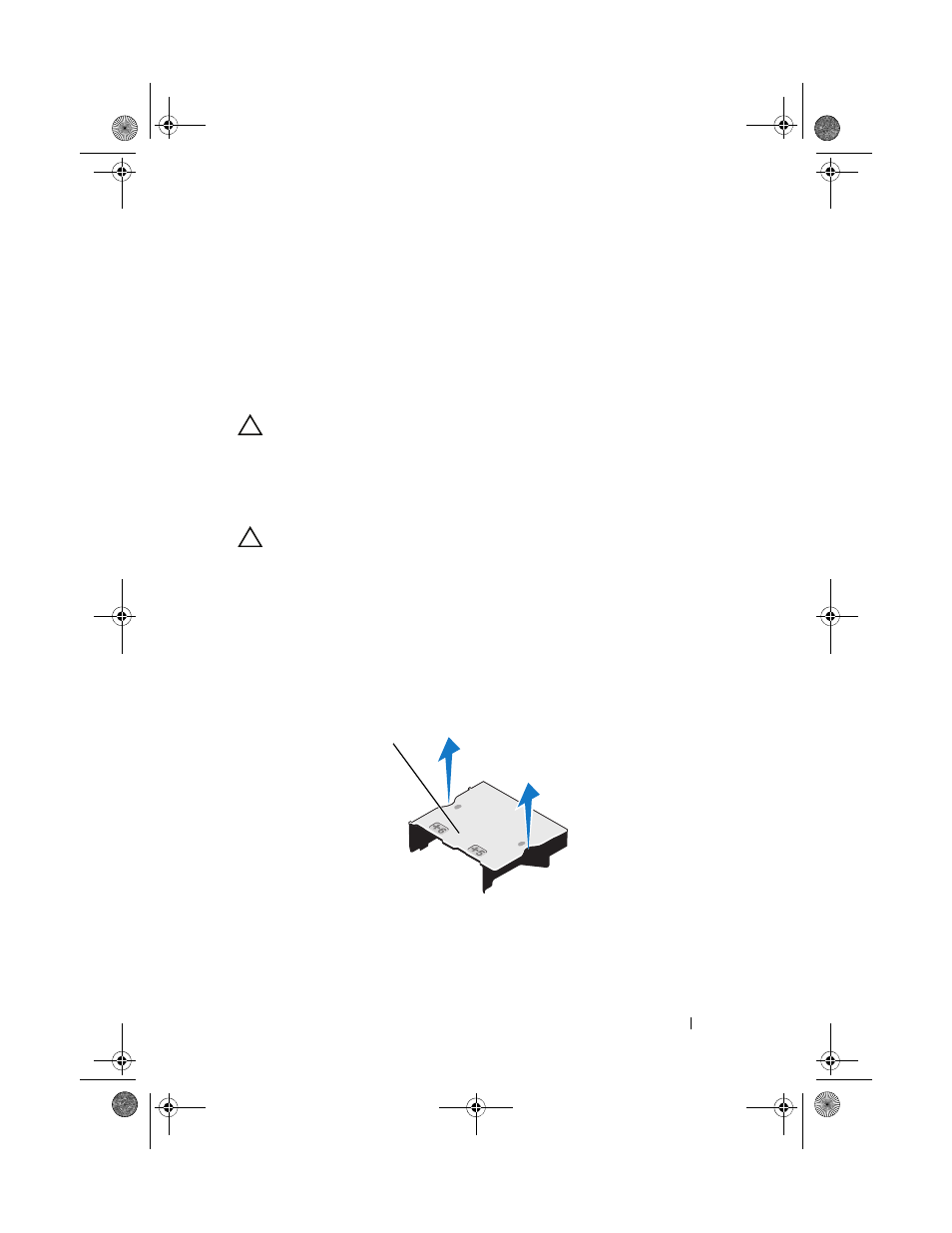

Figure 3-17. Removing and Installing the Power Distribution Board Shroud
1 power distribution board shroud
1
