134 Installing System Components

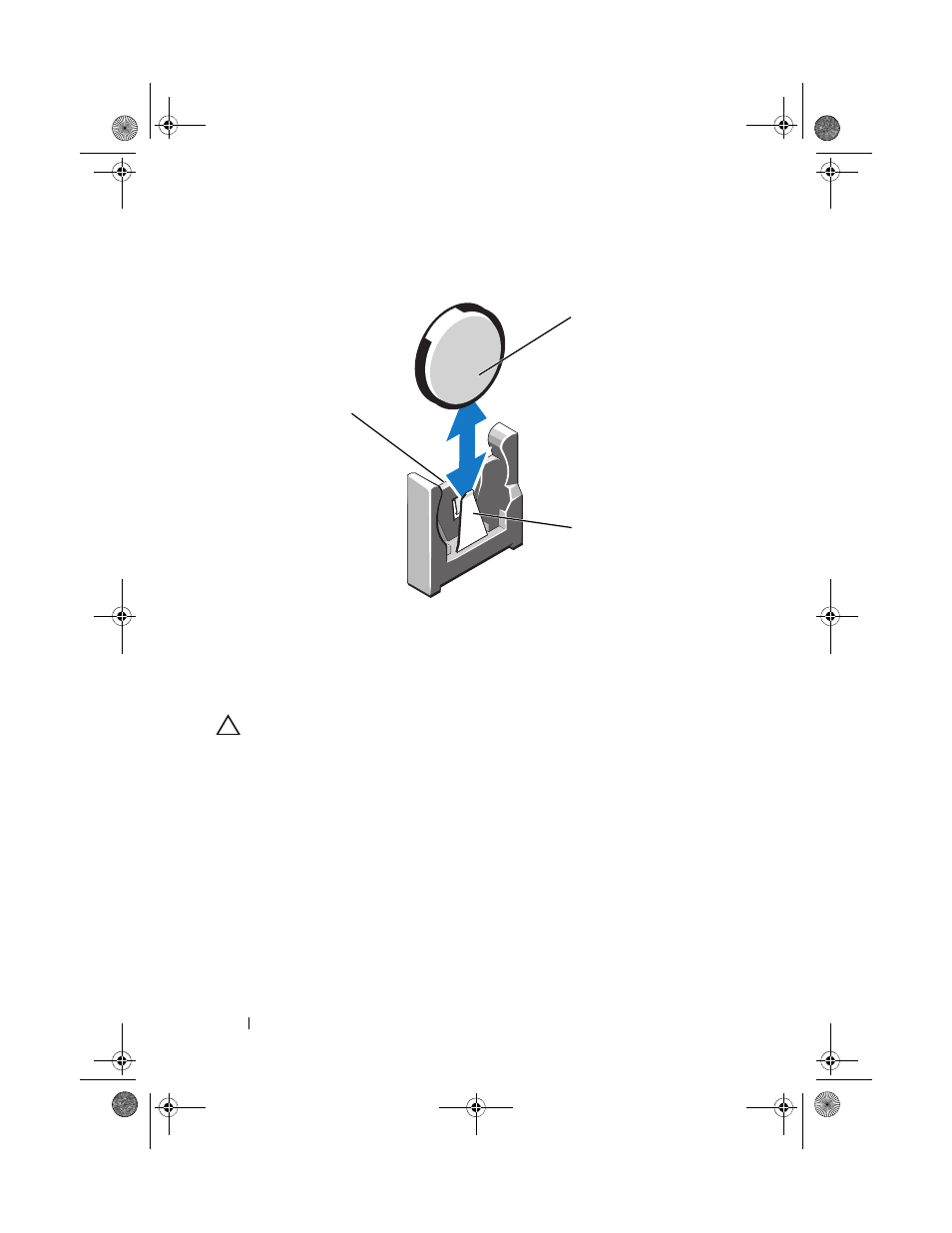

Figure 3-27. Replacing the System Battery
5 Locate the battery socket. See "Jumpers and Connectors" on page 173.
CAUTION: To avoid damage to the battery connector, you must firmly support the
connector while installing or removing a battery.
6 Support the battery connector by firmly holding the positive side of the
connector.
7 Press the battery toward the negative side of the connector and lift it up
out of the securing tab at the negative side of the connector.
8 To install the new system battery, support the battery connector by
pressing down firmly on the positive side of the connector.
9 Hold the battery with the "+" facing the plastic connector on the system
board and slide it under the securing tabs.
10 Press the battery straight down into the connector until it snaps into place.
1 positive side of battery connector 2 system battery
3 negative side of battery connector
2
3
1
