104 Installing System Components

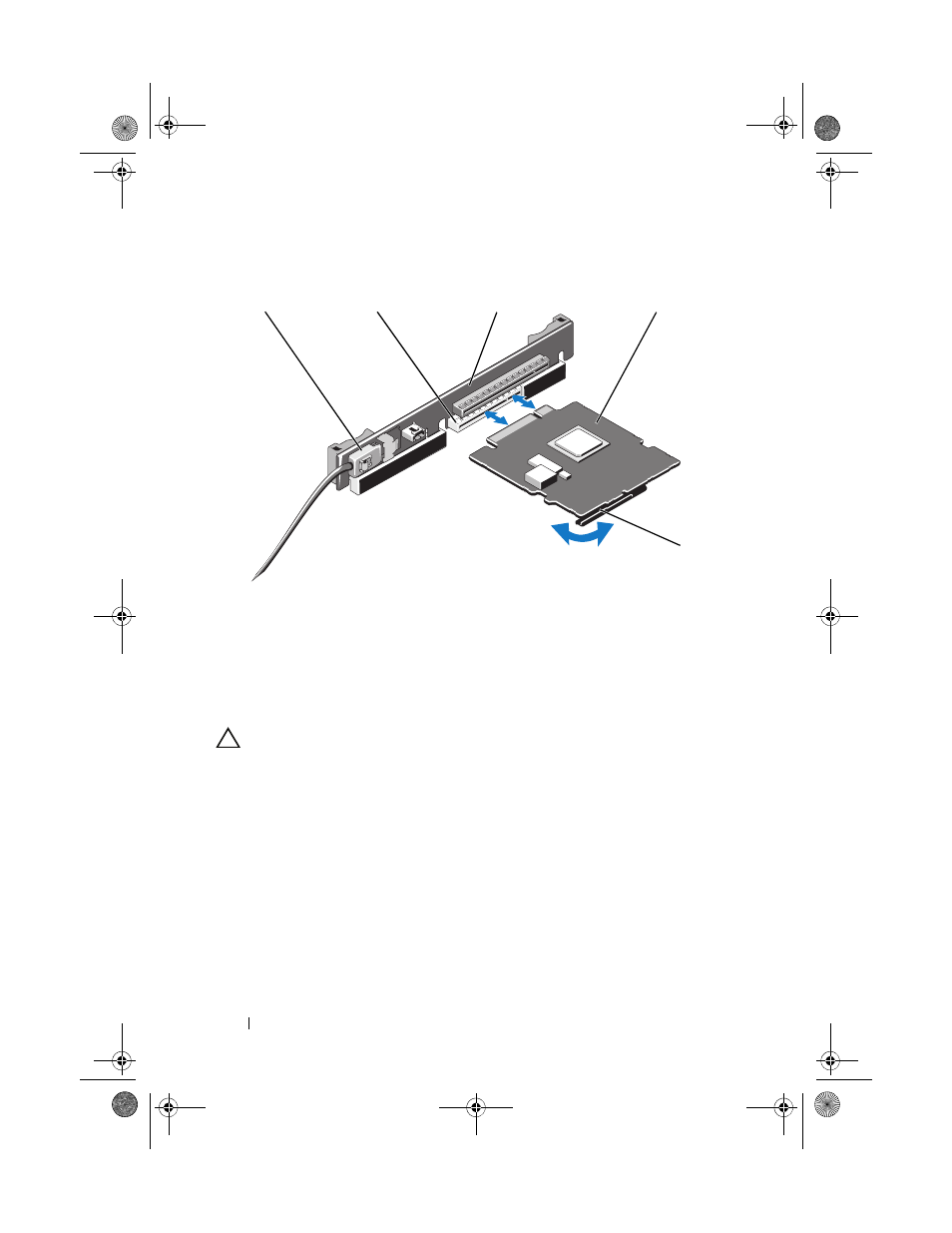

Figure 3-13. Removing and Installing the Integrated Storage Controller Card
Installing the Integrated Storage Controller Card
CAUTION: Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is
not covered by your warranty. Read and follow the safety instructions that
came with the product.
1 Turn off the system, including any attached peripherals, and disconnect
the system from the electrical outlet.
2 Open the system. See "Opening the System" on page 82.
3 If applicable, remove the expansion card. See "Integrated Storage
Controller Card" on page 103.
1 SAS data cable connector 2 storage connector
3 expansion-card riser 4 integrated storage controller card
5 release lever (blue)
2 1 3 4
5
