Page 84
2.
Select the desired settings for each drive listed (either SCSI, SAS, or Fibre
Channel). See Figure 4-31.
3.
Click one of the following:
v
Refresh
- to update the current screen
v
Submit
- to apply the changes made to the screen
Entering Library Network Settings
This page shows the current network configuration of the library and allows
modification to the configuration. When a change is requested, a pop-up box
confirms the request.
1.
Click Configure Library > Network in the left navigation pane, to display the
Network
page.
Important:
Do not click the Submit button until all changes have been made
to the Network page. Once the Submit button has been clicked, no
other changes can be made until after the library has applied the
current changes.
a77ug095
Topology
FC-AL Loop ID

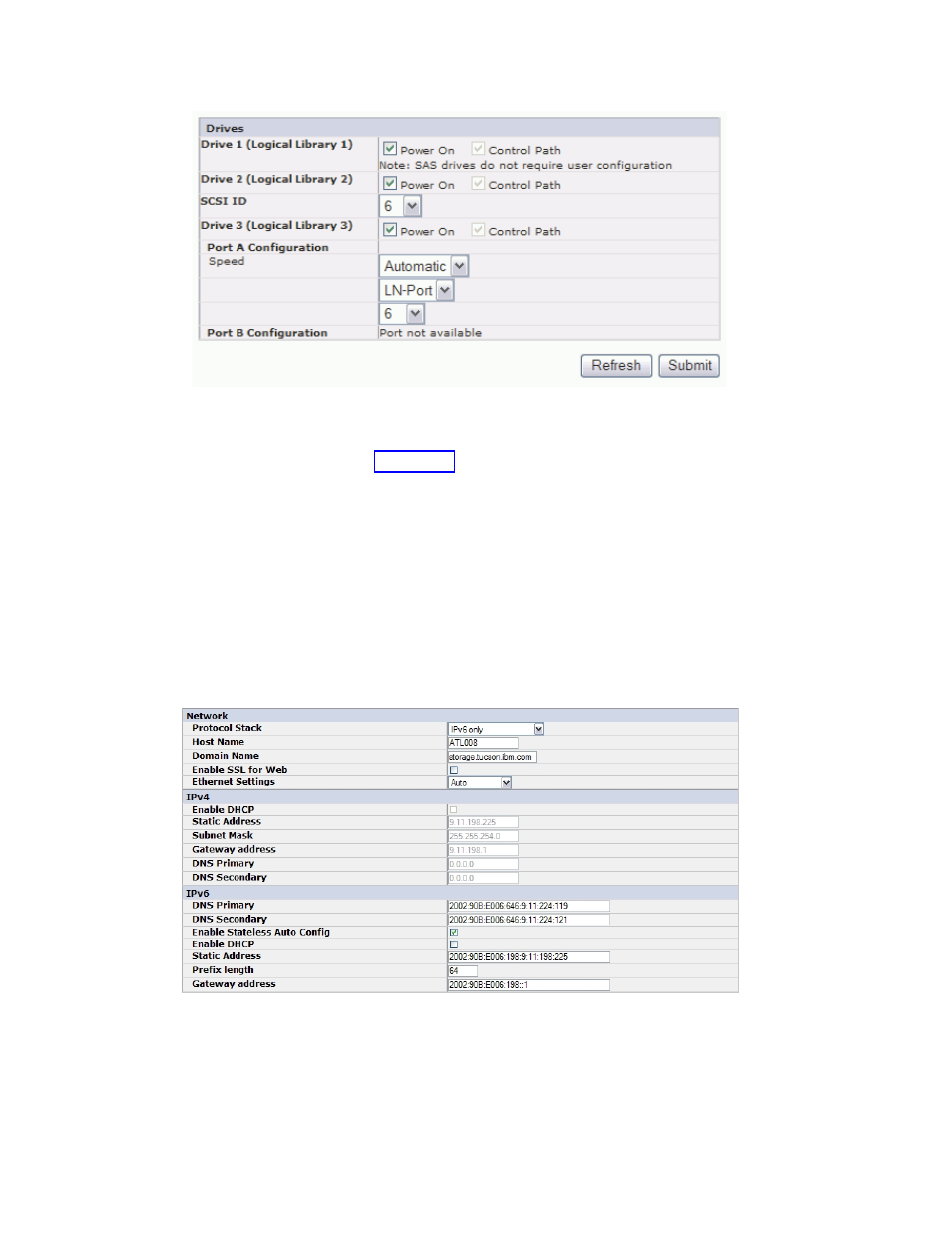

Figure 4-31. The Configure Library: Drive screen
a77ug07
4
Figure 4-32. Configure Library: Network Page
4-30
Dell PowerVault TL2000 Tape Library and TL4000 Tape Library User's Guide
