Note: 2U has a single right-side magazine.
Under Magazine choose one of the following to see a graphical representation of
the cartridge magazine(s). Slots containing cartridges will be highlighted.
Monitor
Magazines Drive (n)
Upper Right Upper Left
(Drive
status)
Lower Left Lower Right
Inventory
a77ug0
3
6
(Graphic of left
magazine)
(Graphic of right
magazine)

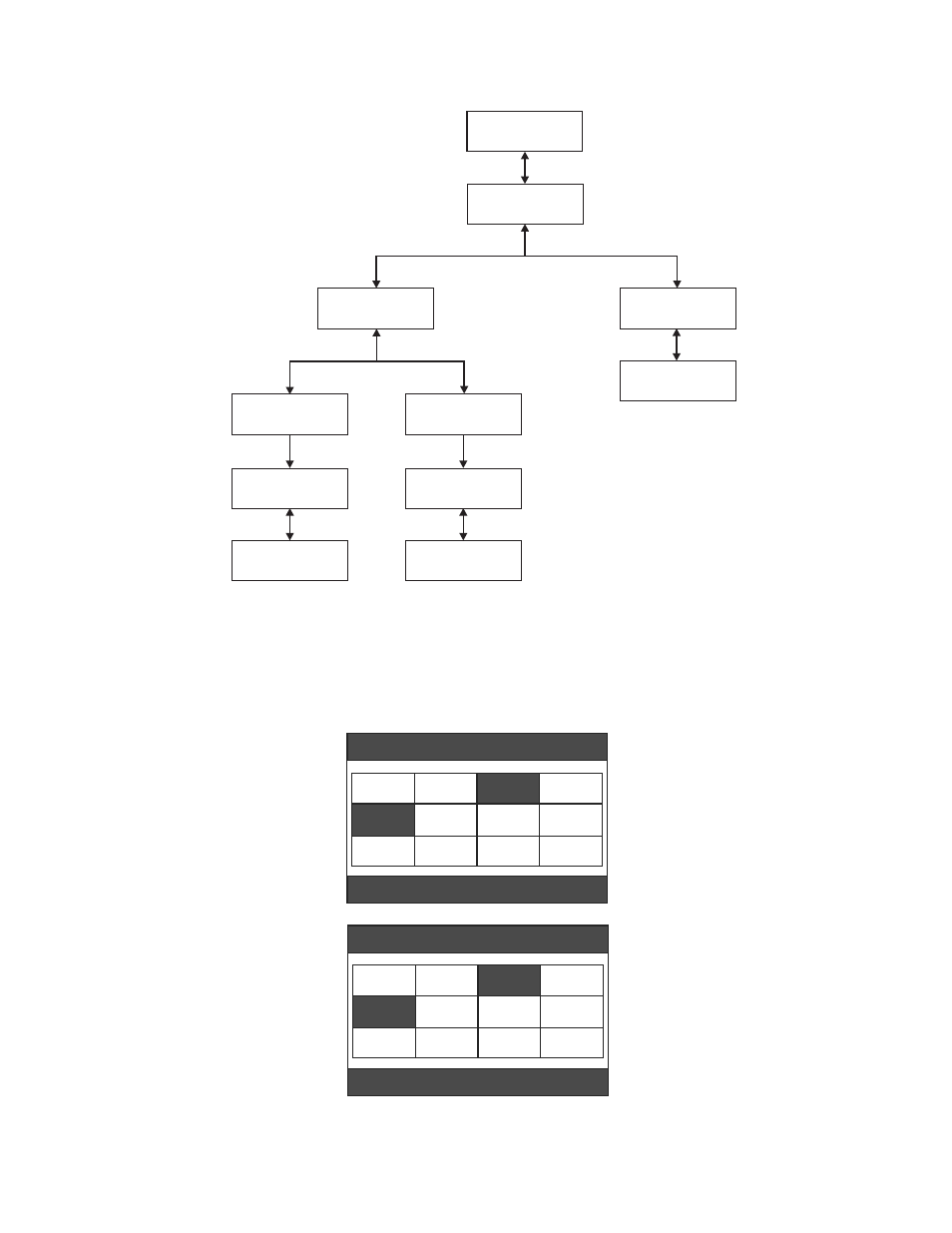

Figure 5-6. Example of a 4U Monitor: Inventory menu
Magazines > Lower Left
Idle Rand
I/O 3 I/O 3 7
5
1 3 2
6
9
4 I/O 2
8
I/O 1
Magazines > Upper Left
Idle Rand
18 19 19
16
11 13 13 12 12
17 17
21 21
15 15 14
20
10 10
a77ug
166
Figure 5-7. Overview of inventoried cartridges: Left magazines of a 4U Library
Chapter 5. Operations 5-15
