5. Store the lock and label on the back panel of the replacement library enclosure
(see Figure 10-15).
6. Proceed to “Installing your drive in the replacement library enclosure.”
Installing your drive in the replacement library enclosure
Important: It is important to install the drives from the defective library into the
same positions in the replacement library enclosure to maintain your
current library configuration.
a77ug
1
9
5

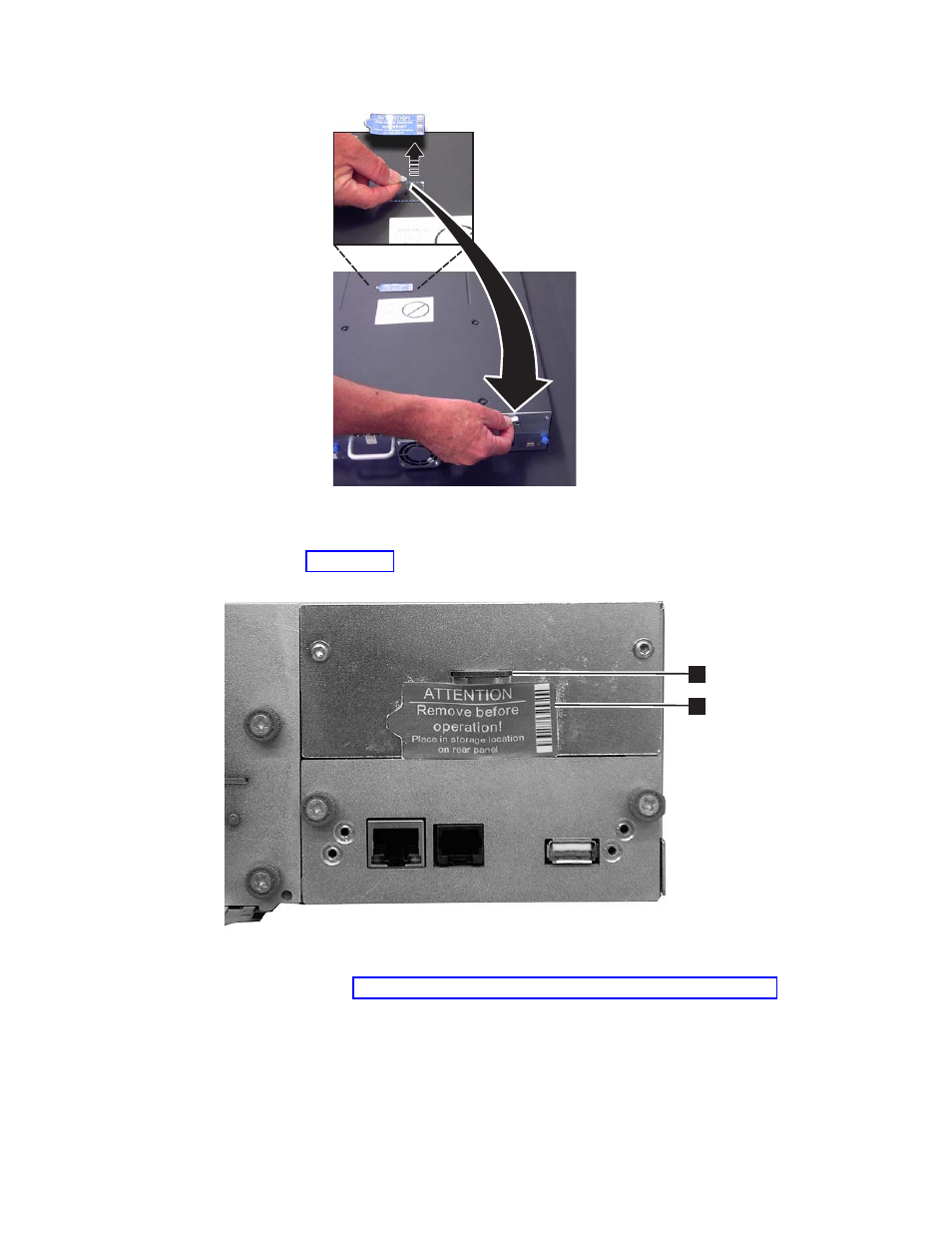

Figure 10-14. Removing the shipping label and lock from the top of the library and storing on the rear panel
1
2
a77ug019
Figure 10-15. Library shipping lock and label storage location on the real panel of the library
10-16 Dell PowerVault TL2000 Tape Library and TL4000 Tape Library User's Guide
