Preserve Sign
When this checkmark is set, the X and Y distances are computed as distance offsets. These distance offsets
are represented by signed numbers. Negative numbers mean distance offset is toward the origin (0,0), positive
numbers mean distance offset is away from origin.
Additional Measure Tool Tabs

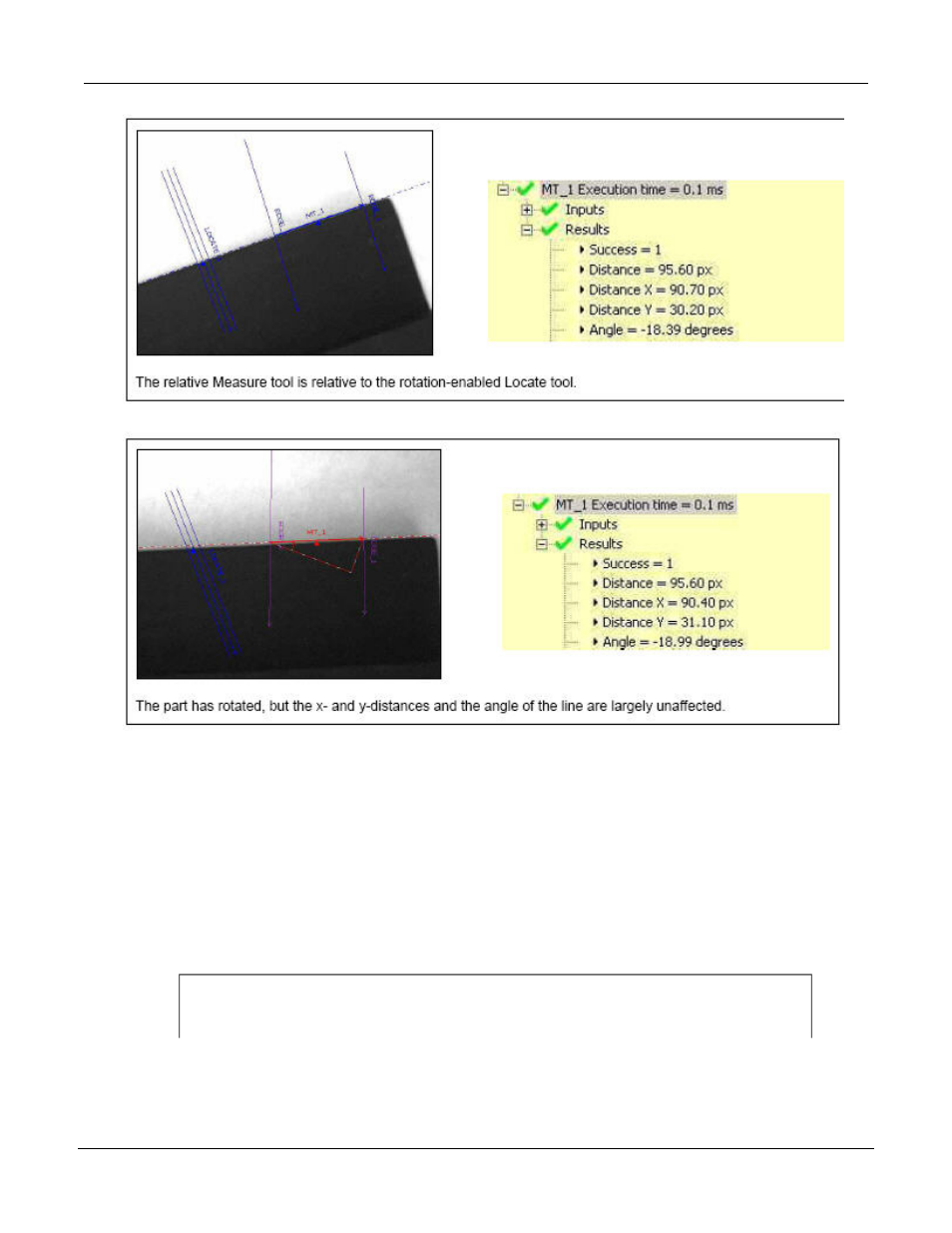

Measure Tool Locate Tab
Use the drop-down list to select either to Measure From the Reference Point or the Current Point. Click
on page 143 for more information about the Measure tool.
Locate Tab
155
Banner Engineering Corp. - Minneapolis, MN USA - www.bannerengineering.com
Tel: 763.544.3164
P/N 000000
PresencePLUS Software Tools
7/2009
